Lower Arm Vertical Link: Installation

  1. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

    Torque:

    1. 76 lb.ft (103 Nm)
    2. 129 lb.ft (175 Nm)

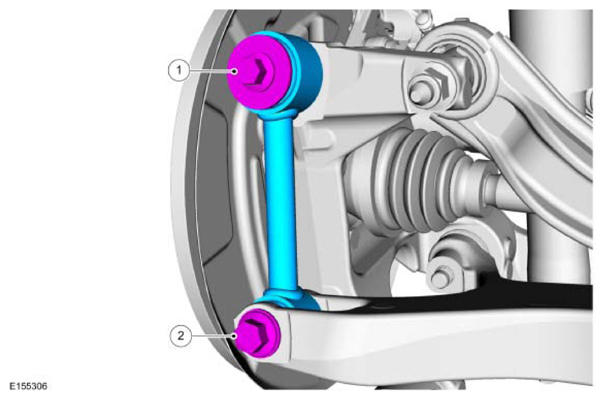

      G08632105
  2. Refer to: WHEEL AND TIRE .
