Fuel Lines - 2.5L: Removal
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- 2.
Remove the Fuel Tank. Refer to: Fuel Tank - FWD .
- 3.
- 1.
Disconnect the brake lines.Torque
: 133 lb.in (15 Nm)
- 2.
Disconnect the electrical connector and fuel line retainer.
- 1.
- 4.

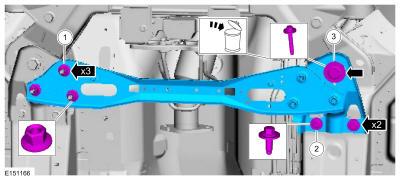

- 1.
Remove the nuts.Torque
: 33 lb.ft (45 Nm)
- 2.
Remove the bolts.Torque
: 44 lb.ft (60 Nm)
- 3.NOTE: Discard the specified component. Follow local disposal regulations.
Remove the bolt and the cross member.
Torque:
Stage 1: 76 lb.ft (103 Nm)
Stage 2: 270°
- 1.
- 5.
Disconnect the brake lines.Torque
: 133 lb.in (15 Nm)
- 6.
Remove the Air Cleaner. Refer to: Air Cleaner .
- 7.NOTE: Some residual fuel may remain in the fuel tubes after releasing the fuel system pressure. When disconnecting or removing any fuel tubes, carefully drain any residual fuel into a suitable container.

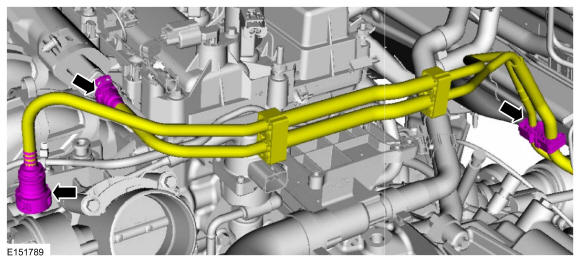

Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- 8.
Disconnect the fuel line retainers and remove the fuel lines from the vehicle.
