With Blind Spot Information System (BLIS)®

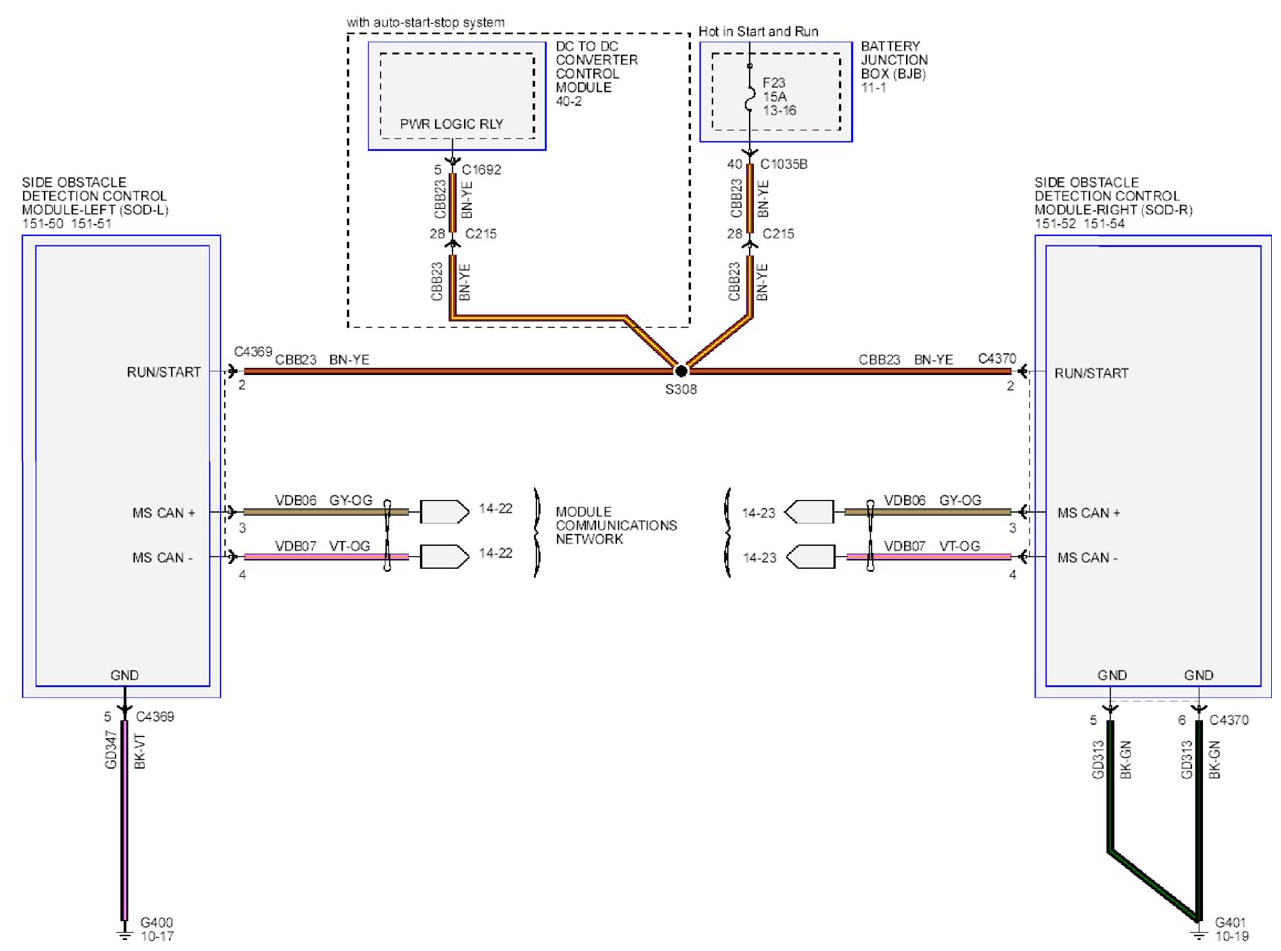

Fig 1: Vehicle Emergency Messaging System - Wiring Diagram - With Blind Spot Information System (BLIS)® (1 Of 3)
G09264957Courtesy of FORD MOTOR CO.

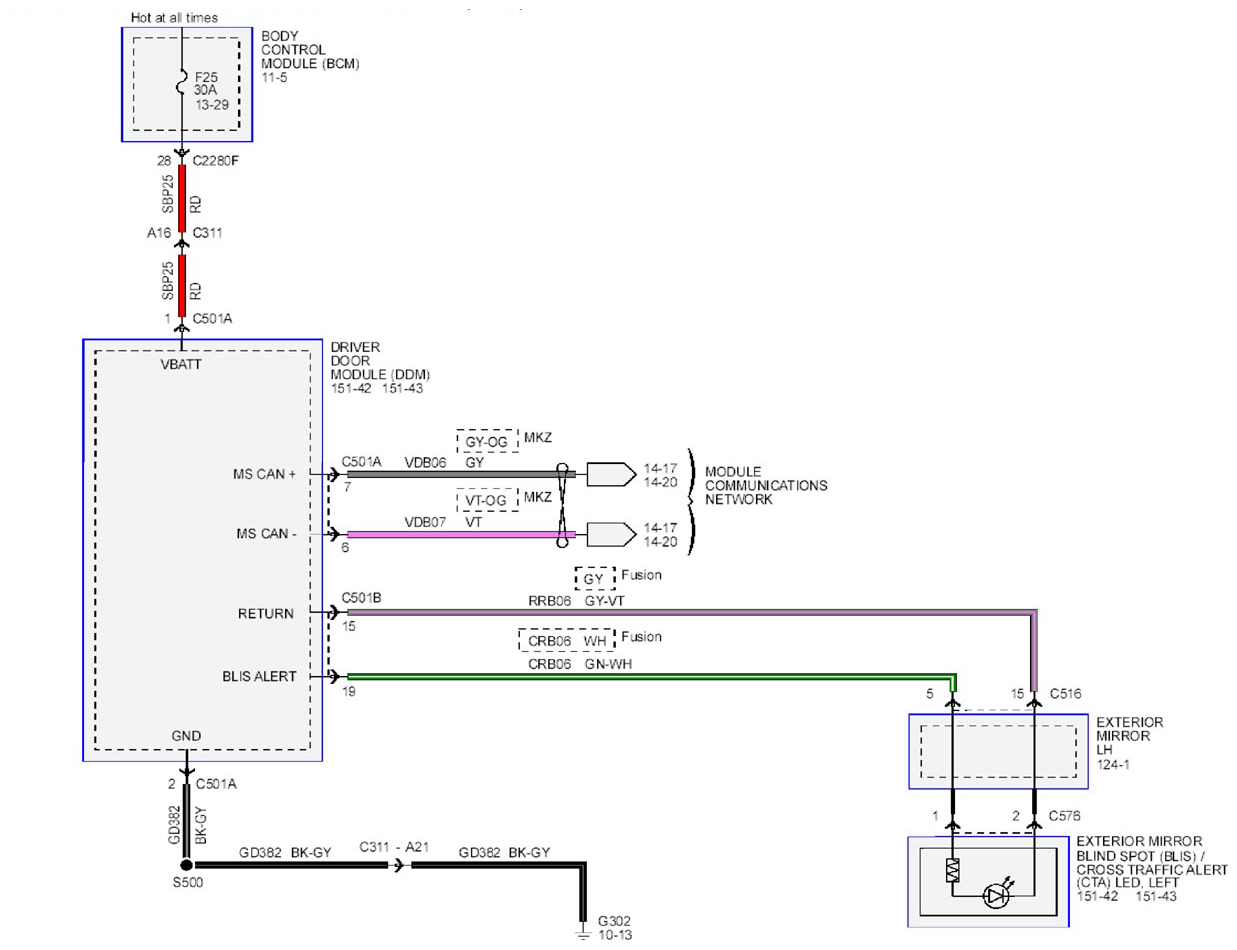

Fig 2: Vehicle Emergency Messaging System - Wiring Diagram - With Blind Spot Information System (BLIS)® (2 Of 3)
G09264958Courtesy of FORD MOTOR CO.

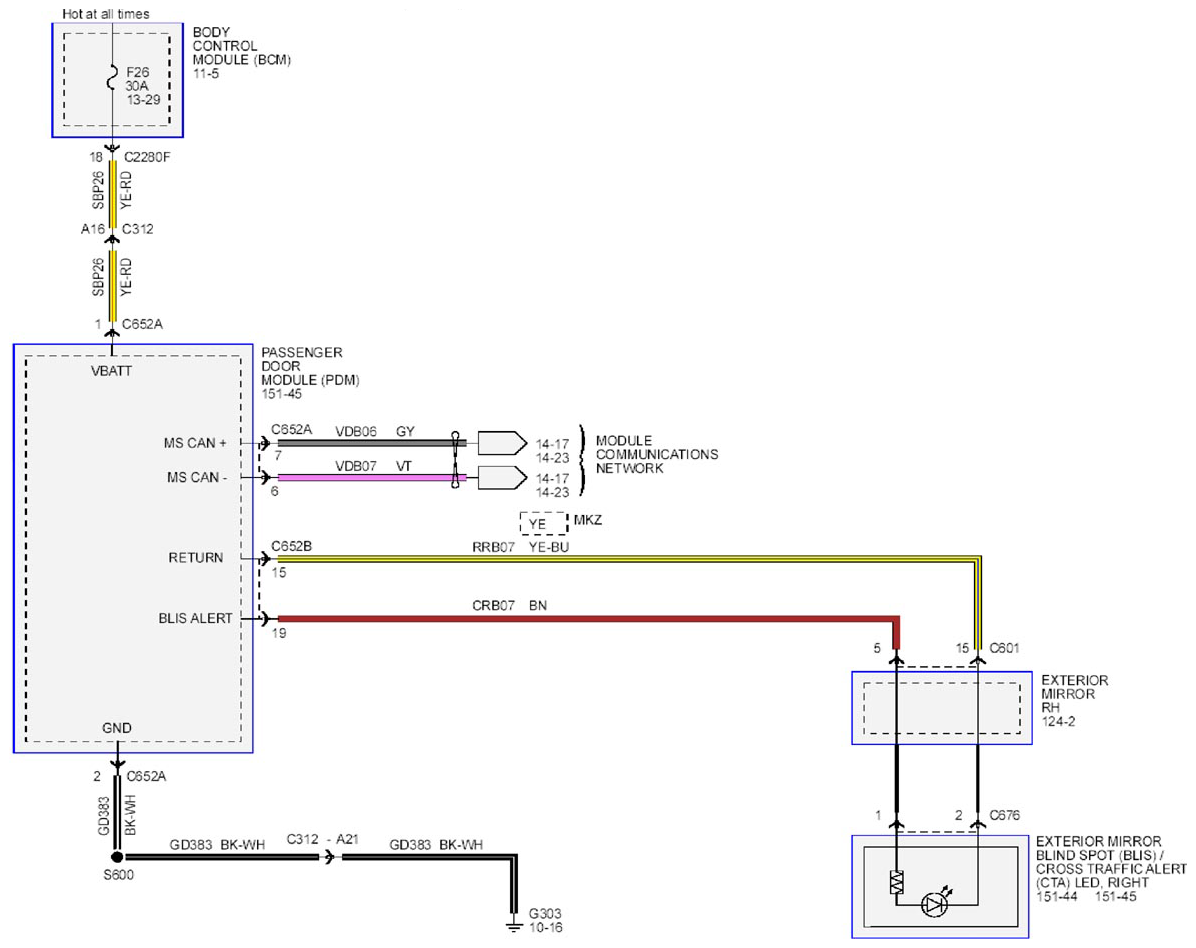

Fig 3: Vehicle Emergency Messaging System - Wiring Diagram - With Blind Spot Information System (BLIS)® (3 Of 3)
G09264959Courtesy of FORD MOTOR CO.
