Turn Signal/Stop/Hazard Lamps: Notes

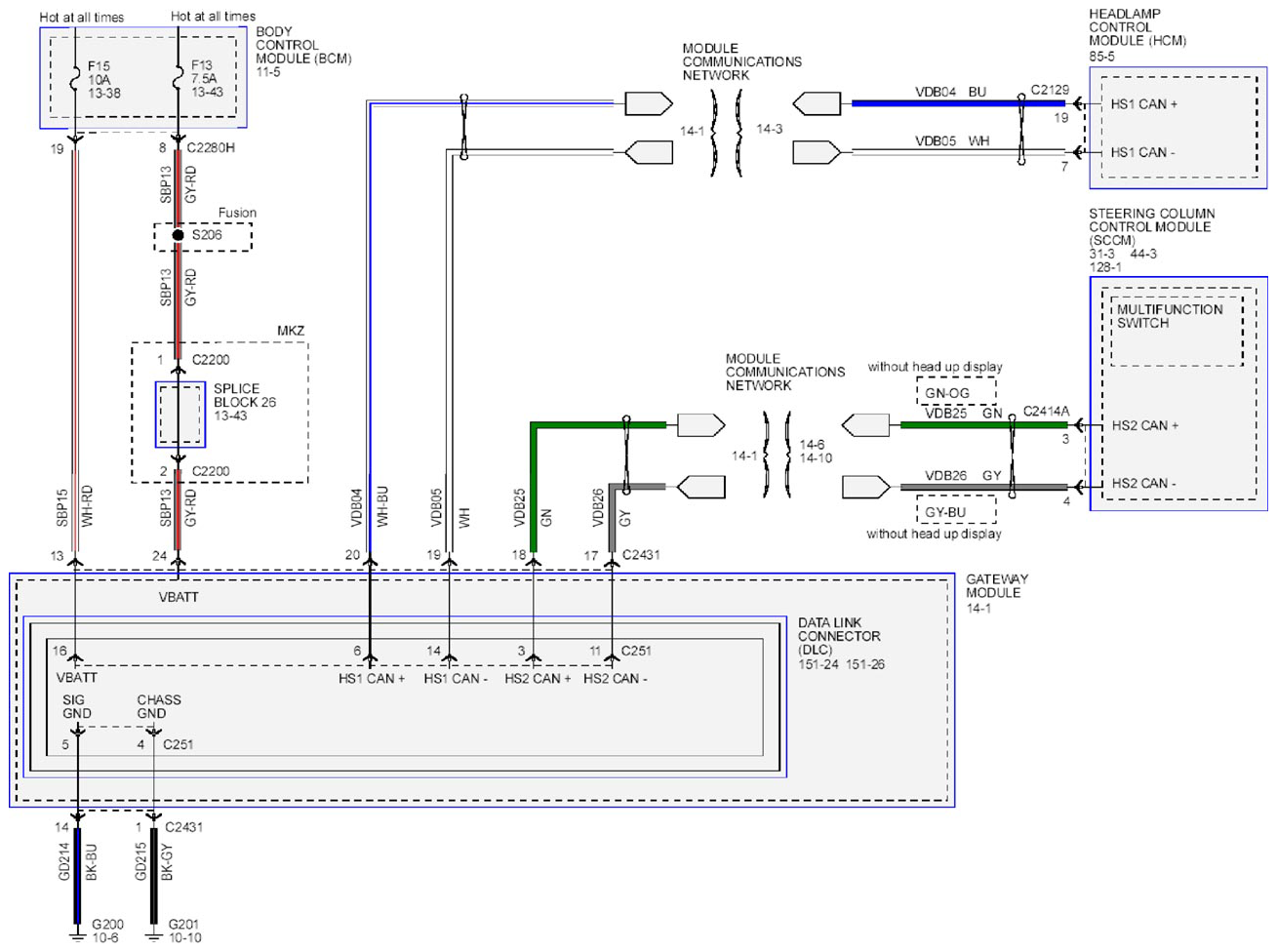

Fig 1: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (1 Of 4)
G09264844Courtesy of FORD MOTOR CO.

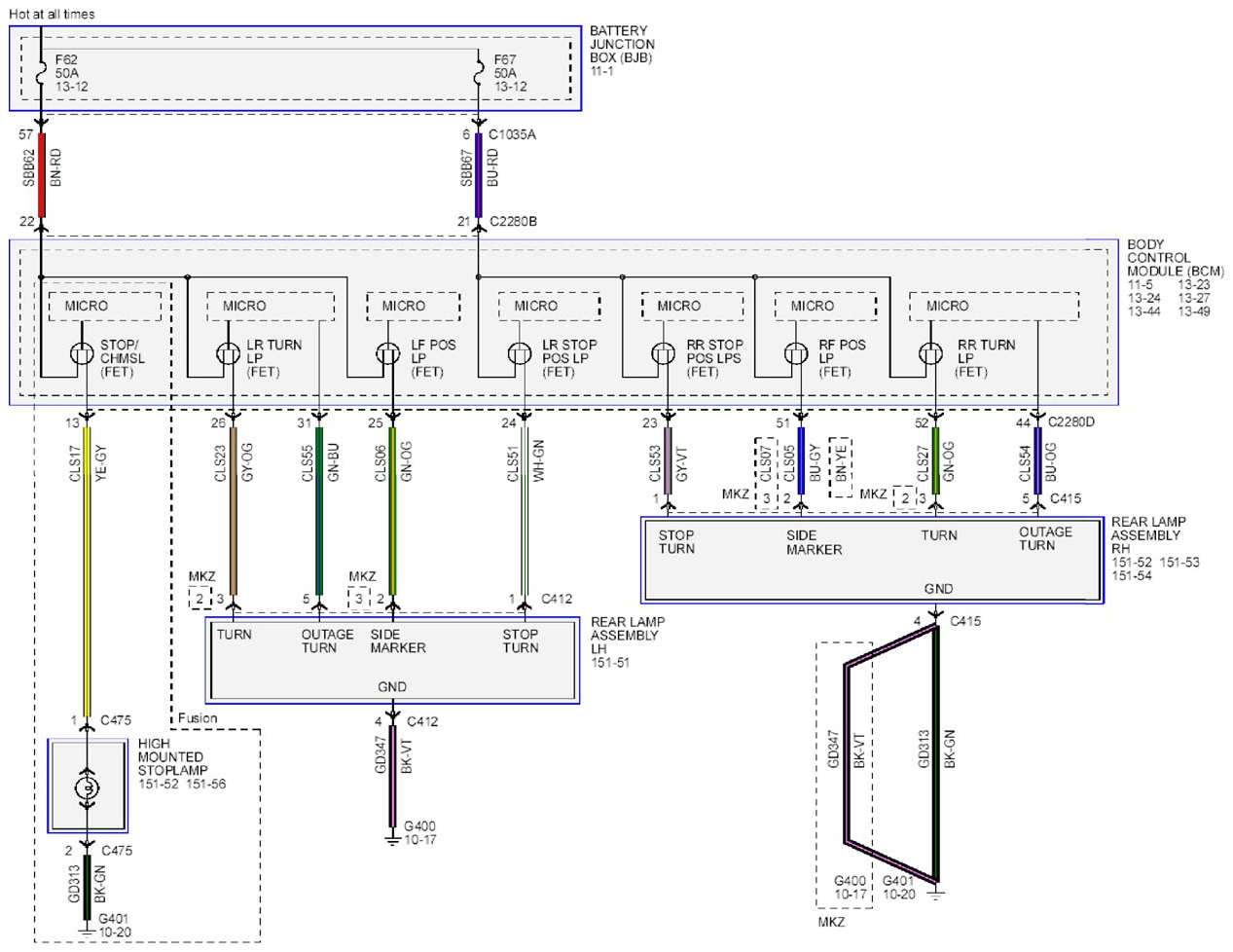

Fig 2: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (2 Of 4)
G09264847Courtesy of FORD MOTOR CO.

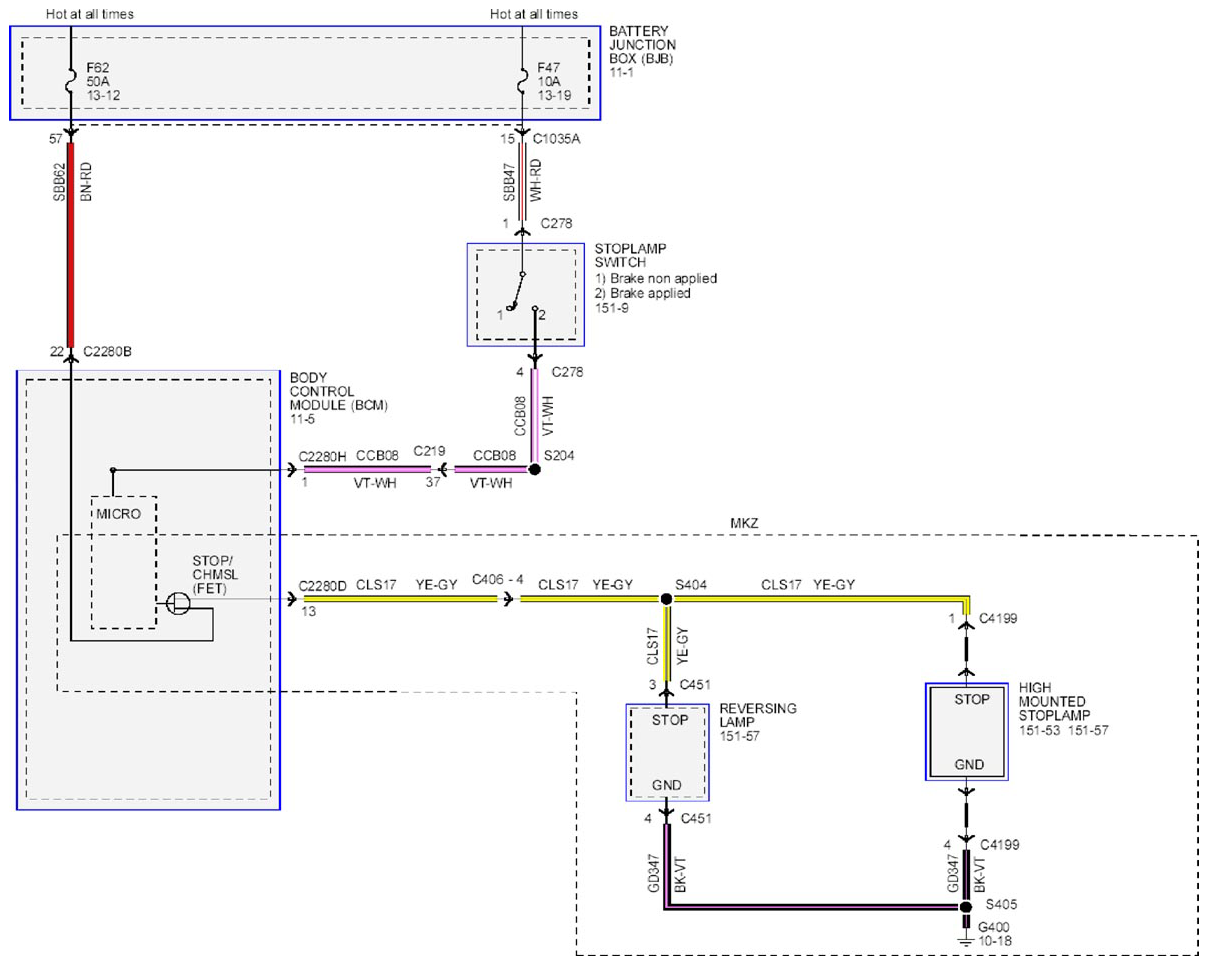

Fig 3: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (3 Of 4)
G09264848Courtesy of FORD MOTOR CO.

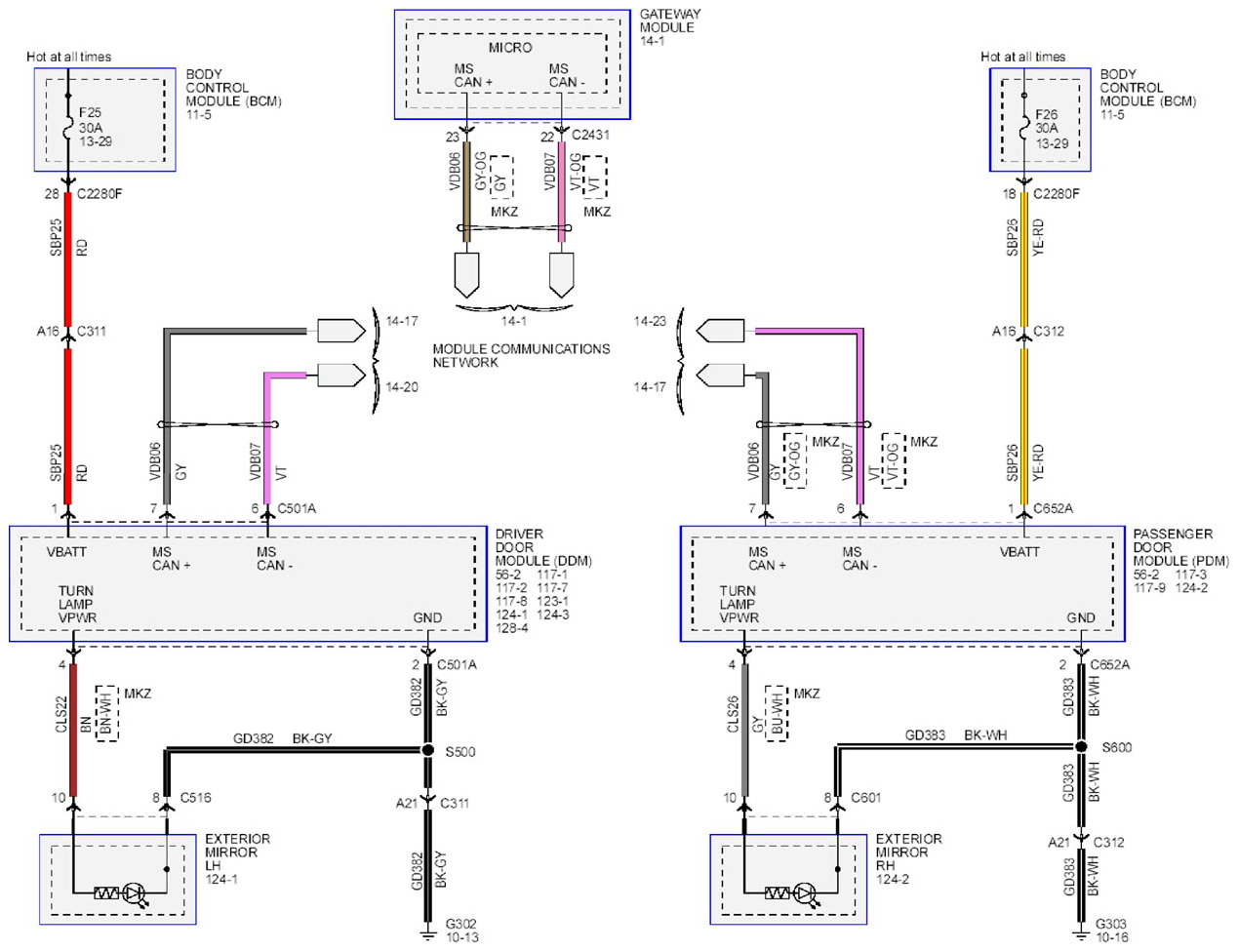

Fig 4: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (4 Of 4)
G09264849Courtesy of FORD MOTOR CO.
