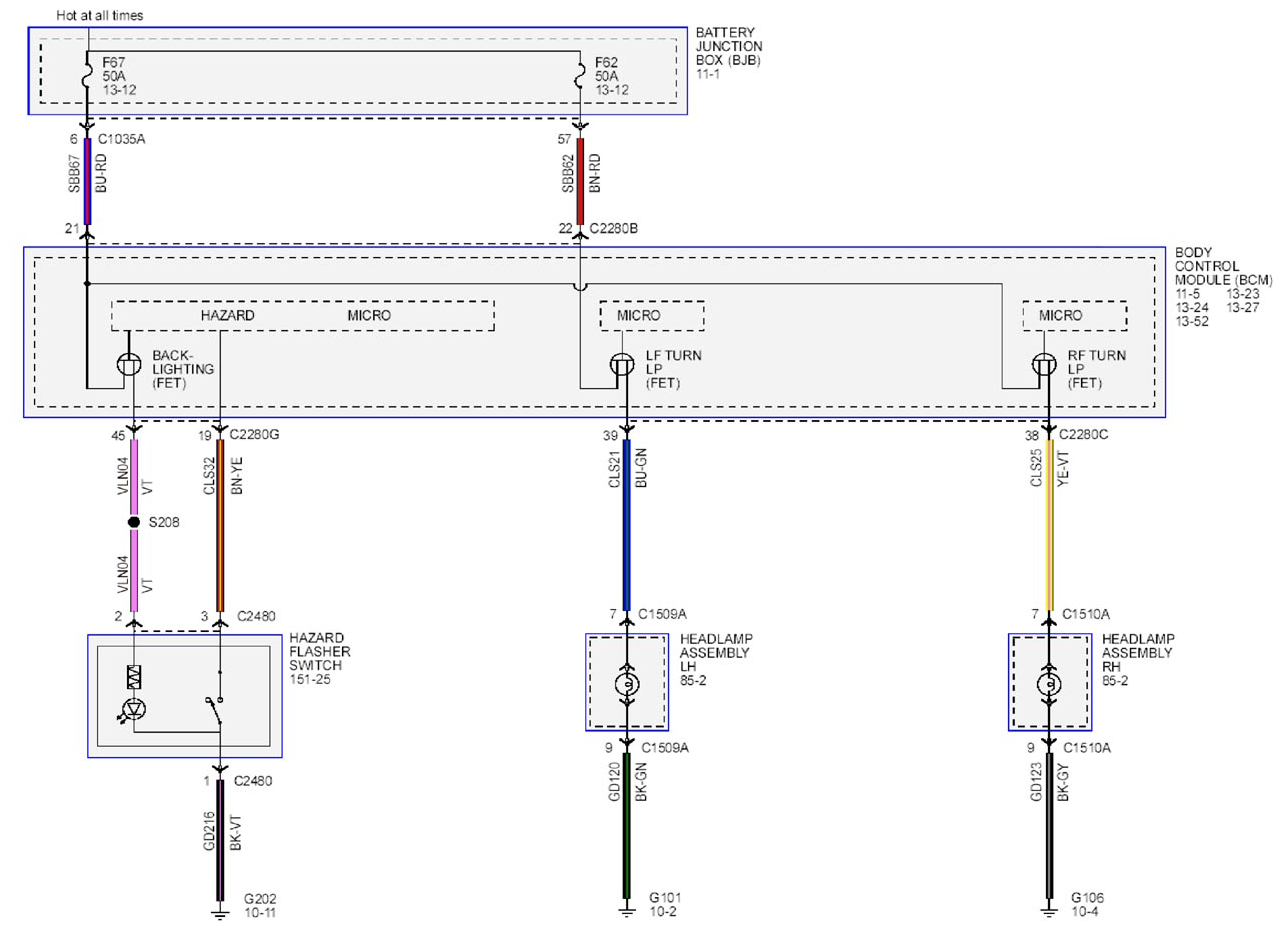

Home >> Ford >> 2014 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Turn Signal/Stop/Hazard Lamps >> Halogen Headlamps
