Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Transmission Controls - 6F50
>>
Notes
Transmission Controls - 6F50: Notes

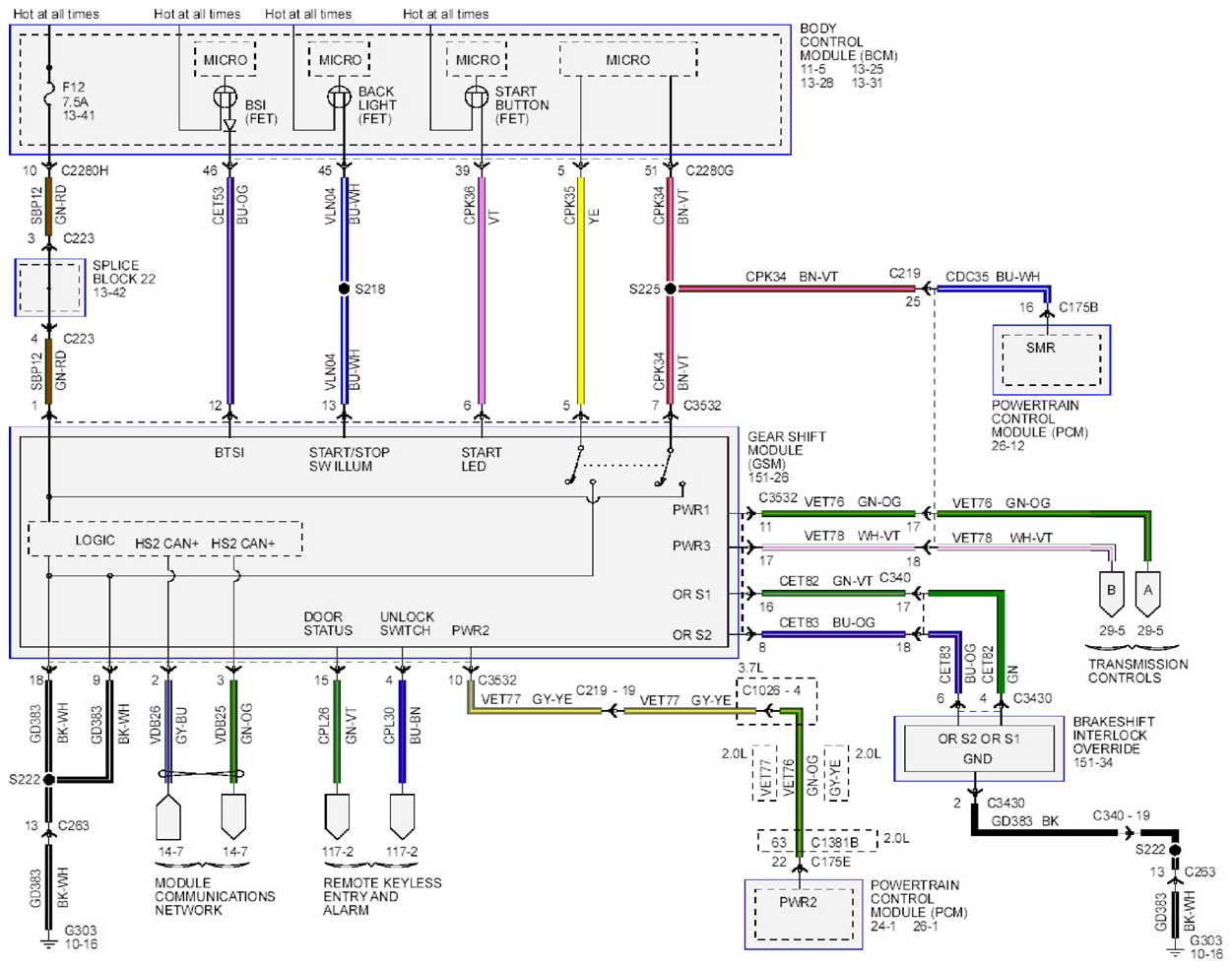

Fig 1: Transmission Controls - 6F50 - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

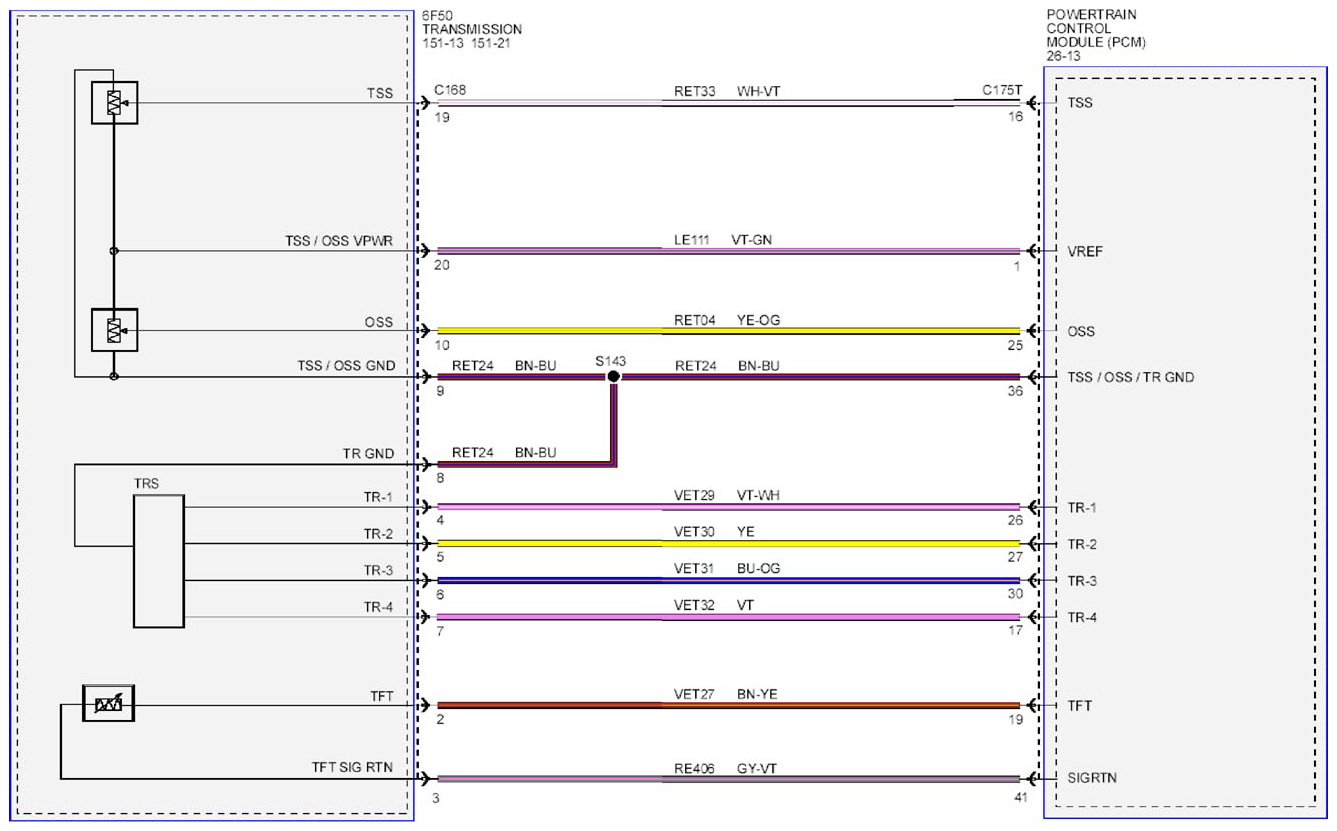

Fig 2: Transmission Controls - 6F50 - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.

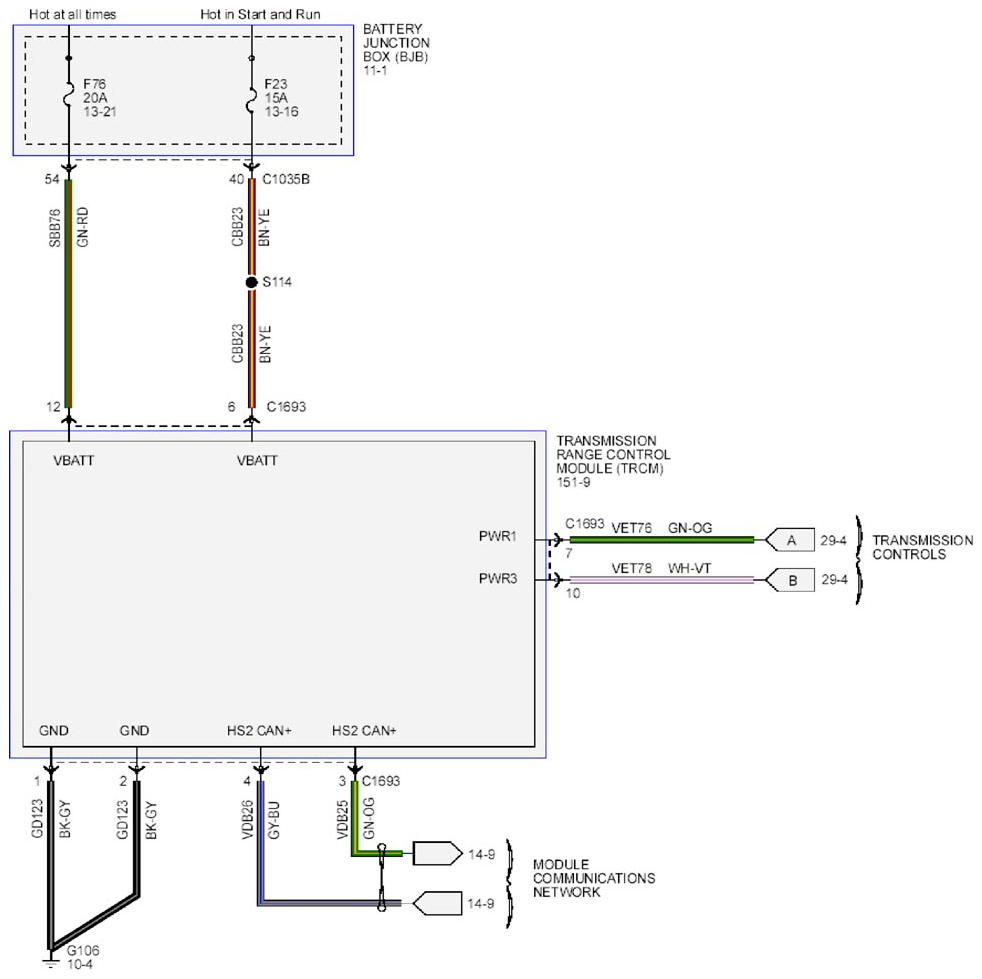

Fig 3: Transmission Controls - 6F50 - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

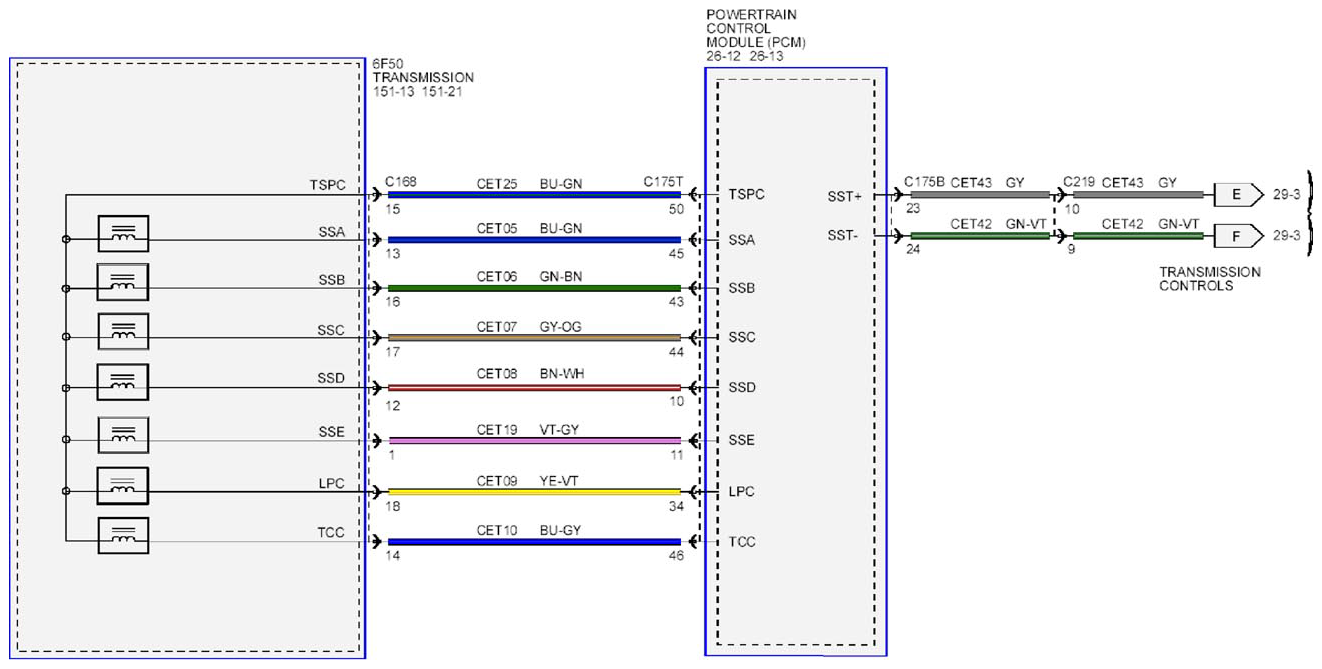

Fig 4: Transmission Controls - 6F50 - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
