Transmission Controls - 6F35
Transmission Controls - 6F35

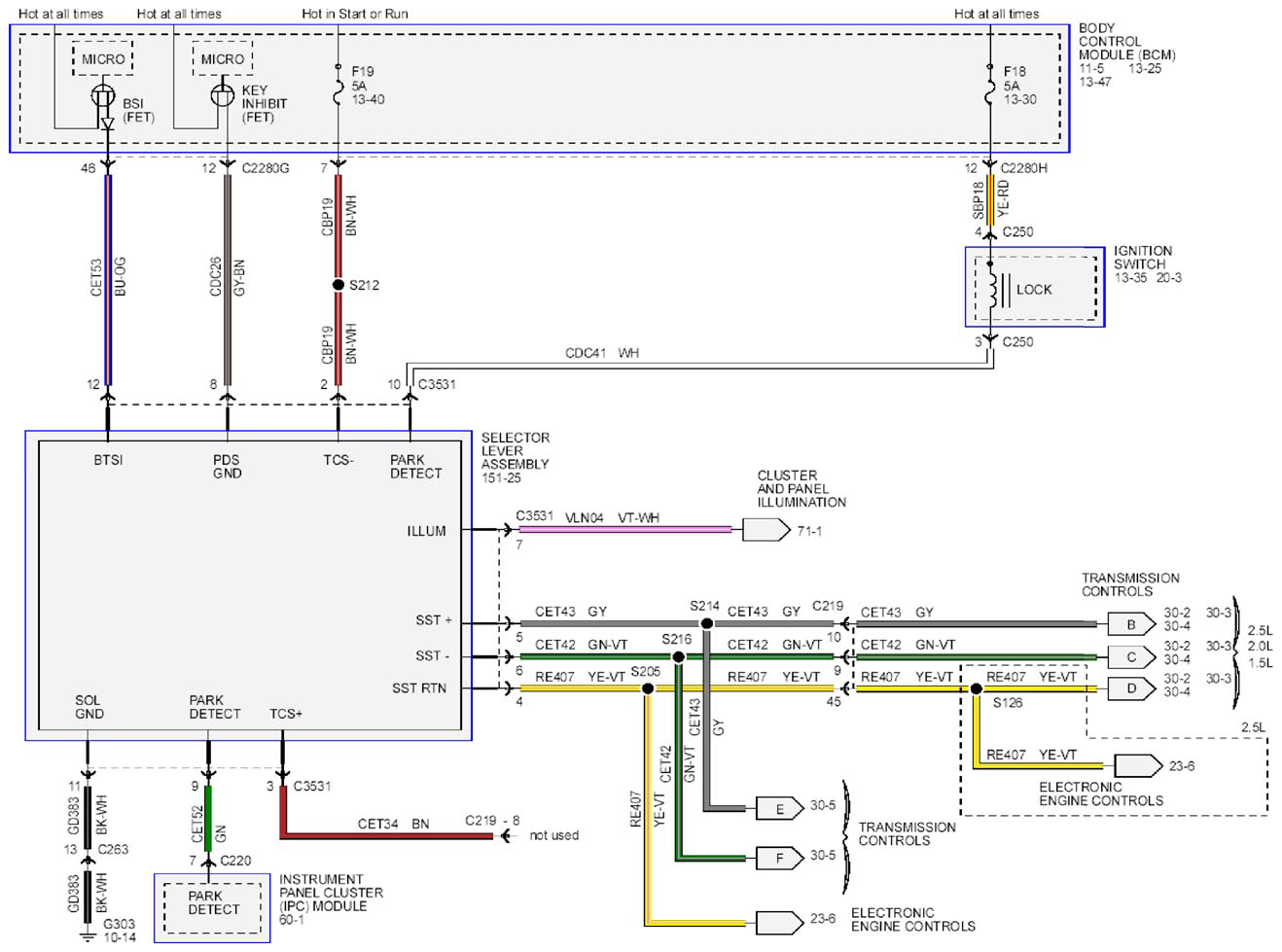

Fig 1: Transmission Controls - 6F35 - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
