Supplemental Restraint System
>>
With Rear Inflatable Safety Belts
With Rear Inflatable Safety Belts

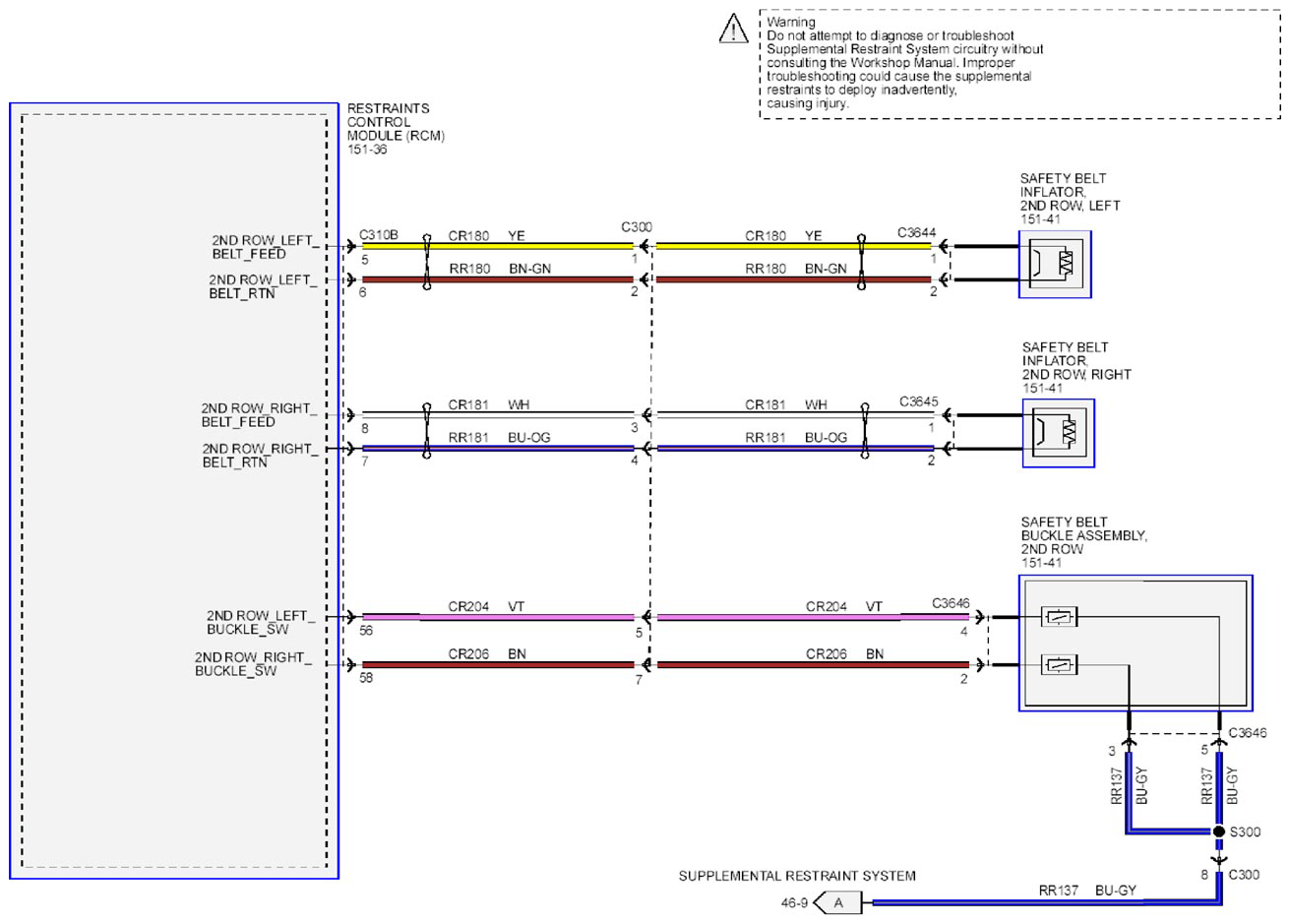

Fig 1: Supplemental Restraint System - With Rear Inflatable Safety Belts - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
