Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Starting System
>>
With Auto-Start-Stop System
With Auto-Start-Stop System

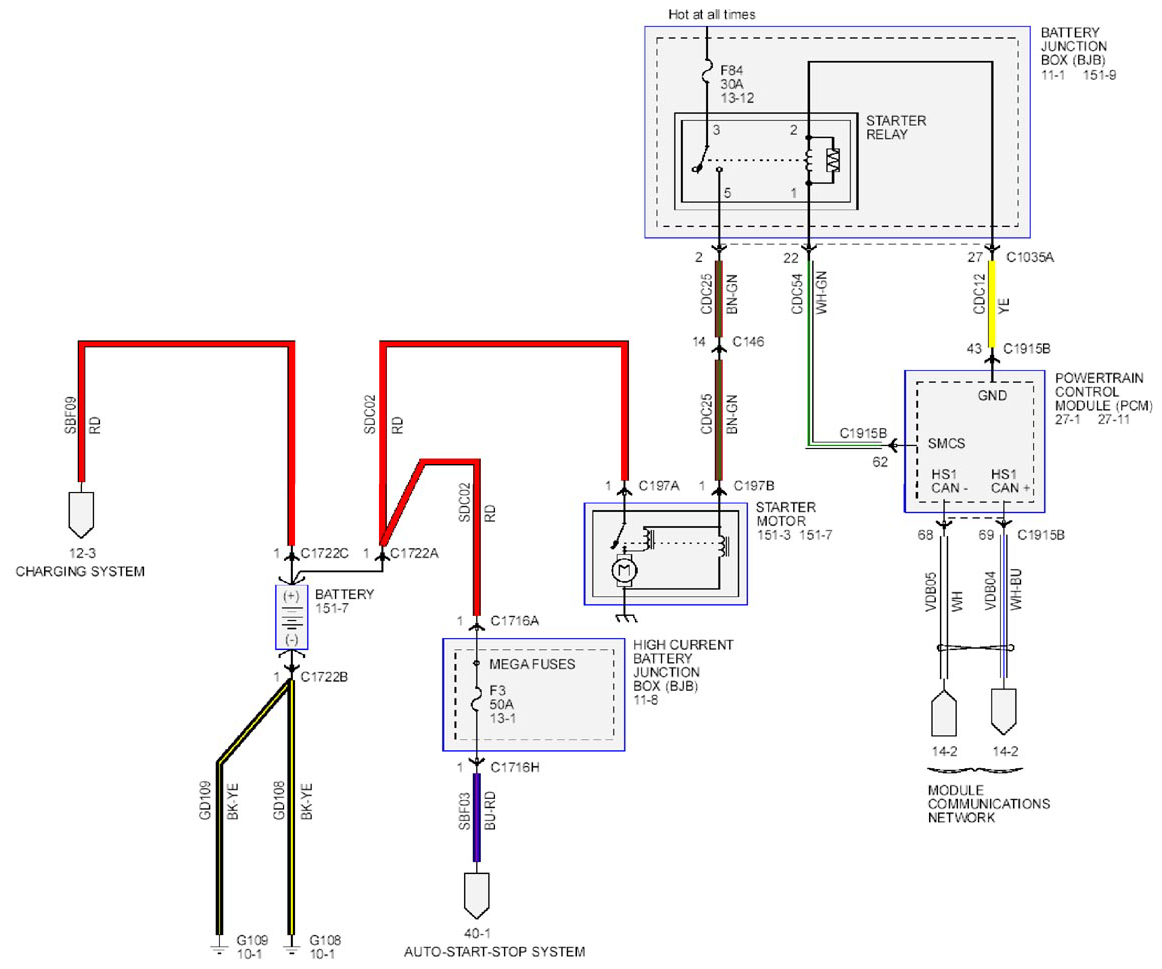

Fig 1: Starting System - With Auto-Start-Stop System - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
