Push Button Start

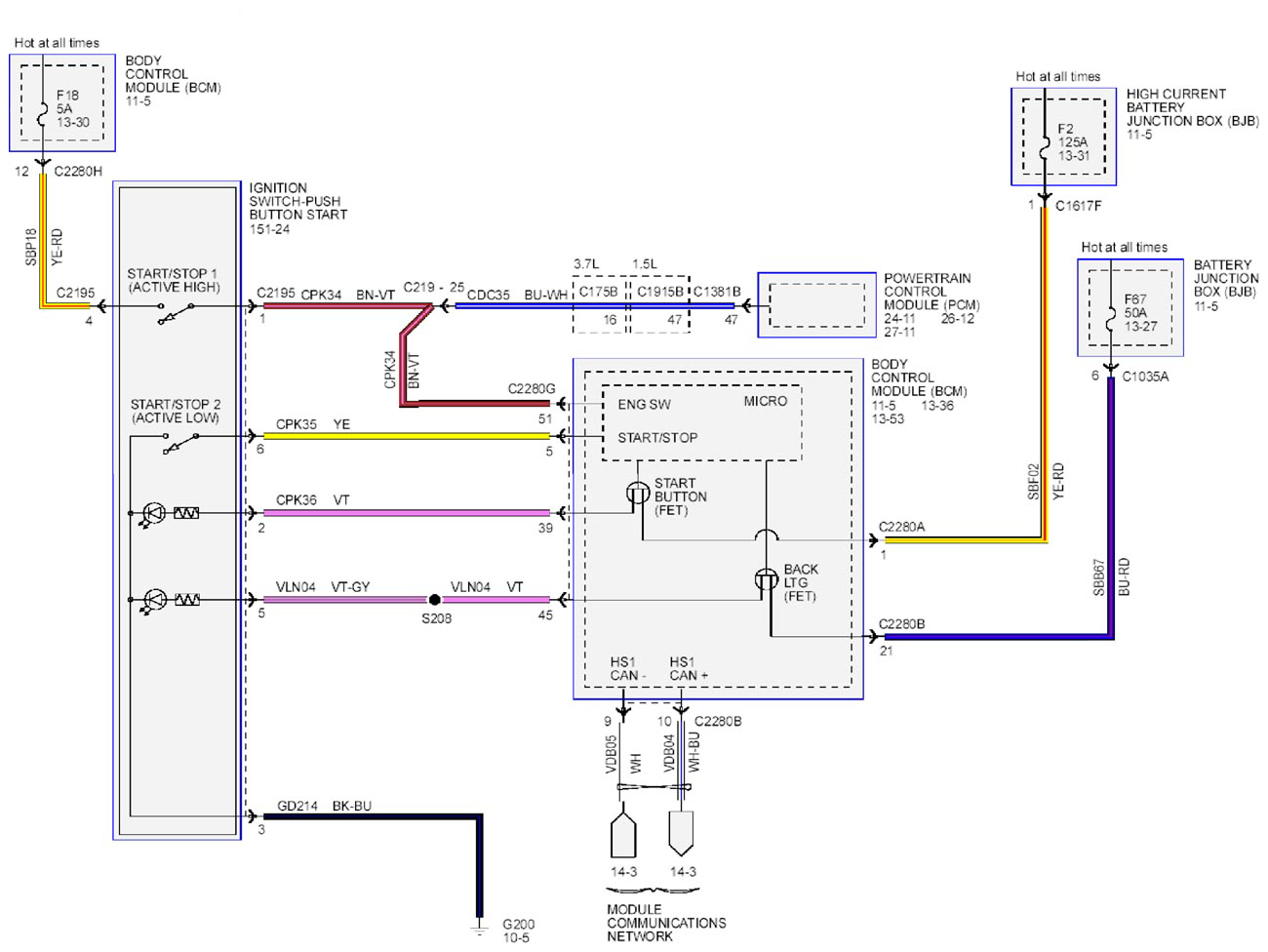

Fig 1: Starting System - Push Button Start - Wiring Diagram

G09264691

Courtesy of FORD MOTOR CO.
