Starting System: 2.0L/2.5L/3.7L

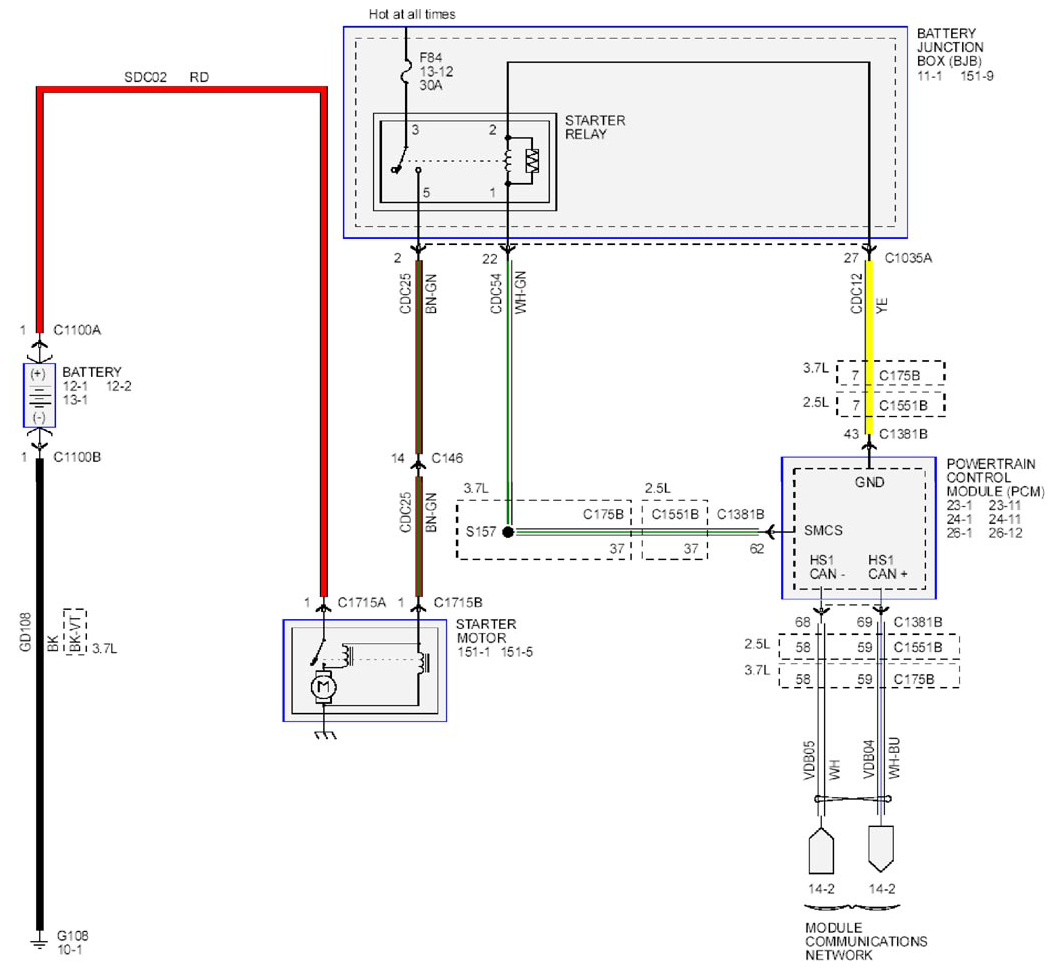

Fig 1: Starting System - Wiring Diagram - 2.0L/2.5L/3.7L

G09264695

Courtesy of FORD MOTOR CO.
