Starting System: 1.5L/1.6L

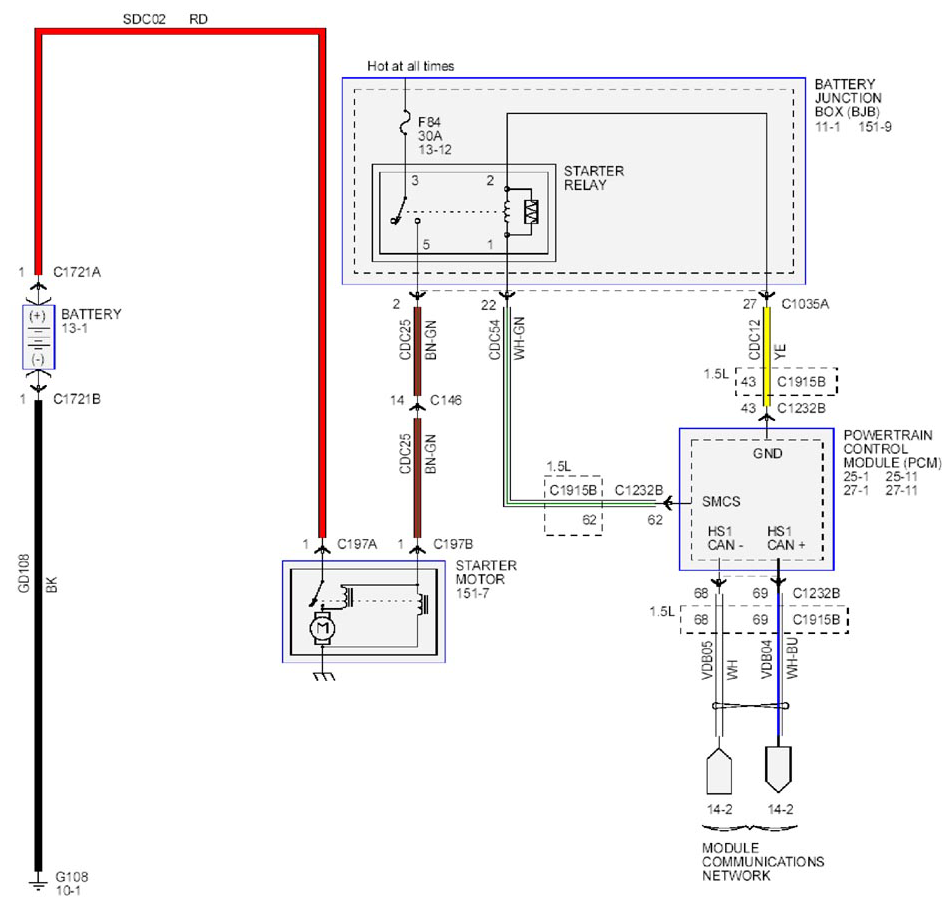

Fig 1: Starting System - Wiring Diagram - 1.5L/1.6L

G09264694

Courtesy of FORD MOTOR CO.
