Roof Opening Panel: Notes

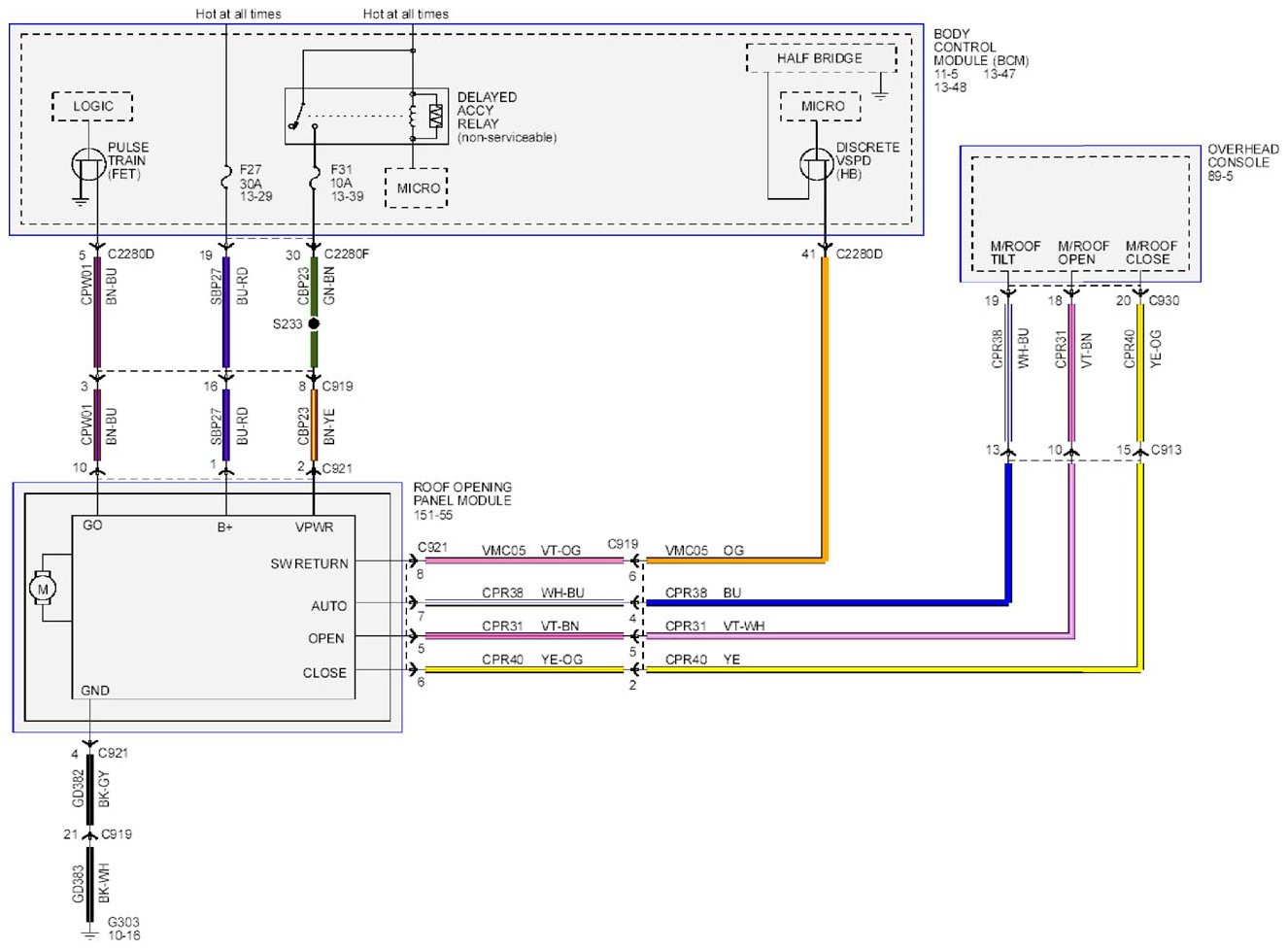

Fig 1: Roof Opening Panel - Wiring Diagram

G09264864

Courtesy of FORD MOTOR CO.
