OEM Wiring Diagrams -- (Except Hybrid)
>>
Roof Opening Panel
>>
MKZ
Roof Opening Panel: MKZ

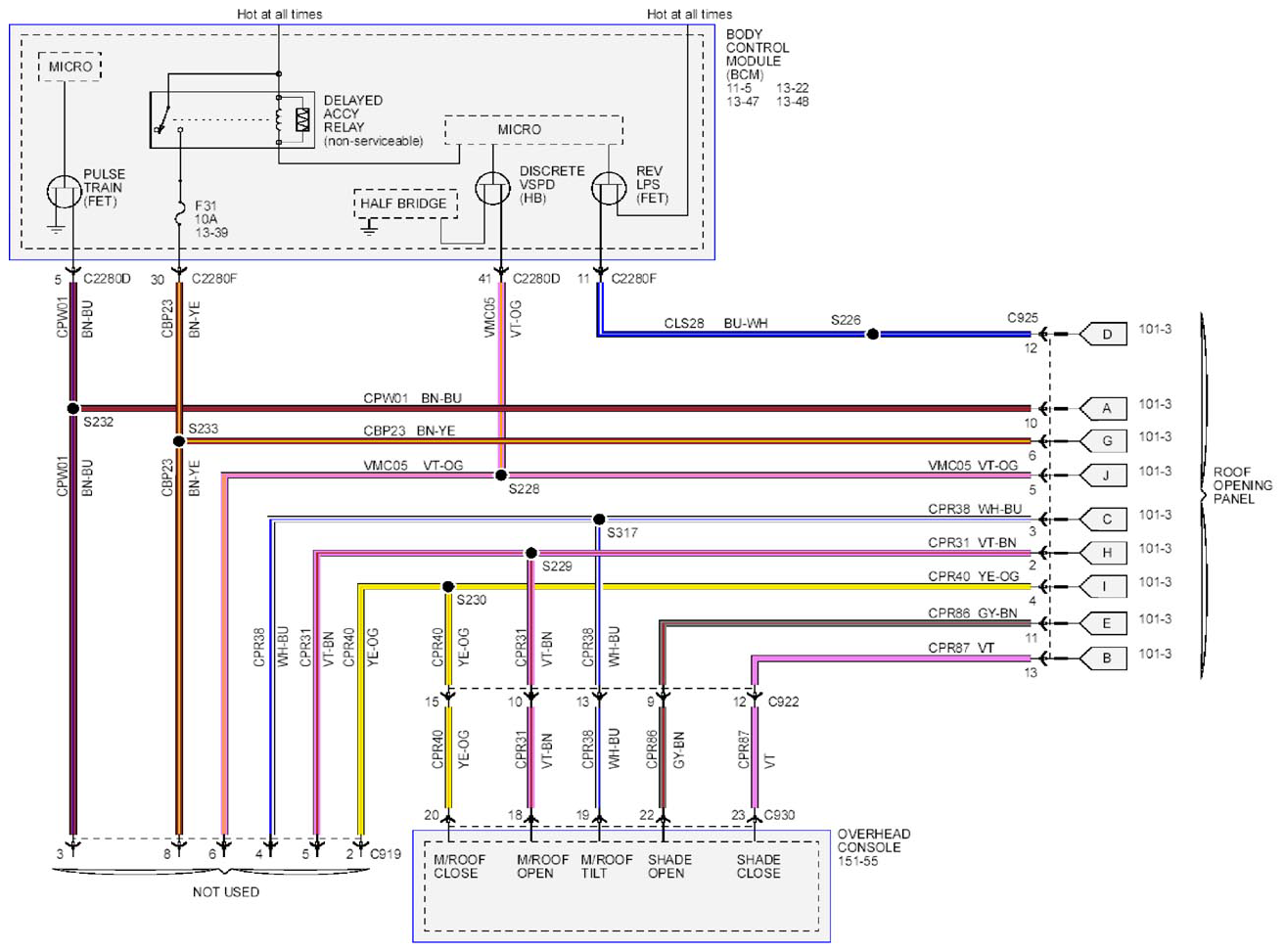

Fig 1: Roof Opening Panel - Wiring Diagram - MKZ (1 Of 2)
Courtesy of FORD MOTOR CO.

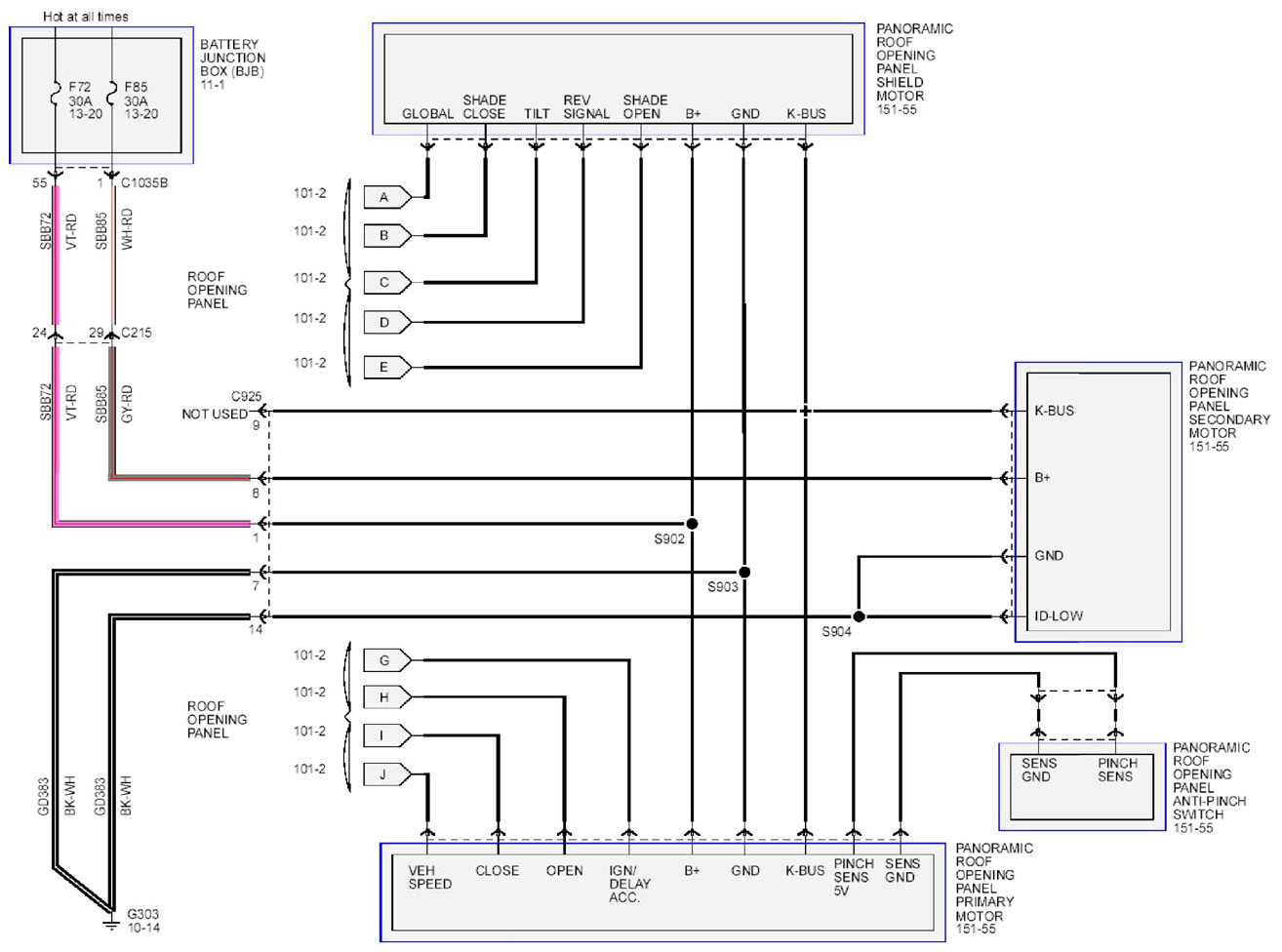

Fig 2: Roof Opening Panel - Wiring Diagram - MKZ (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
