Reversing Lamps: MKZ

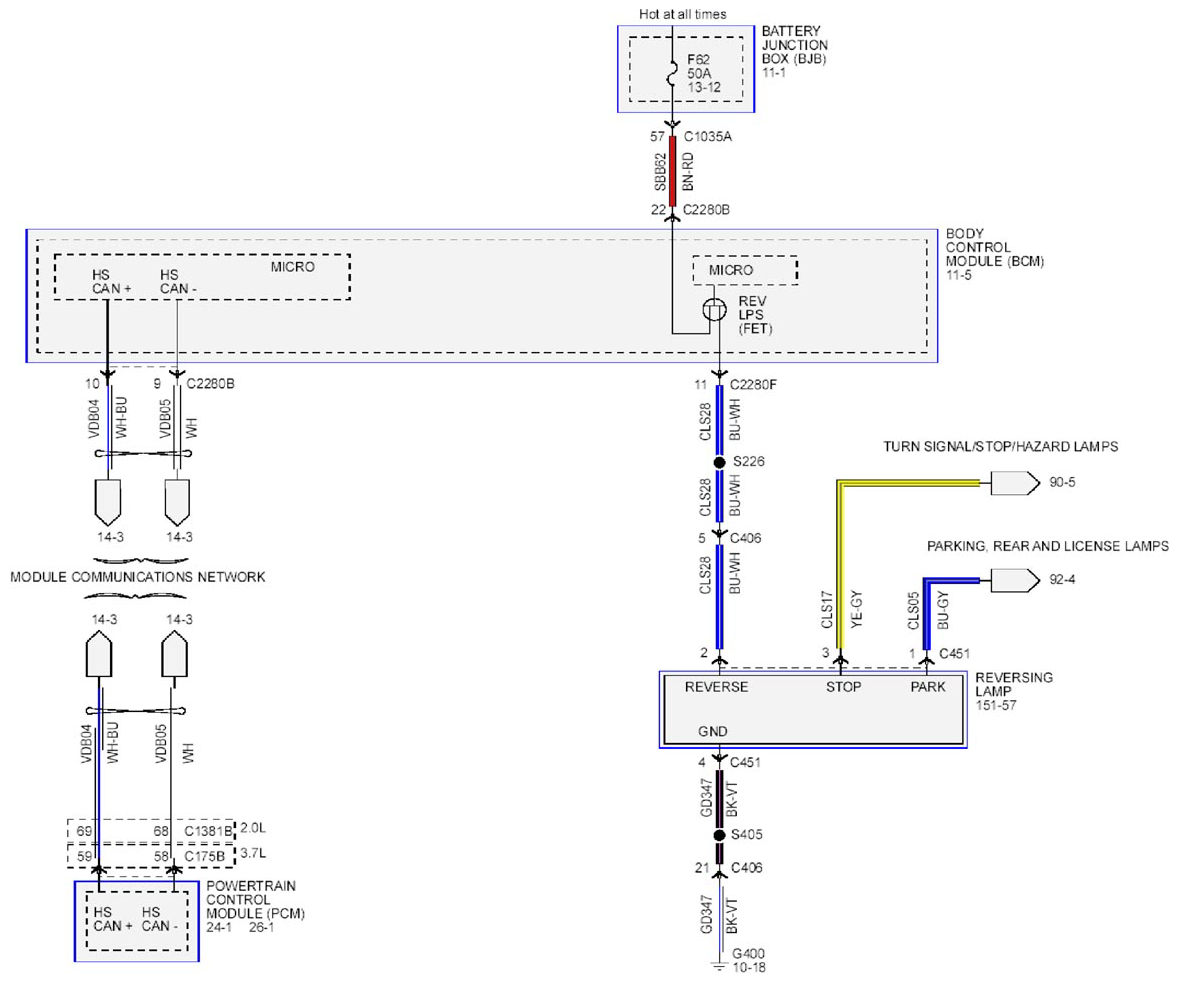

Fig 1: Reversing Lamps - MKZ - Wiring Diagram

G09264855

Courtesy of FORD MOTOR CO.
