Reversing Lamps: Fusion

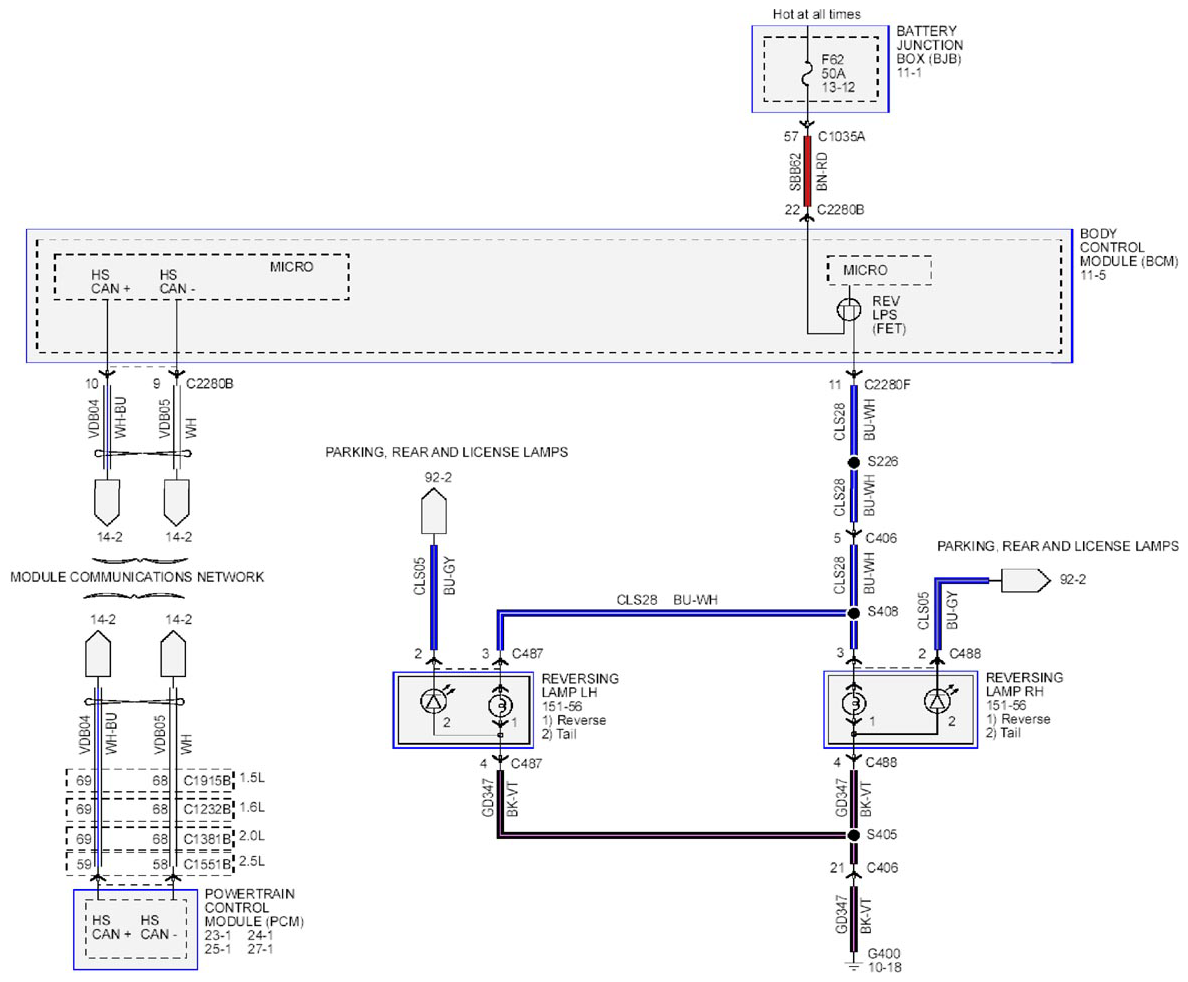

Fig 1: Reversing Lamps - Fusion - Wiring Diagram

G09264854

Courtesy of FORD MOTOR CO.
