Power Luggage Compartment

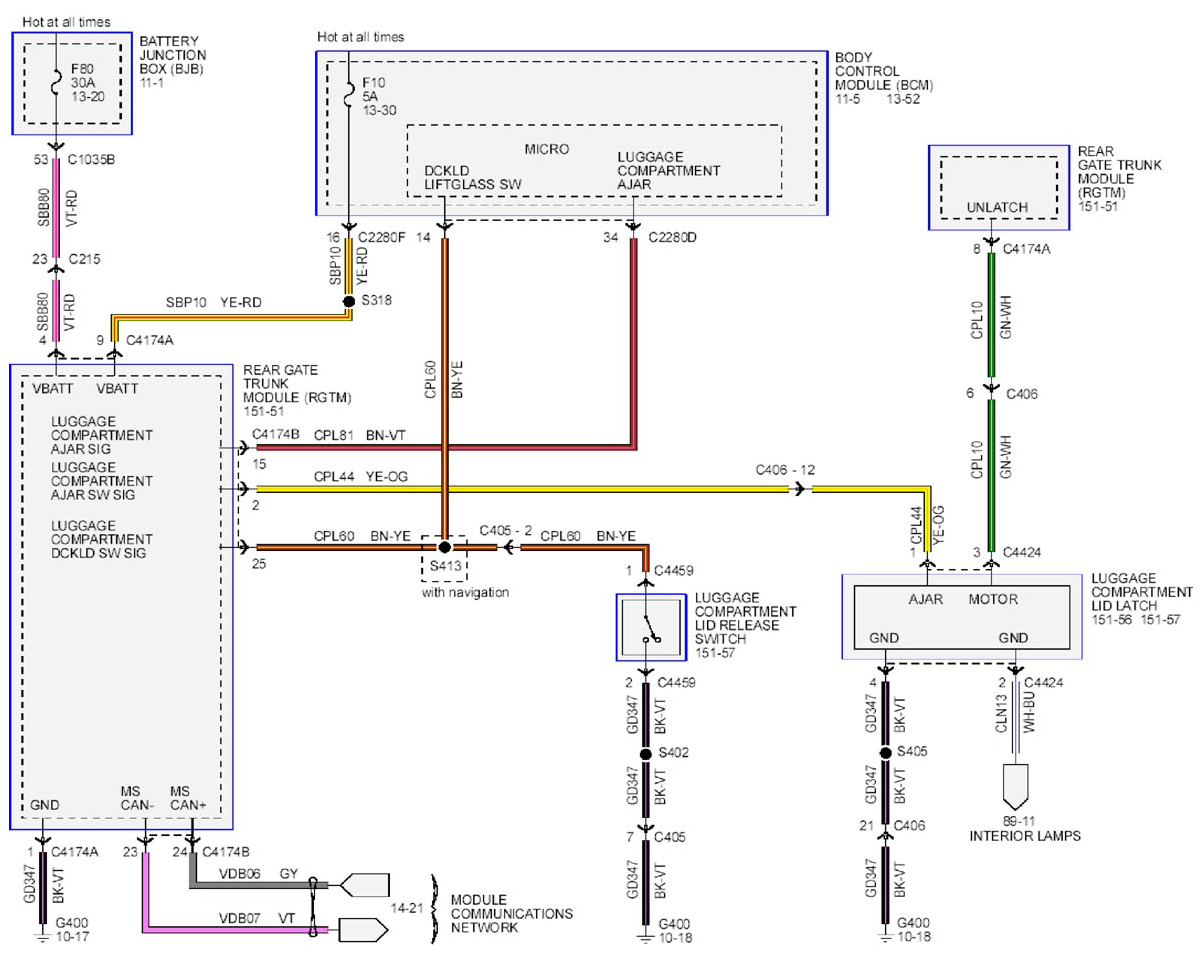

Fig 1: Power Luggage Compartment - Wiring Diagram (1 Of 3)
G09264887Courtesy of FORD MOTOR CO.

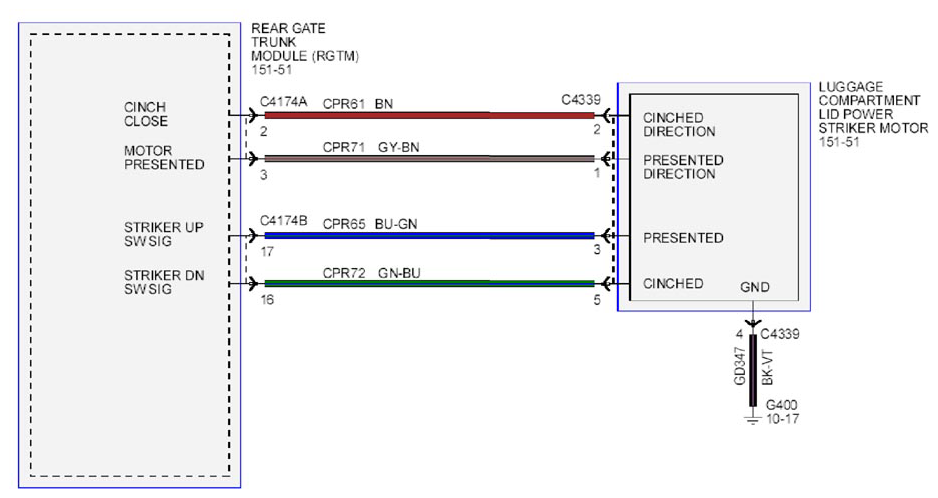

Fig 2: Power Luggage Compartment - Wiring Diagram (2 Of 3)
G09264888Courtesy of FORD MOTOR CO.

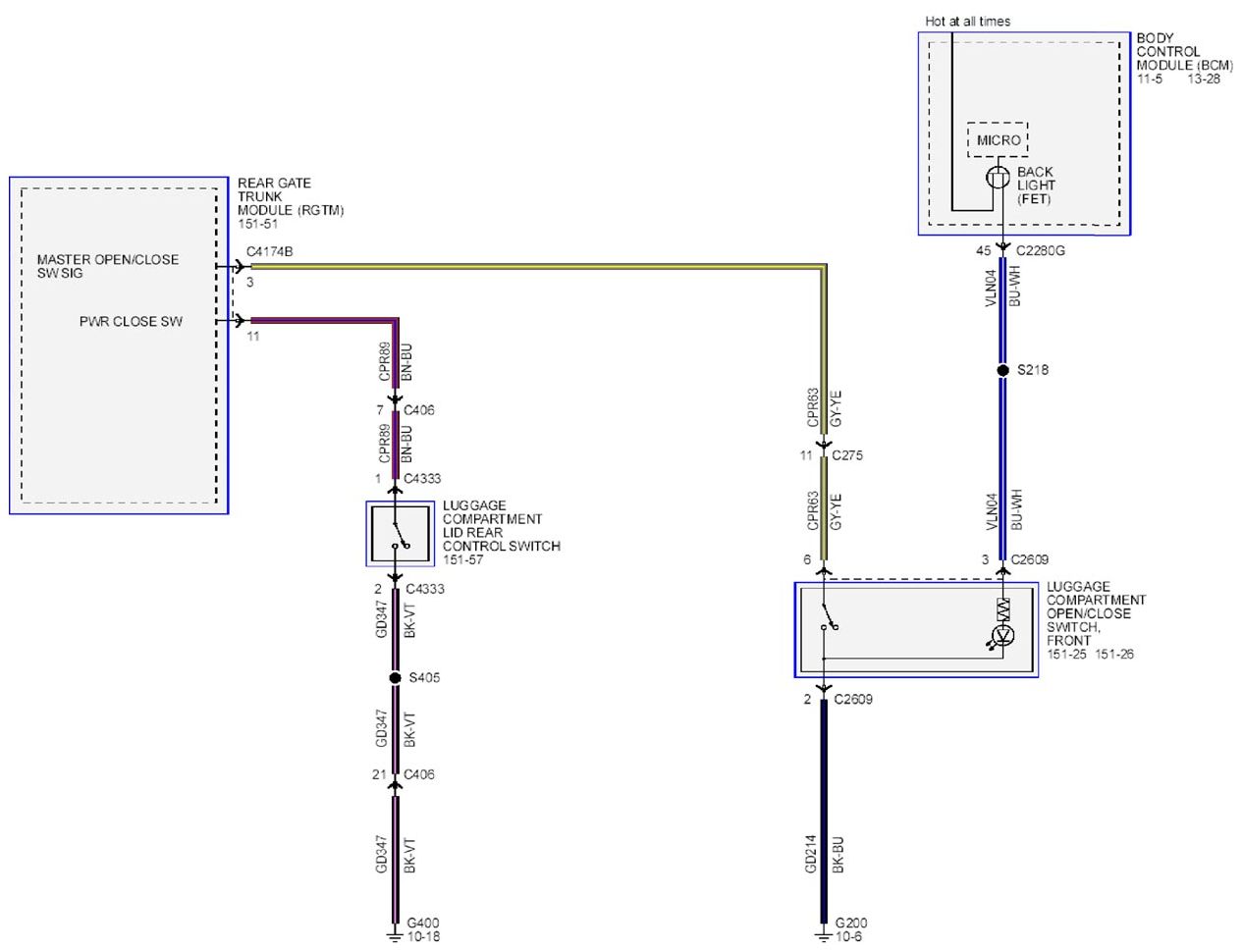

Fig 3: Power Luggage Compartment - Wiring Diagram (3 Of 3)
G09264889Courtesy of FORD MOTOR CO.
