Remote Keyless Entry And Alarm
>>
Notes
Remote Keyless Entry And Alarm: Notes

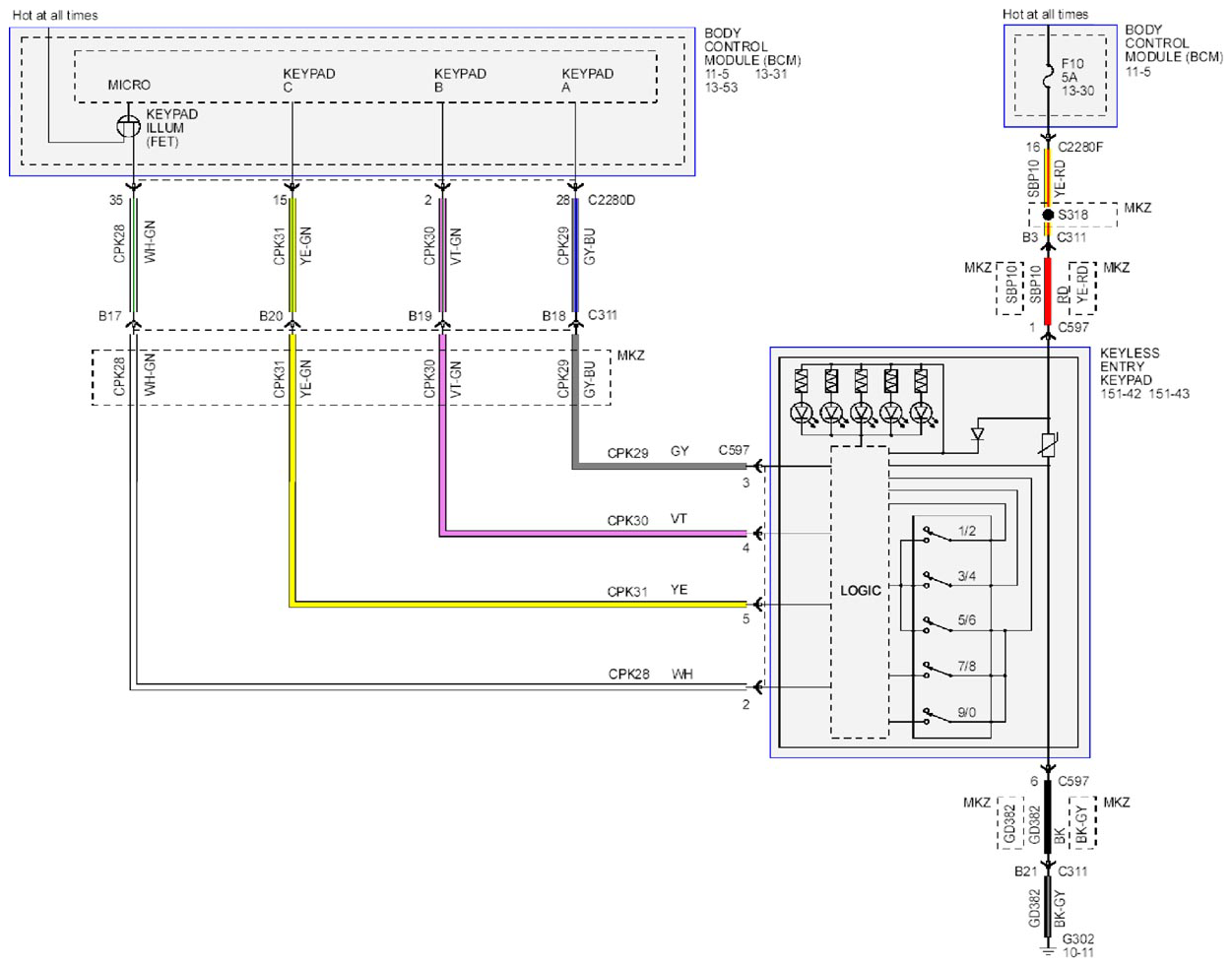

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

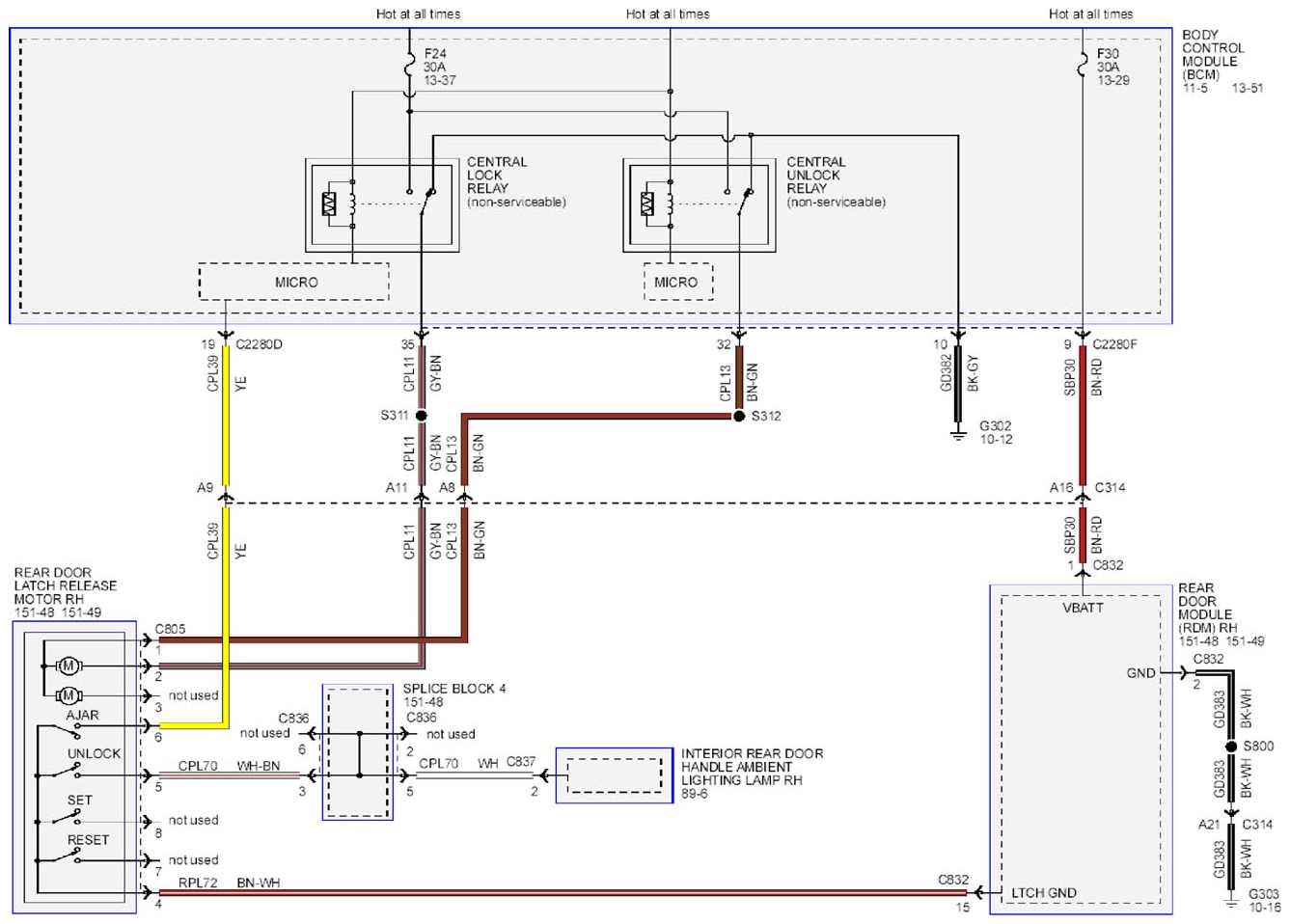

Fig 2: Remote Keyless Entry And Alarm - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

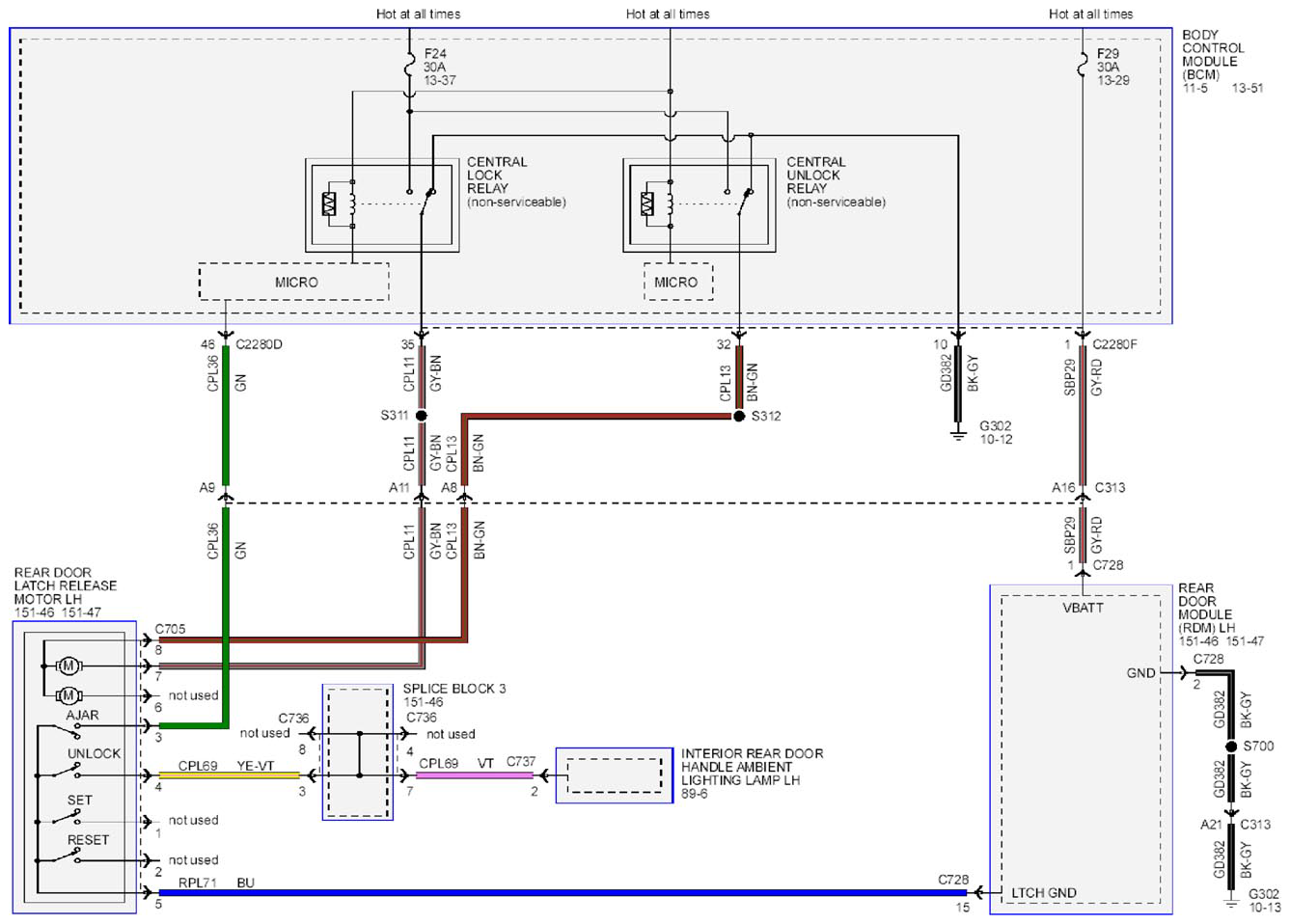

Fig 3: Remote Keyless Entry And Alarm - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.

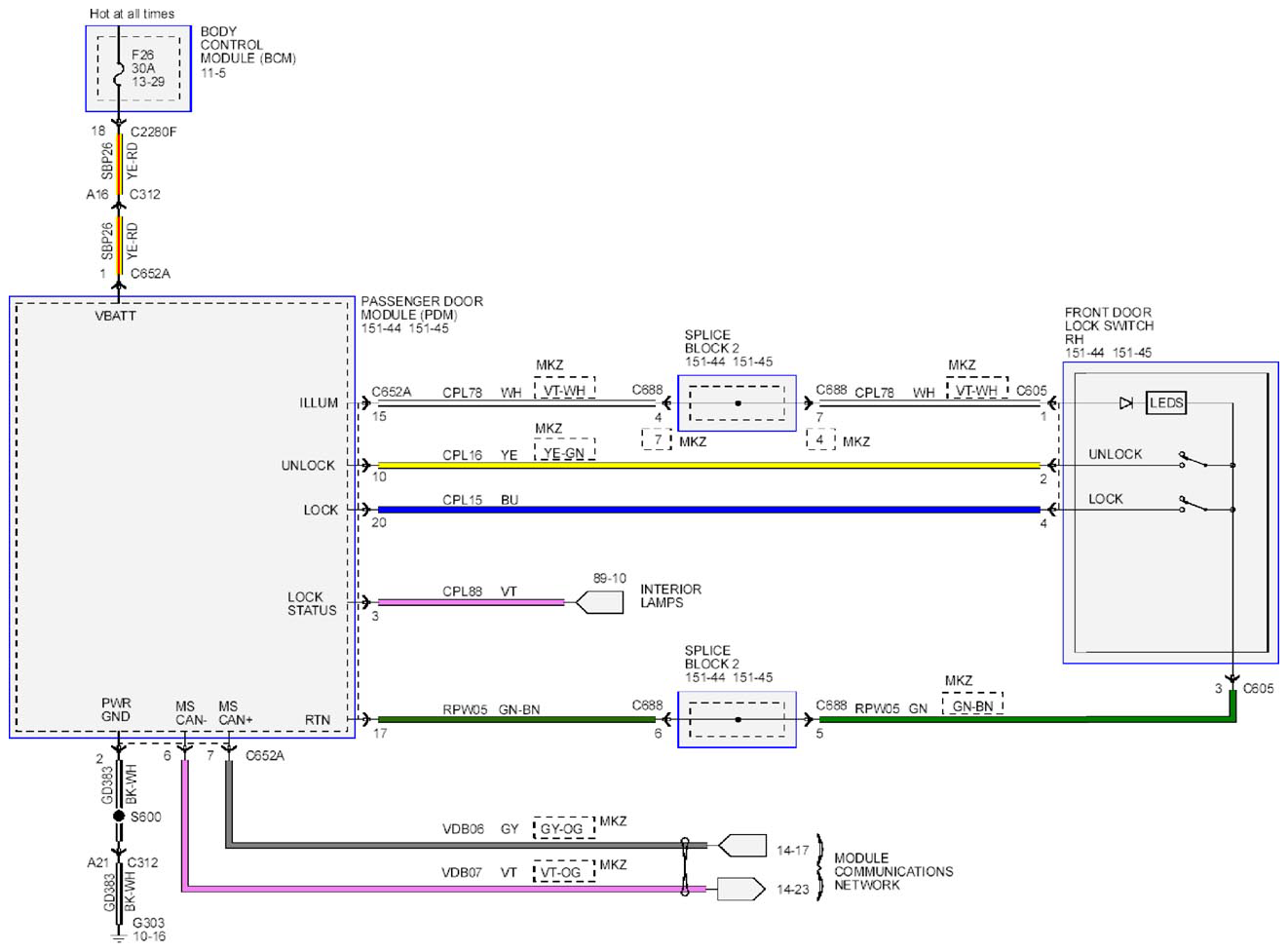

Fig 4: Remote Keyless Entry And Alarm - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
