Remote Keyless Entry And Alarm: MKZ

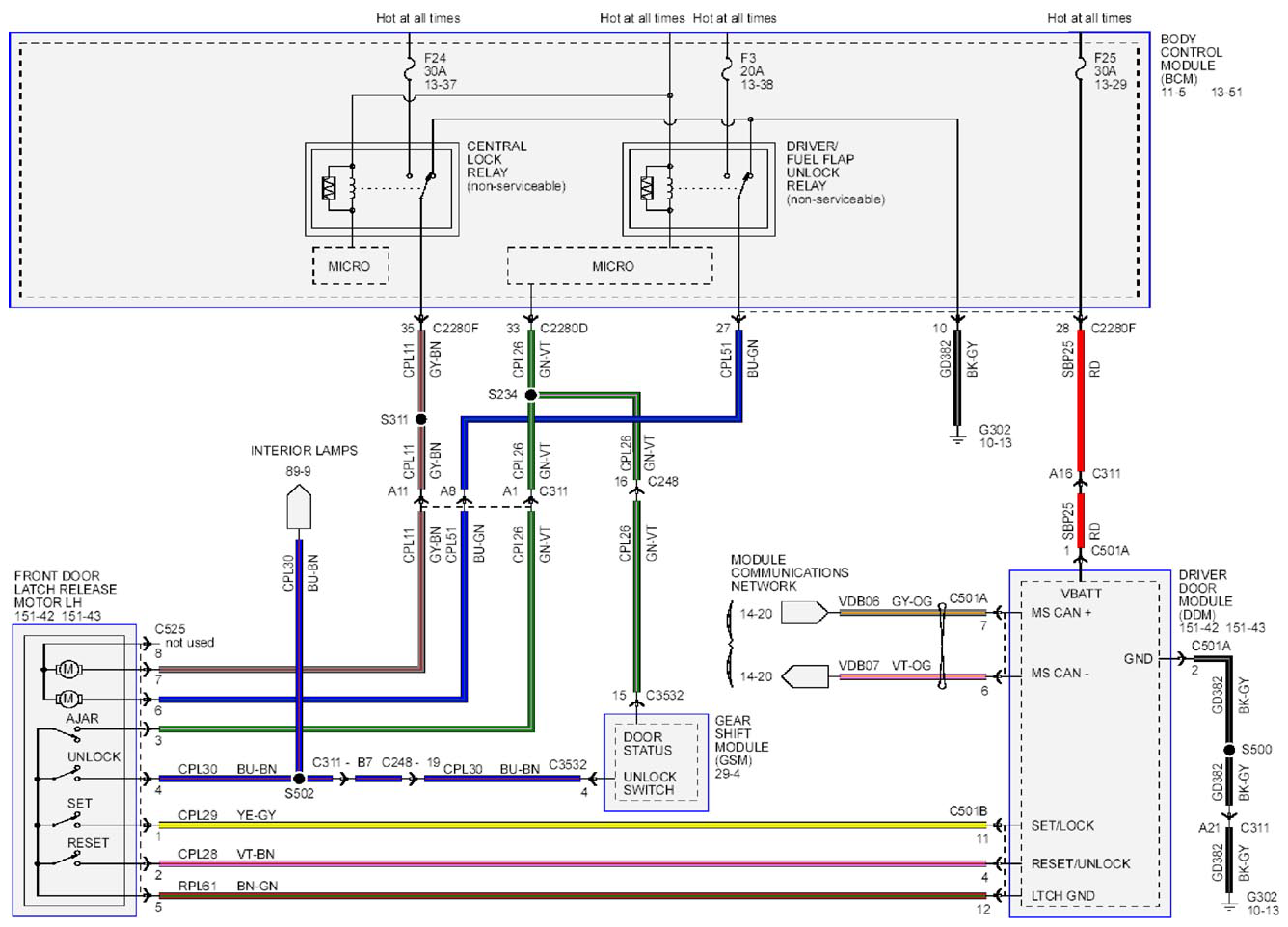

Fig 1: Remote Keyless Entry And Alarm - MKZ - Wiring Diagram (1 Of 2)
G09264877Courtesy of FORD MOTOR CO.

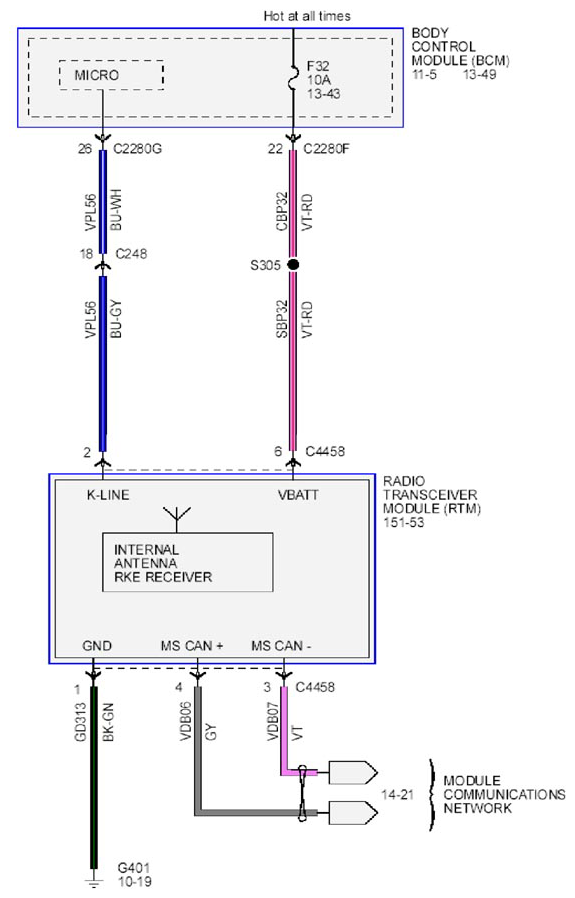

Fig 2: Remote Keyless Entry And Alarm - MKZ - Wiring Diagram (2 Of 2)
G09264891Courtesy of FORD MOTOR CO.
