Remote Keyless Entry And Alarm: Fusion

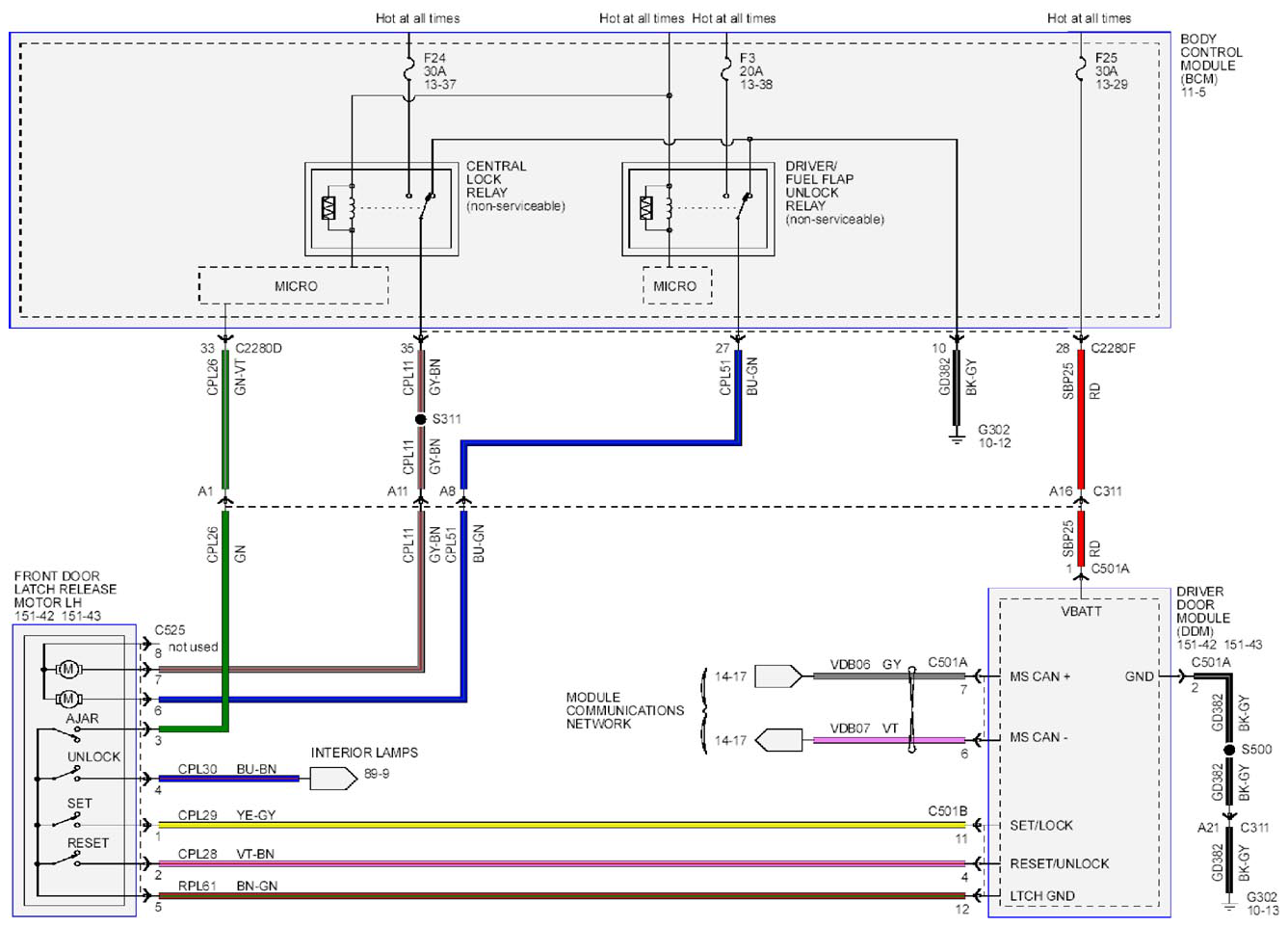

Fig 1: Remote Keyless Entry And Alarm - Fusion - Wiring Diagram (1 Of 3)
G09264876Courtesy of FORD MOTOR CO.

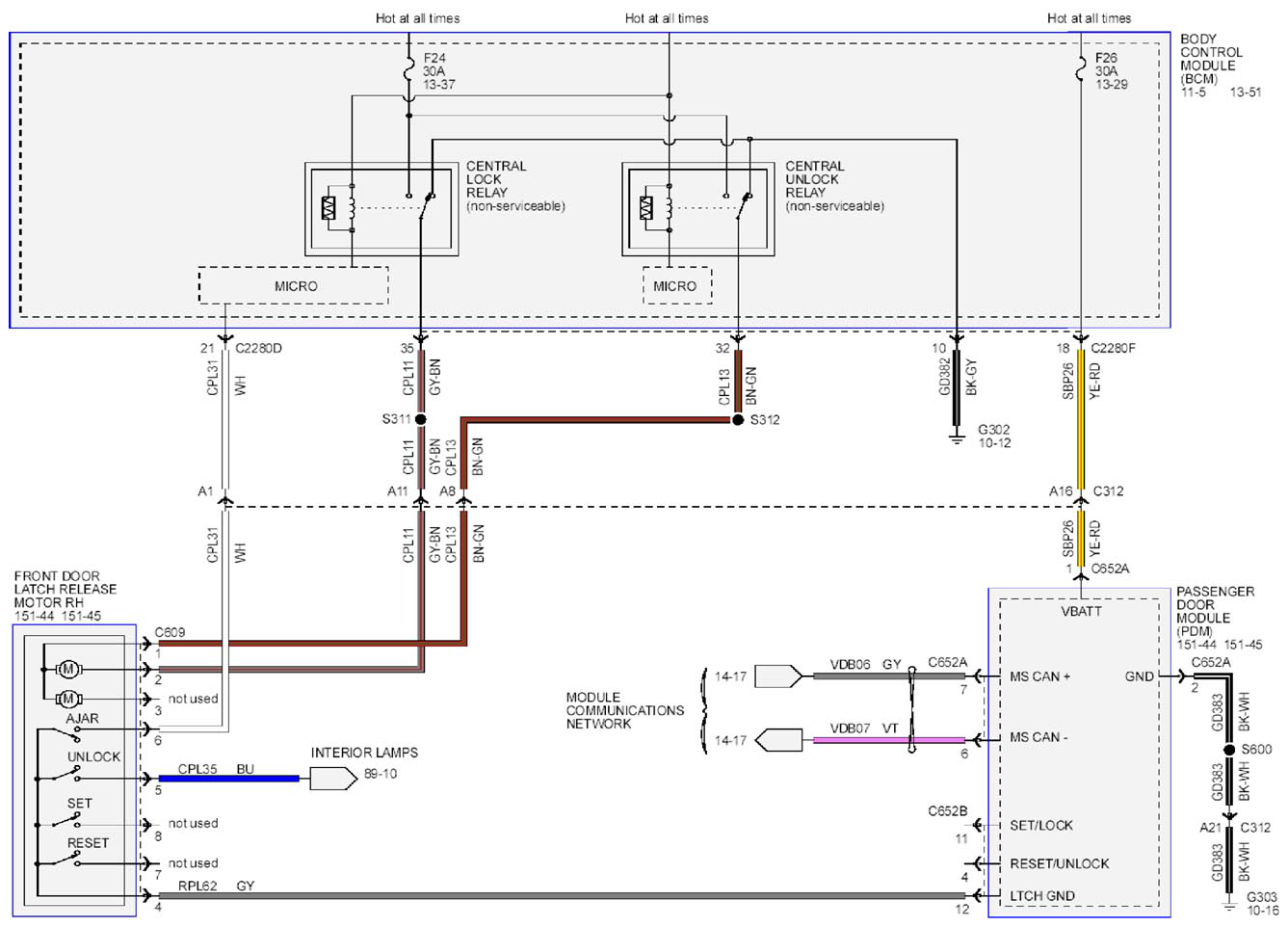

Fig 2: Remote Keyless Entry And Alarm - Fusion - Wiring Diagram (2 Of 3)
G09264878Courtesy of FORD MOTOR CO.

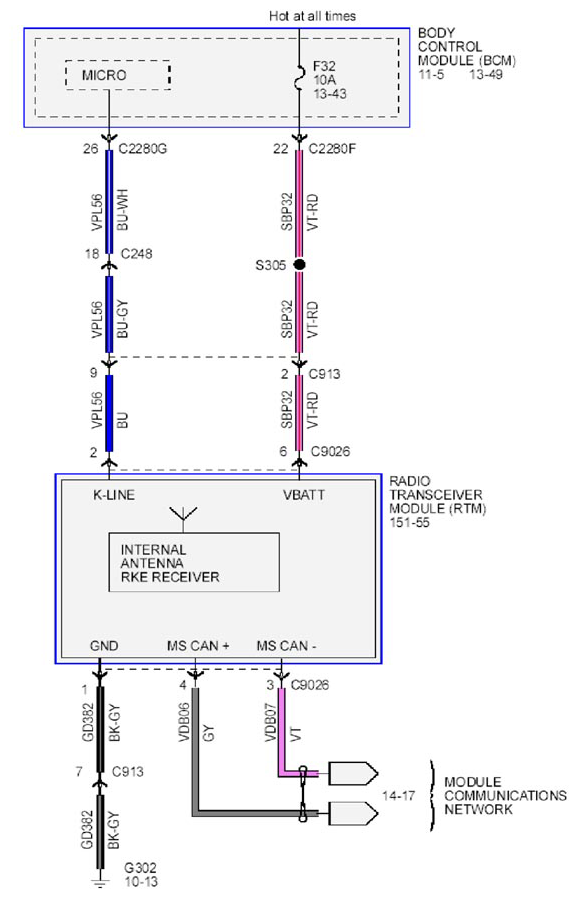

Fig 3: Remote Keyless Entry And Alarm - Fusion - Wiring Diagram (3 Of 3)
G09264890Courtesy of FORD MOTOR CO.
