Power Windows: MKZ

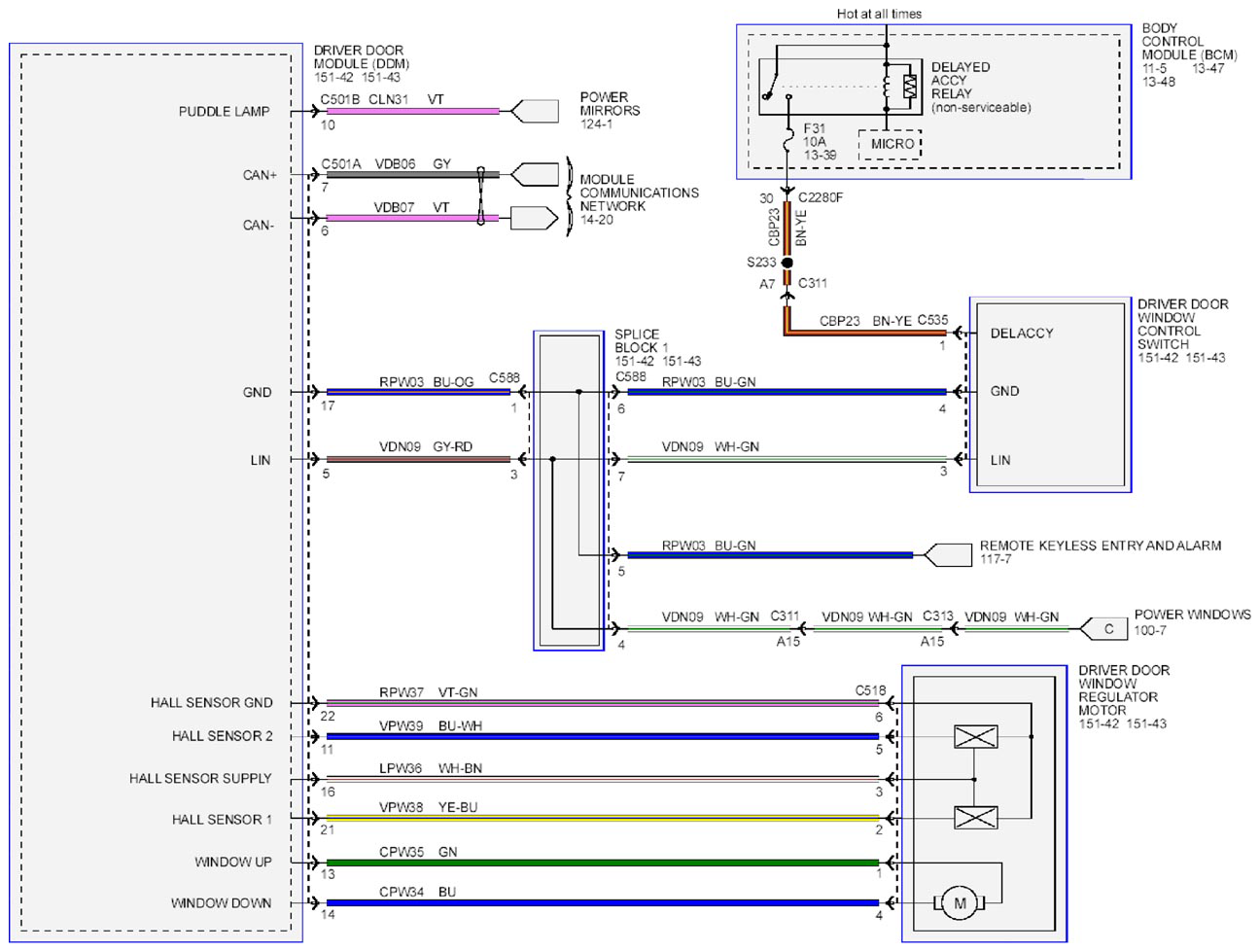

Fig 1: Power Windows - Wiring Diagram - MKZ (1 Of 4)
G09264860Courtesy of FORD MOTOR CO.

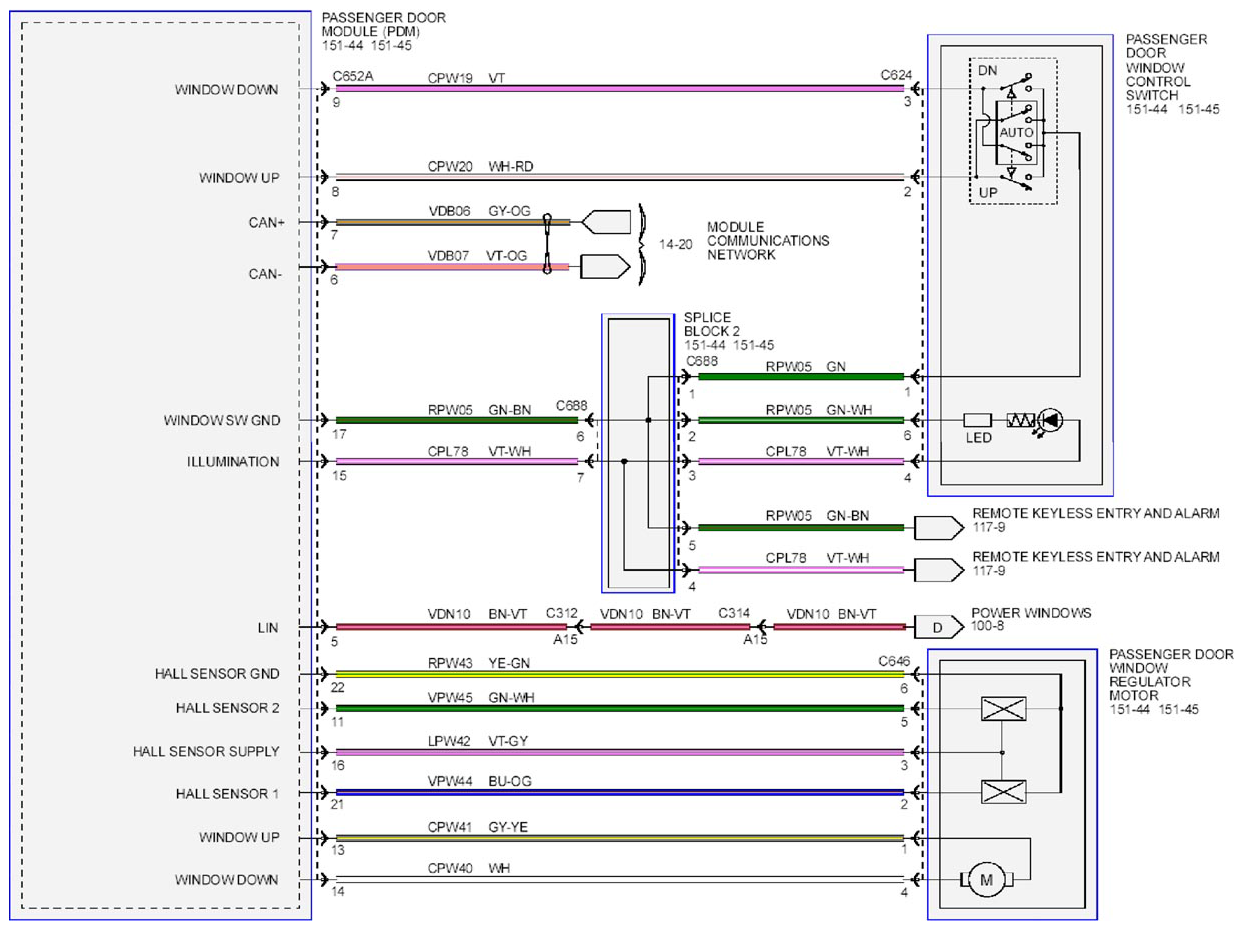

Fig 2: Power Windows - Wiring Diagram - MKZ (2 Of 4)
G09264861Courtesy of FORD MOTOR CO.

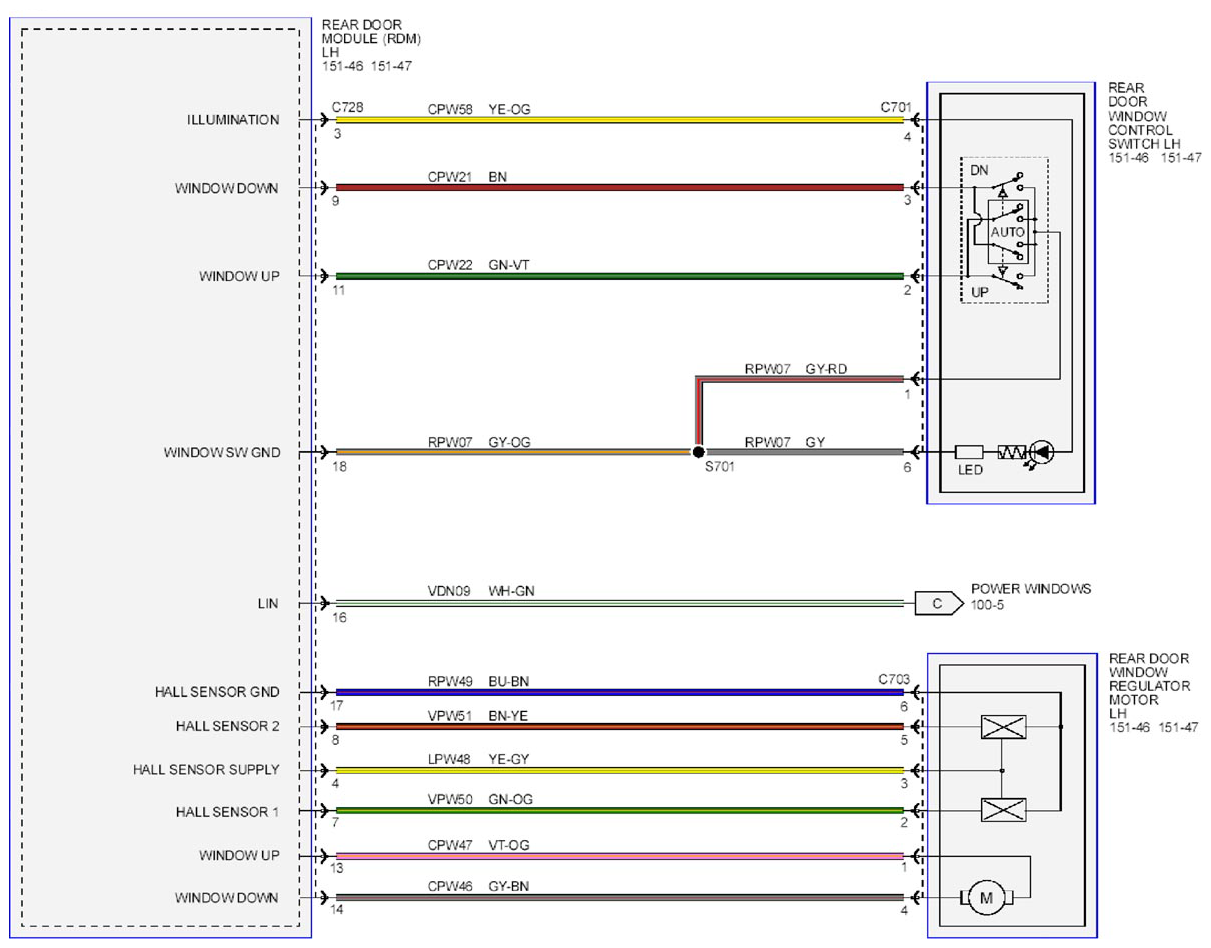

Fig 3: Power Windows - Wiring Diagram - MKZ (3 Of 4)
G09264862Courtesy of FORD MOTOR CO.

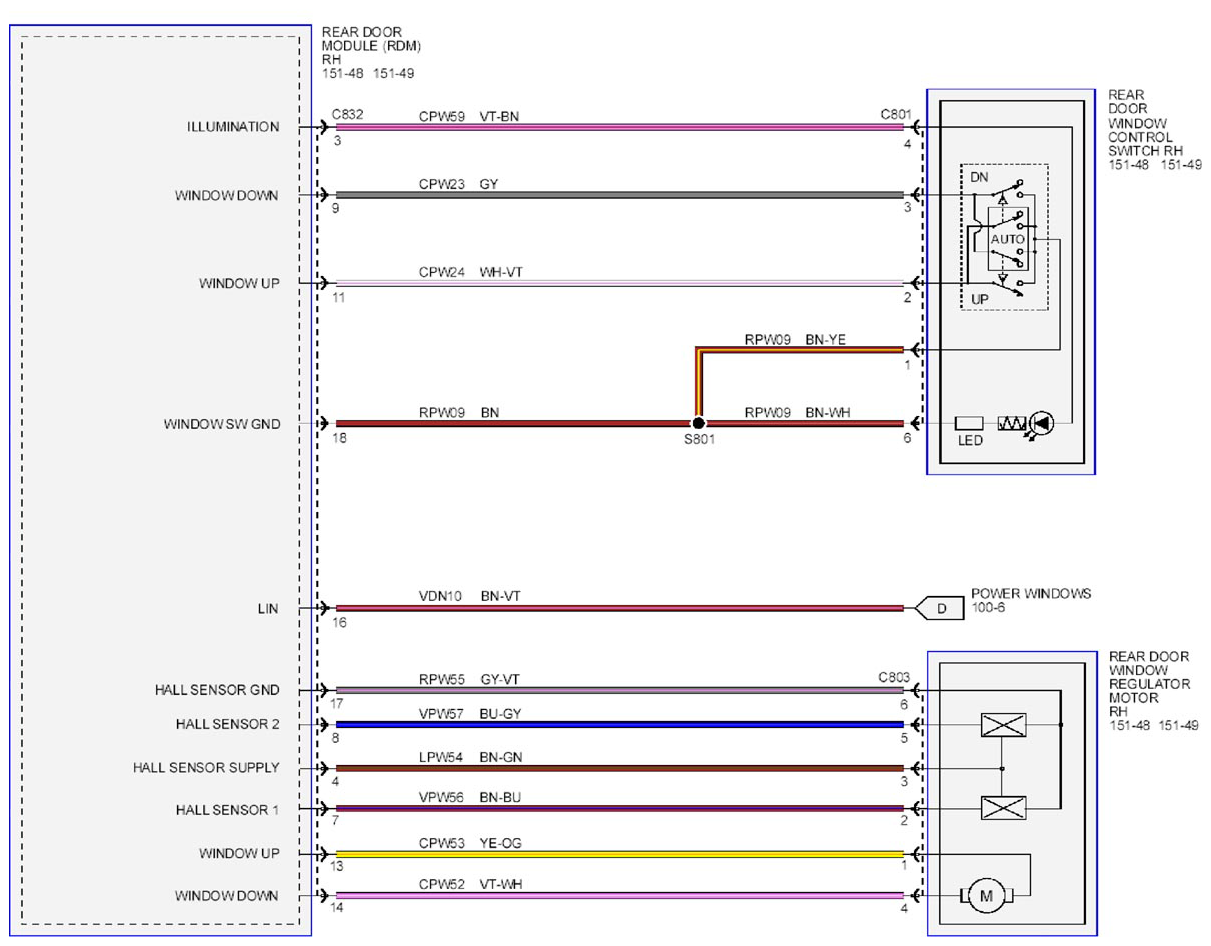

Fig 4: Power Windows - Wiring Diagram - MKZ (4 Of 4)
G09264863Courtesy of FORD MOTOR CO.
