Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Windows
>>
Fusion
Power Windows: Fusion

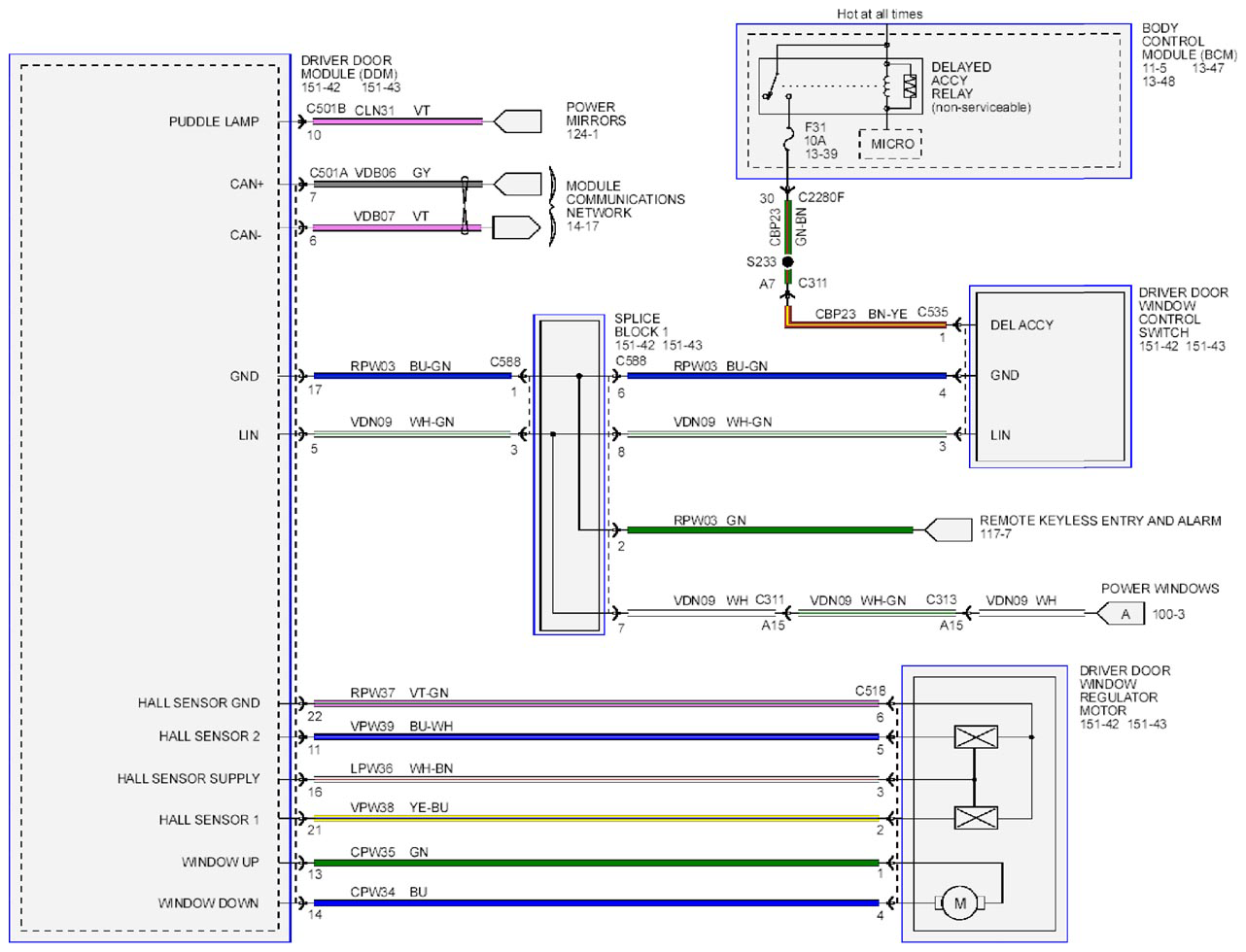

Fig 1: Power Windows - Wiring Diagram - Fusion (1 Of 4)
Courtesy of FORD MOTOR CO.

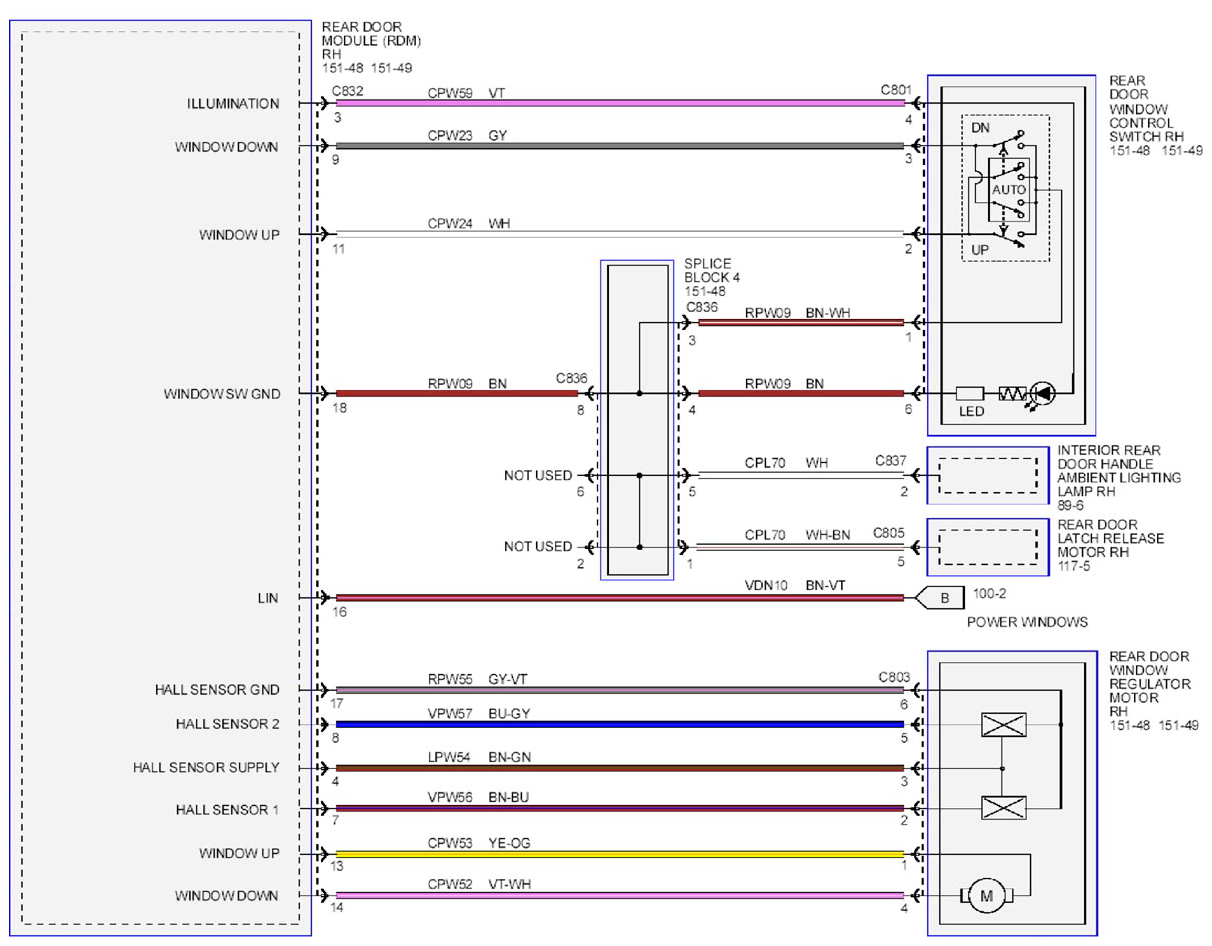

Fig 2: Power Windows - Wiring Diagram - Fusion (2 Of 4)
Courtesy of FORD MOTOR CO.

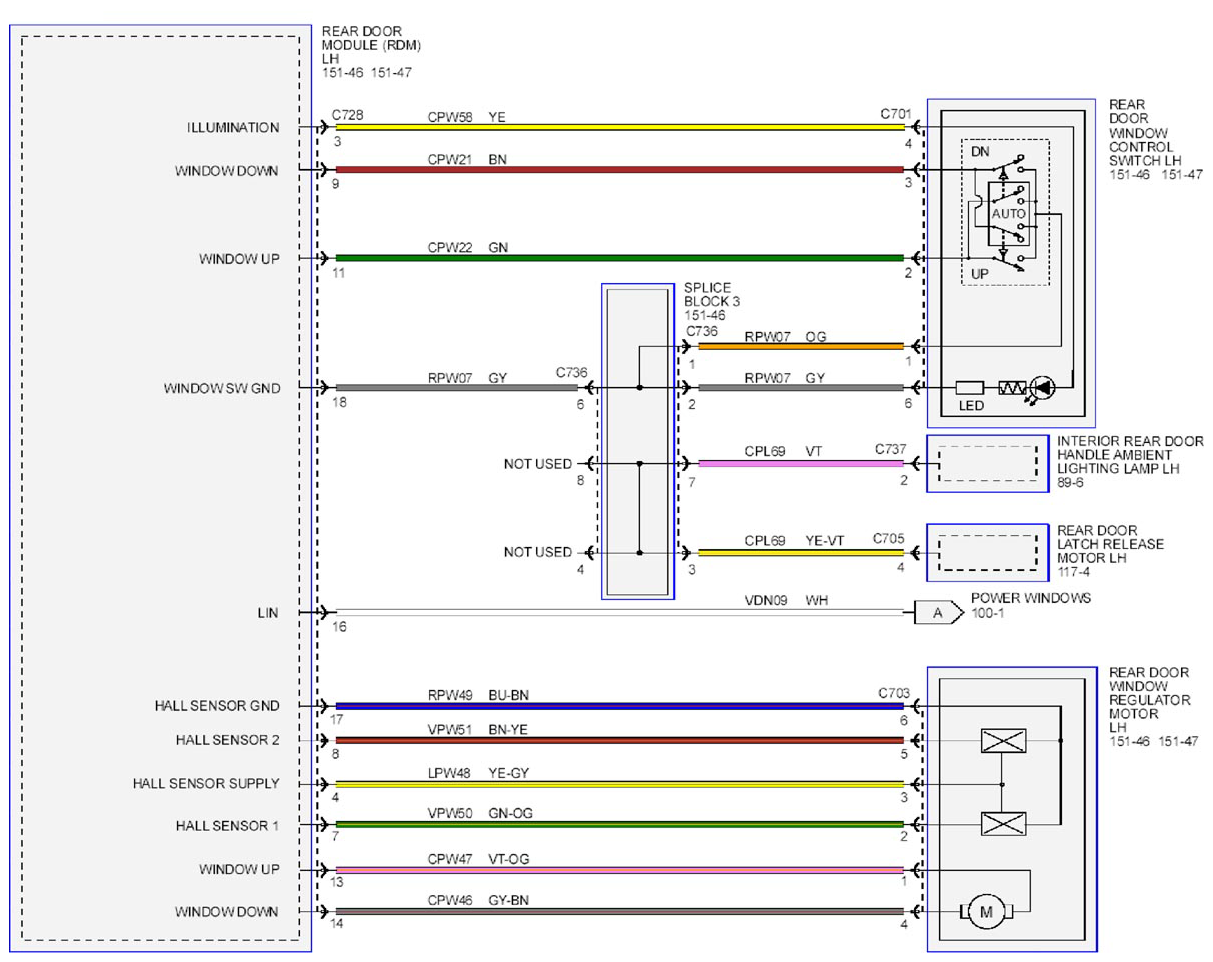

Fig 3: Power Windows - Wiring Diagram - Fusion (3 Of 4)
Courtesy of FORD MOTOR CO.

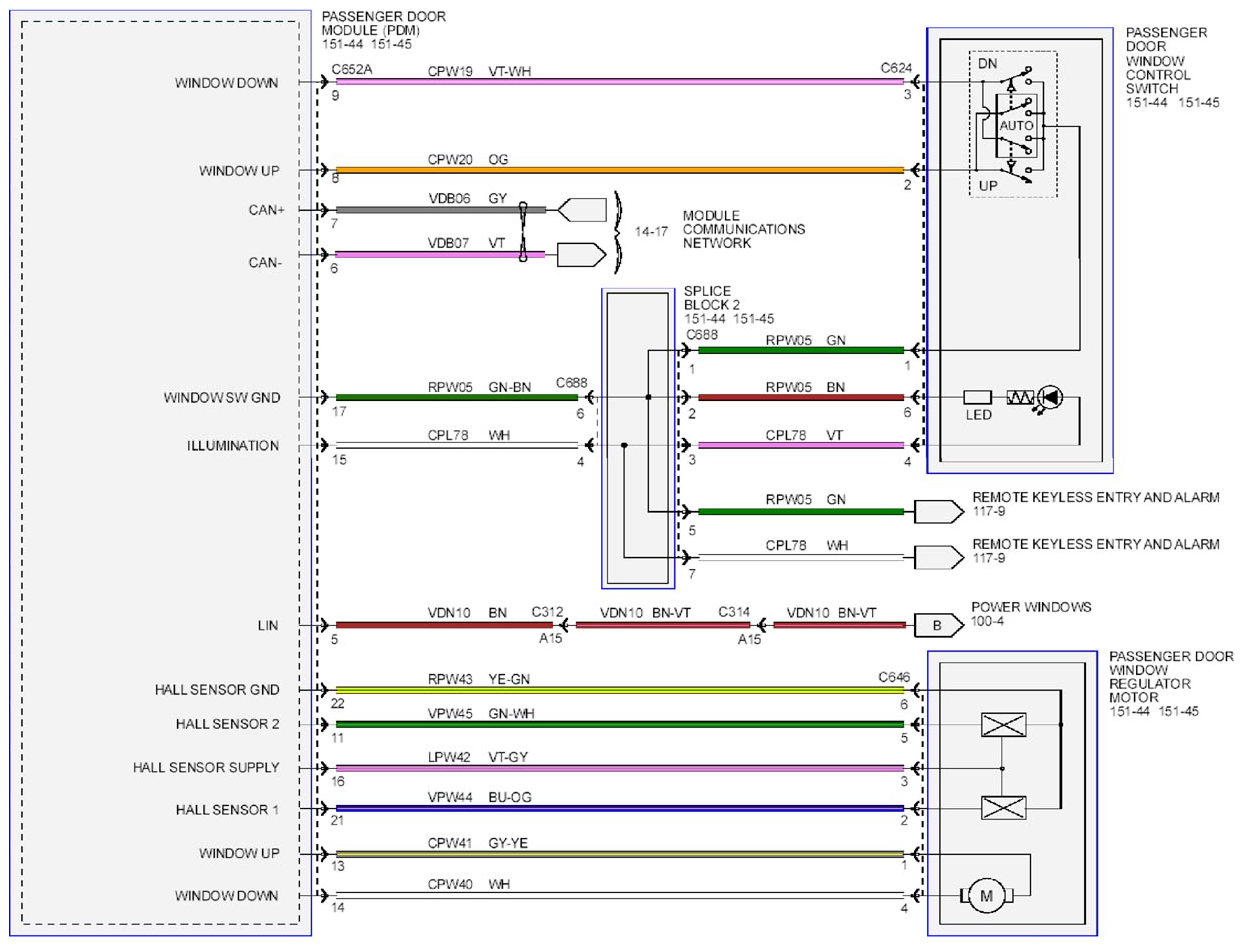

Fig 4: Power Windows - Wiring Diagram - Fusion (4 Of 4)
Courtesy of FORD MOTOR CO.
