Power Sunshade: MKZ

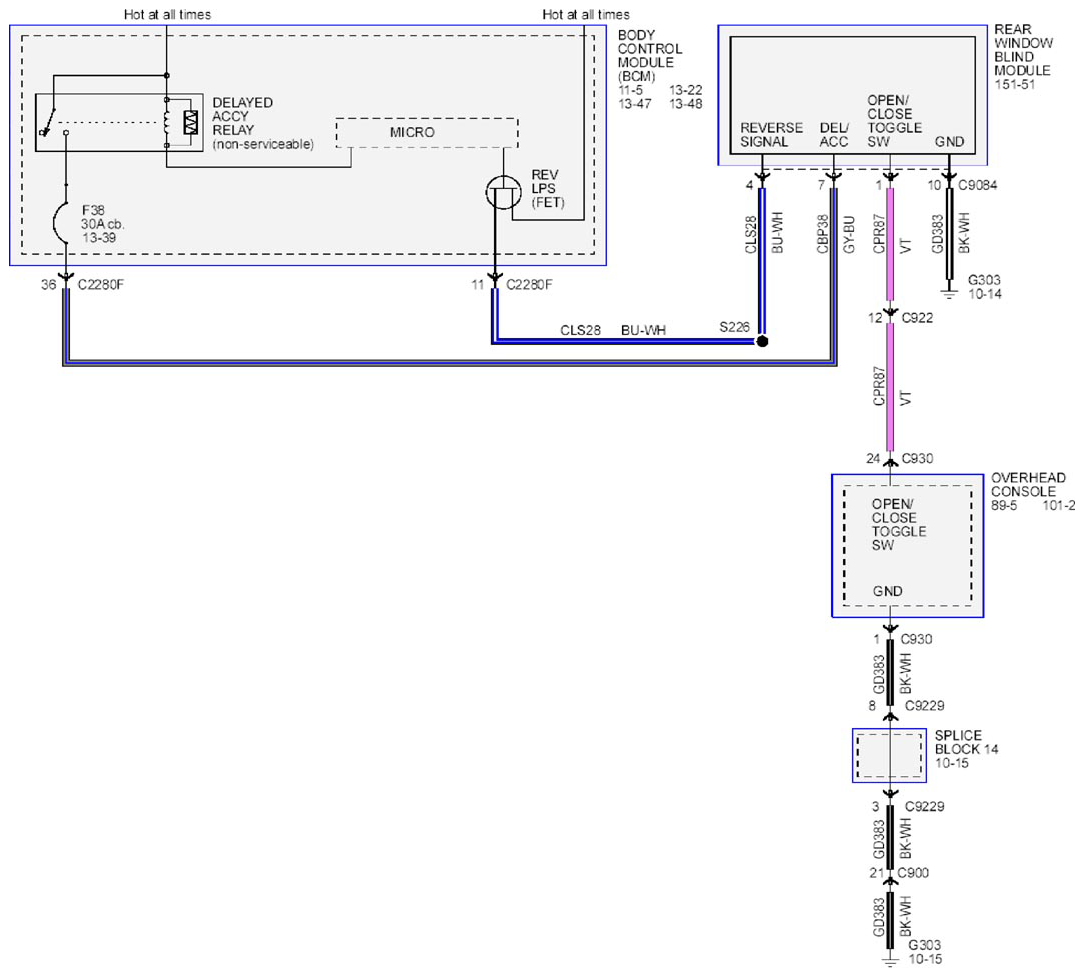

Fig 1: Power Sunshade - MKZ - Wiring Diagram

G09264867

Courtesy of FORD MOTOR CO.
