Fusion Power Seat - Passenger
Fusion Power Seat - Passenger

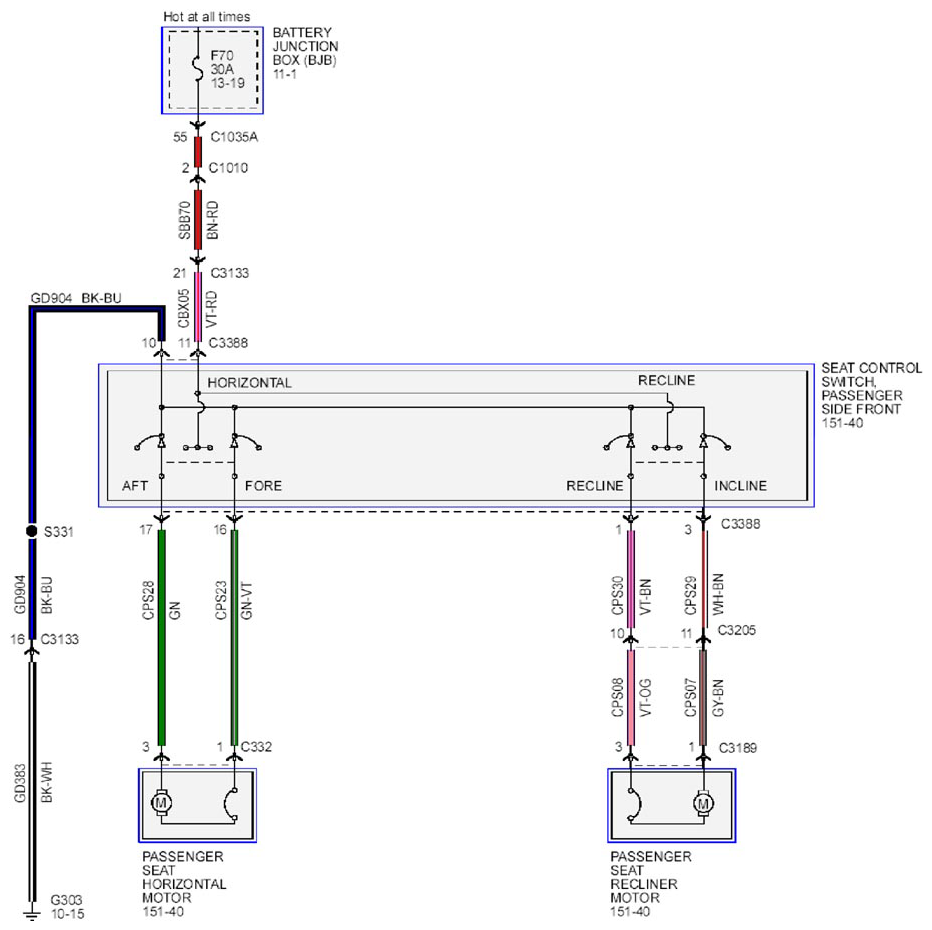

Fig 1: Power Seats Fusion Power Seat - Passenger - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
