Power Distribution: Notes

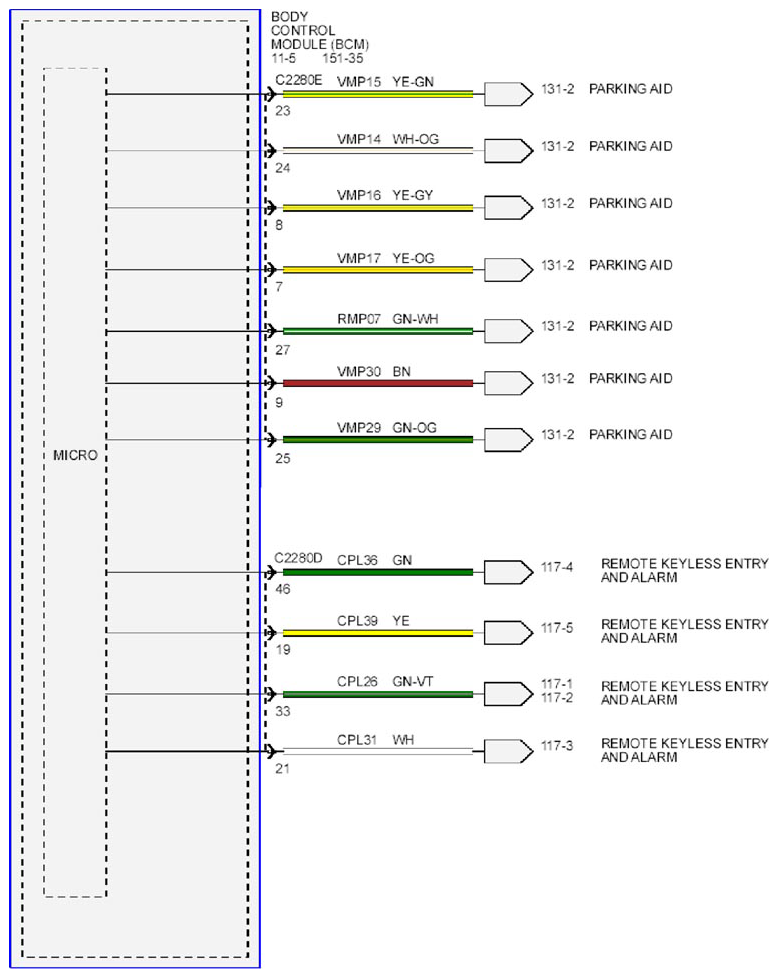

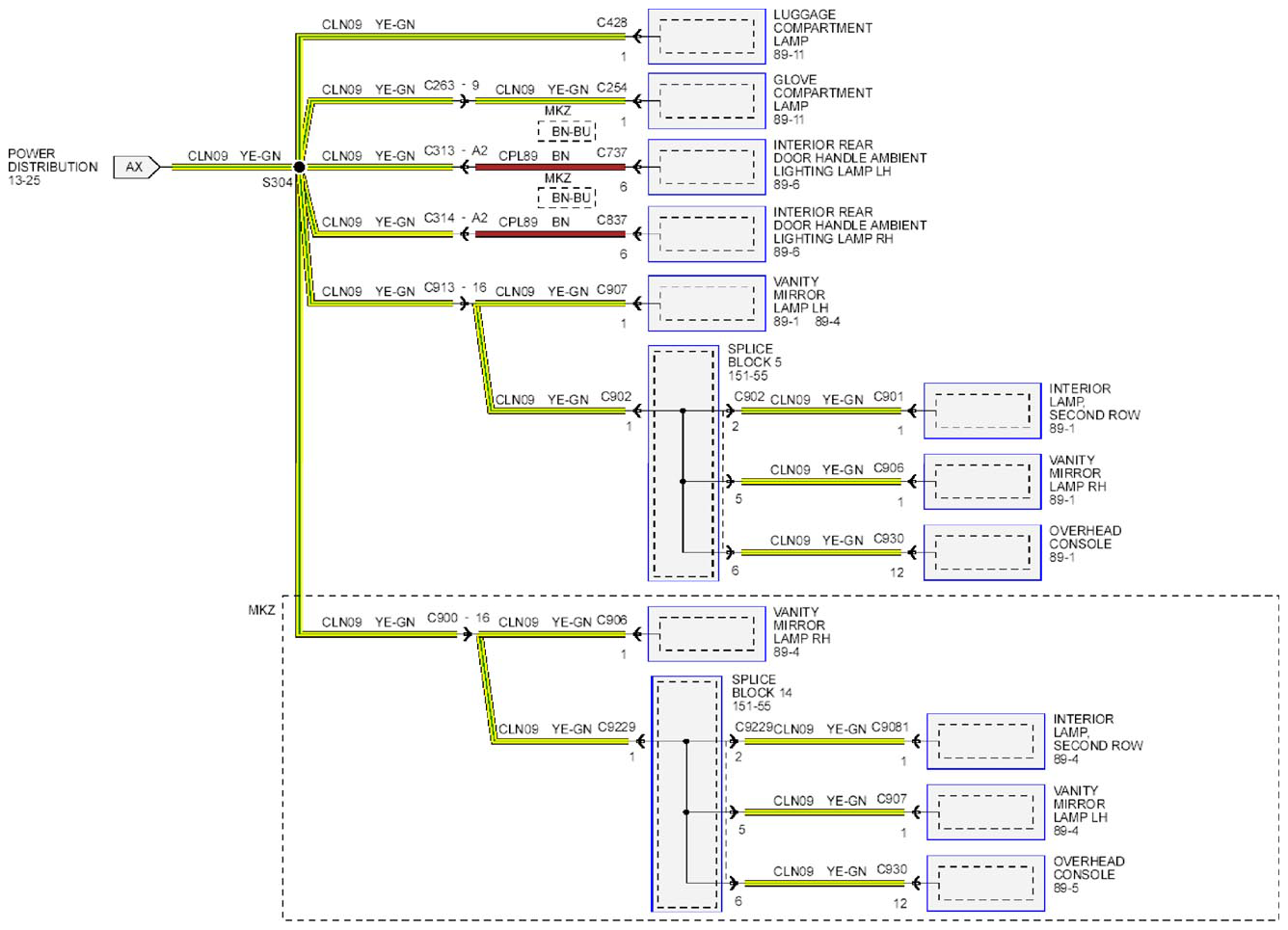

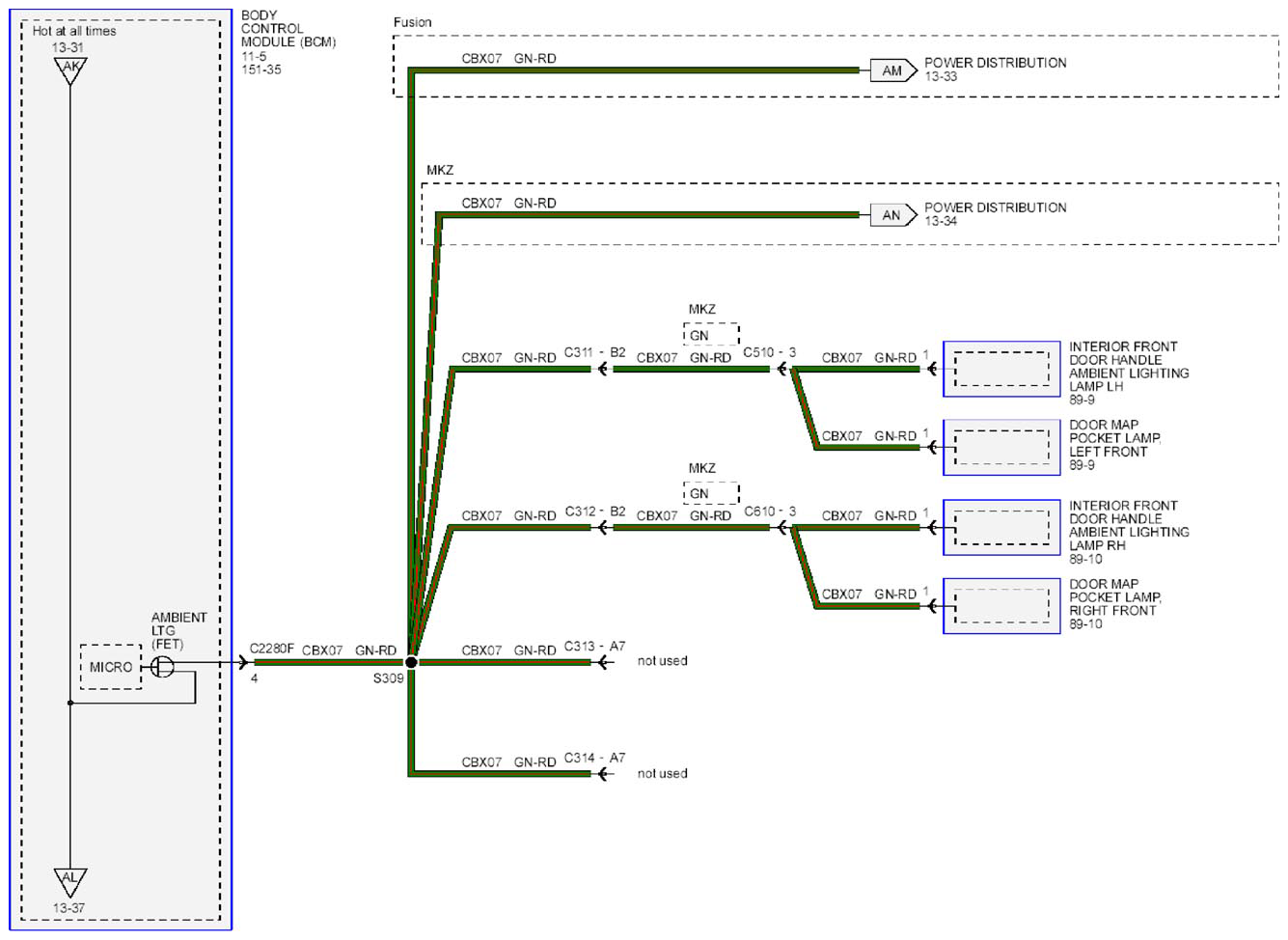

Fig 1: Power Distribution - Wiring Diagram (1 Of 18)

Courtesy of FORD MOTOR CO.

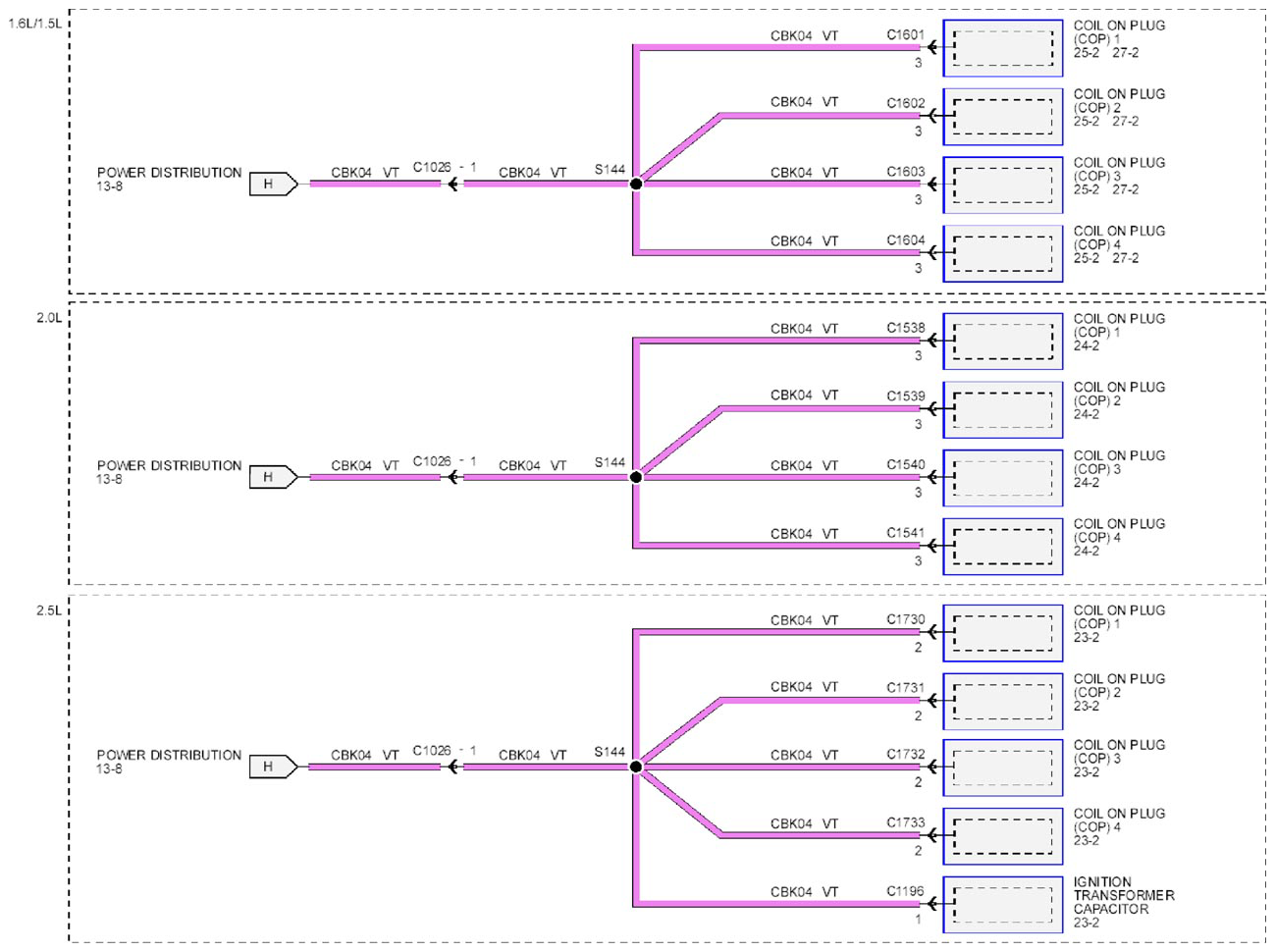

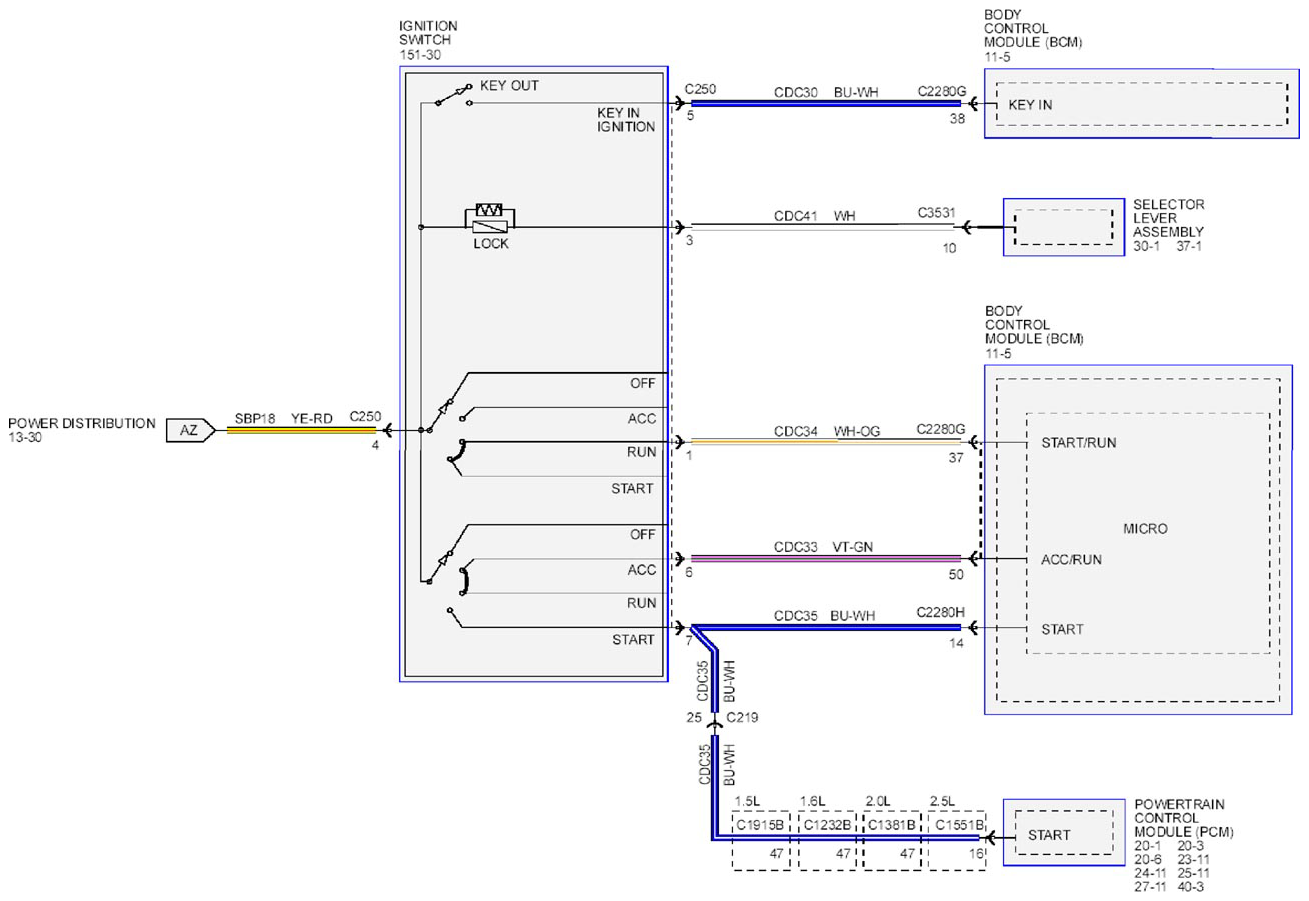

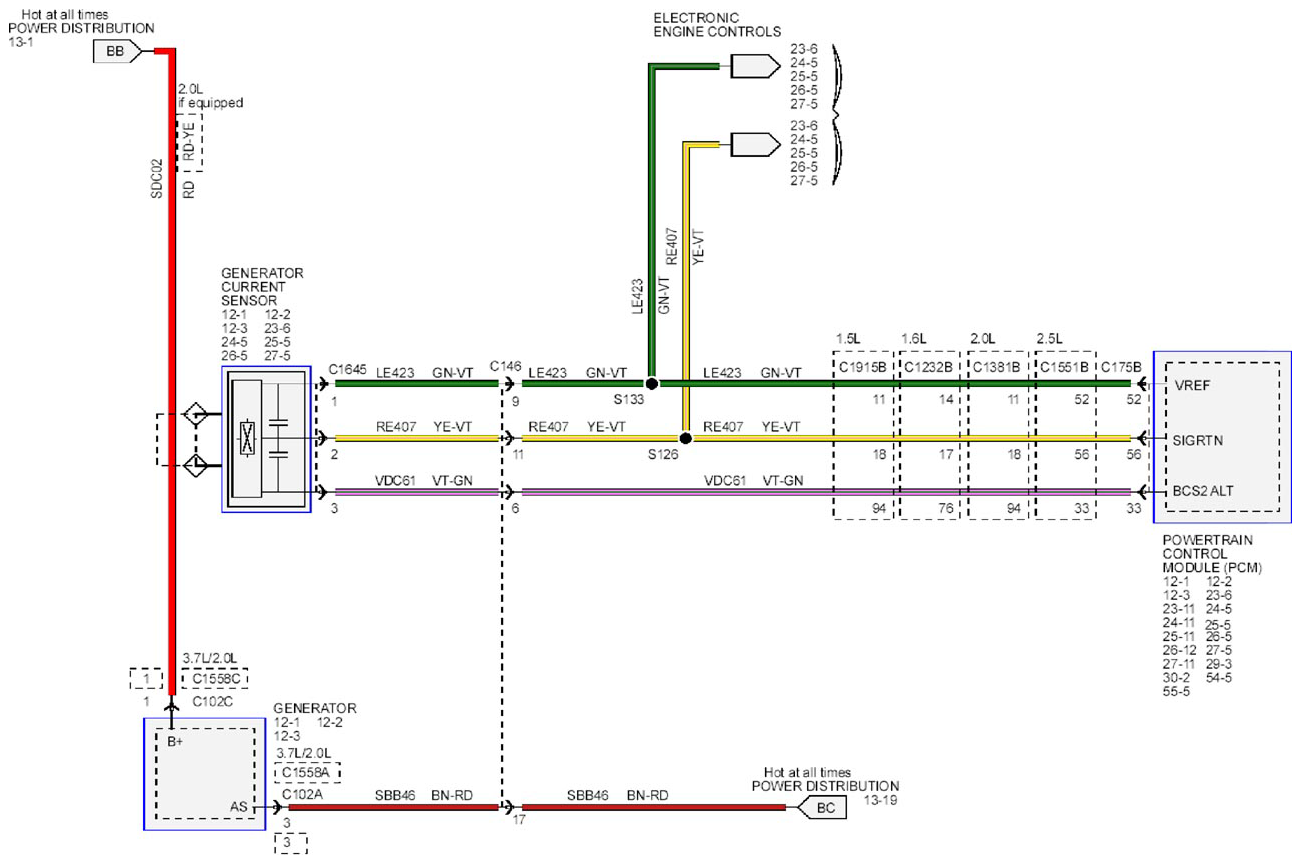

Fig 2: Power Distribution - Wiring Diagram (2 Of 18)

Courtesy of FORD MOTOR CO.

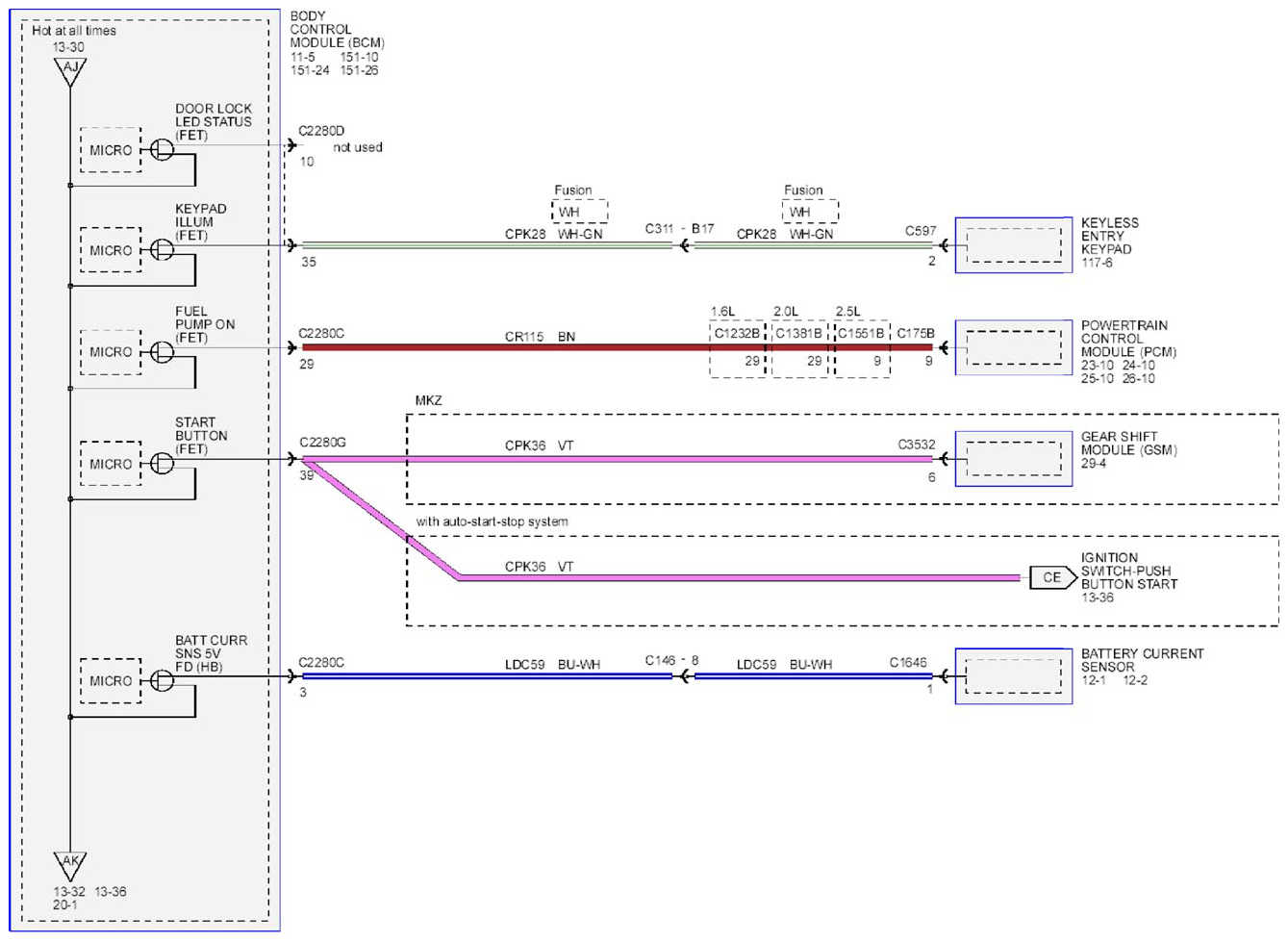

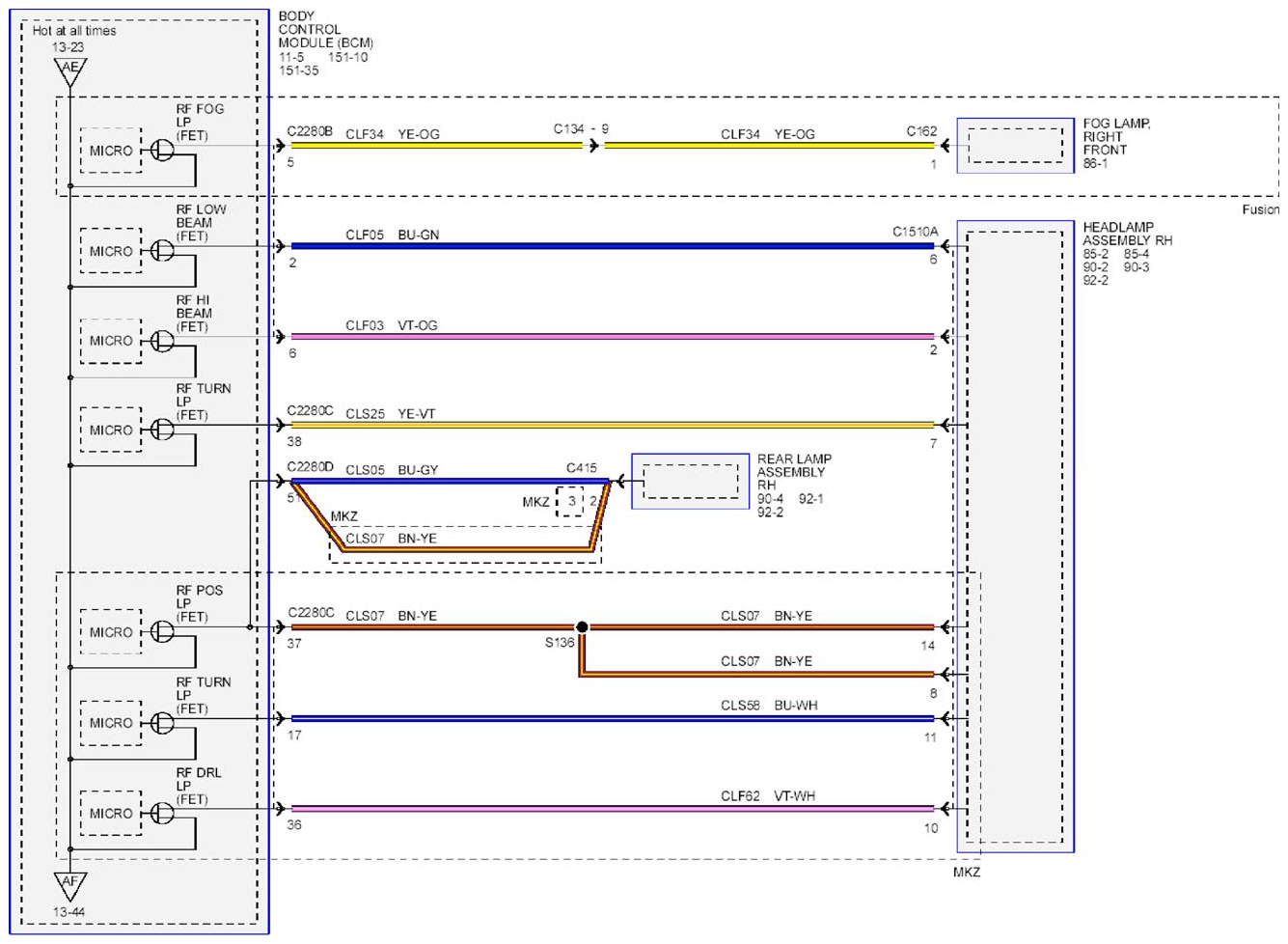

Fig 3: Power Distribution - Wiring Diagram (3 Of 18)

Courtesy of FORD MOTOR CO.

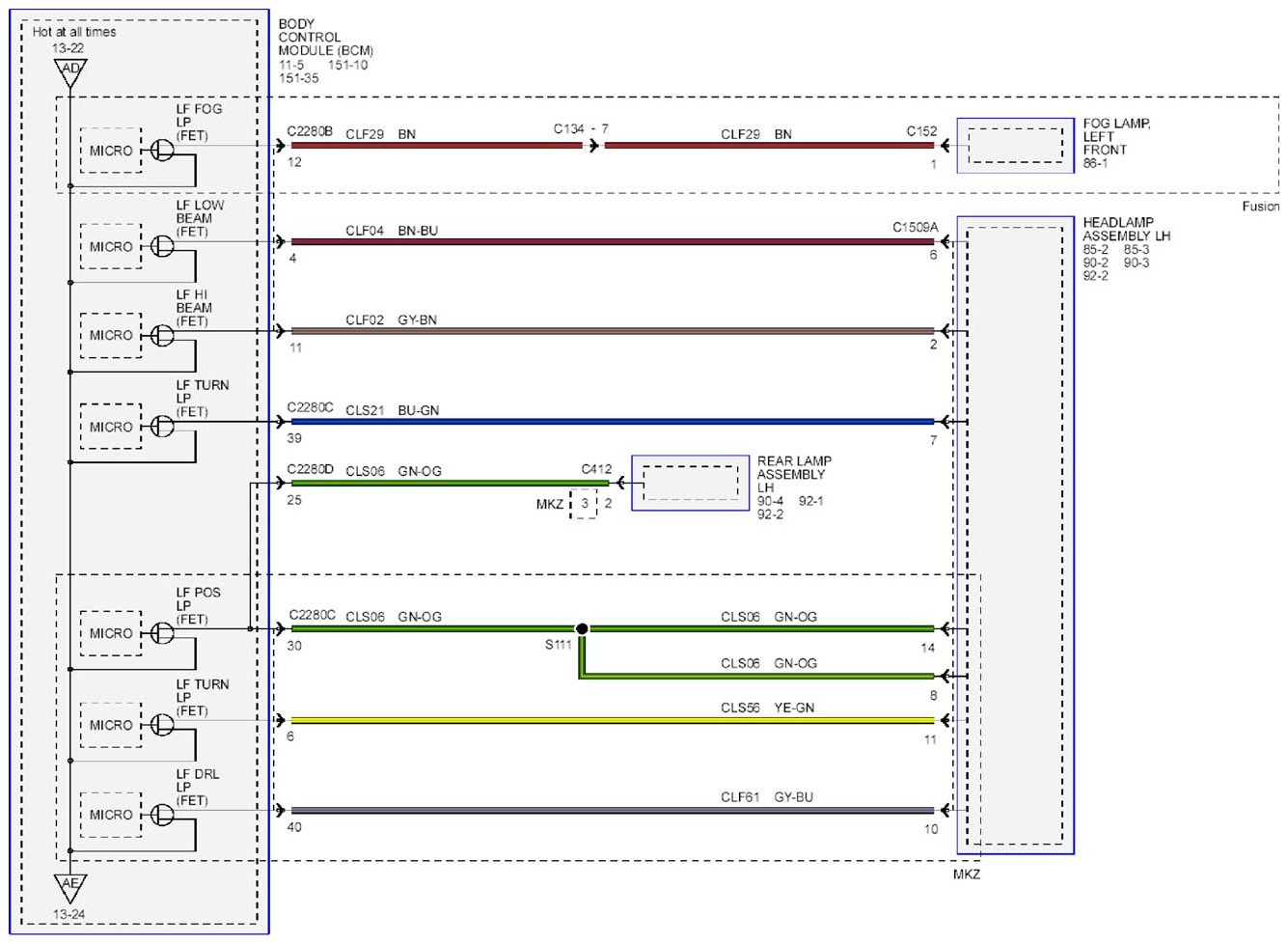

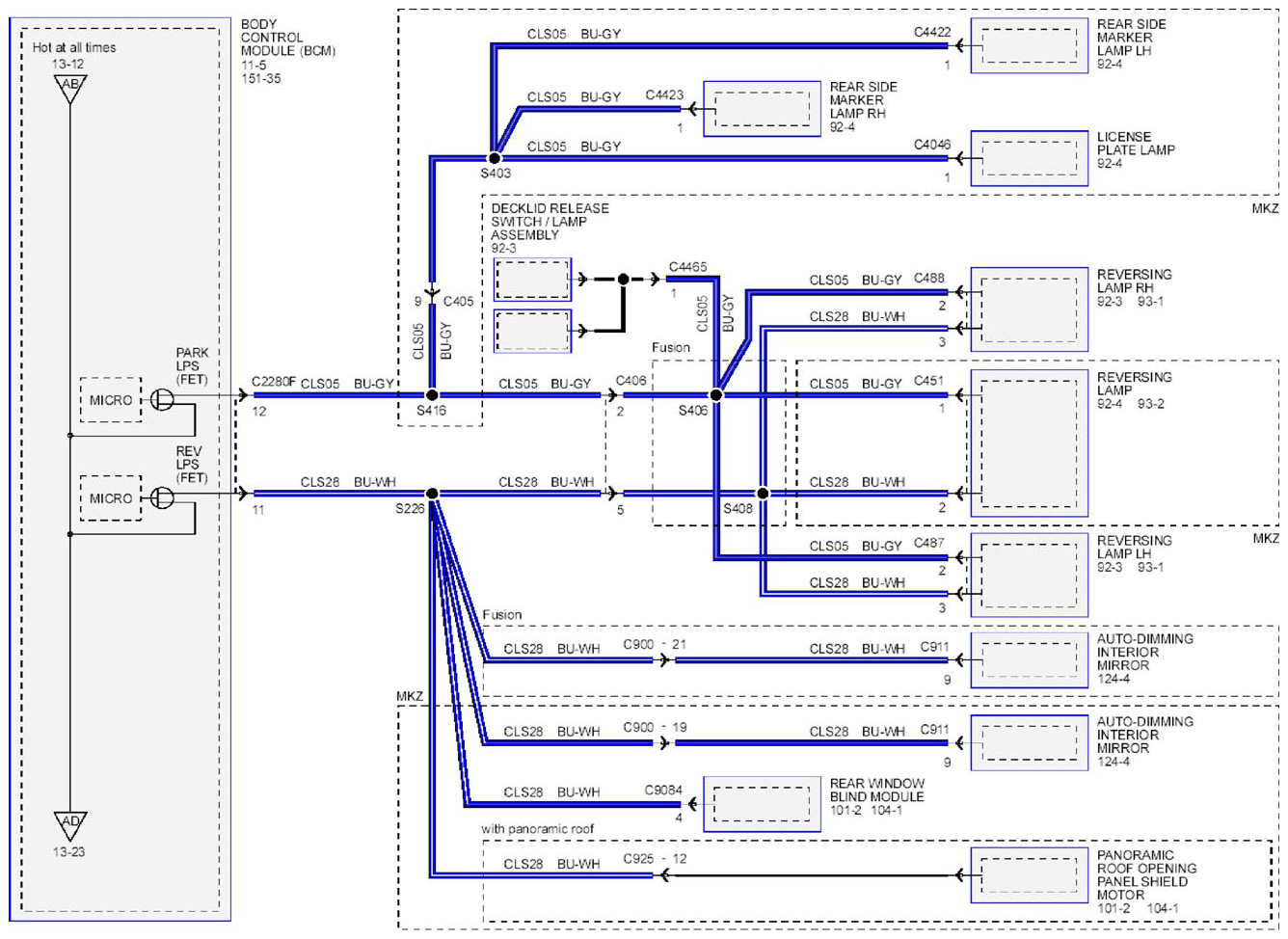

Fig 4: Power Distribution - Wiring Diagram (4 Of 18)

Courtesy of FORD MOTOR CO.

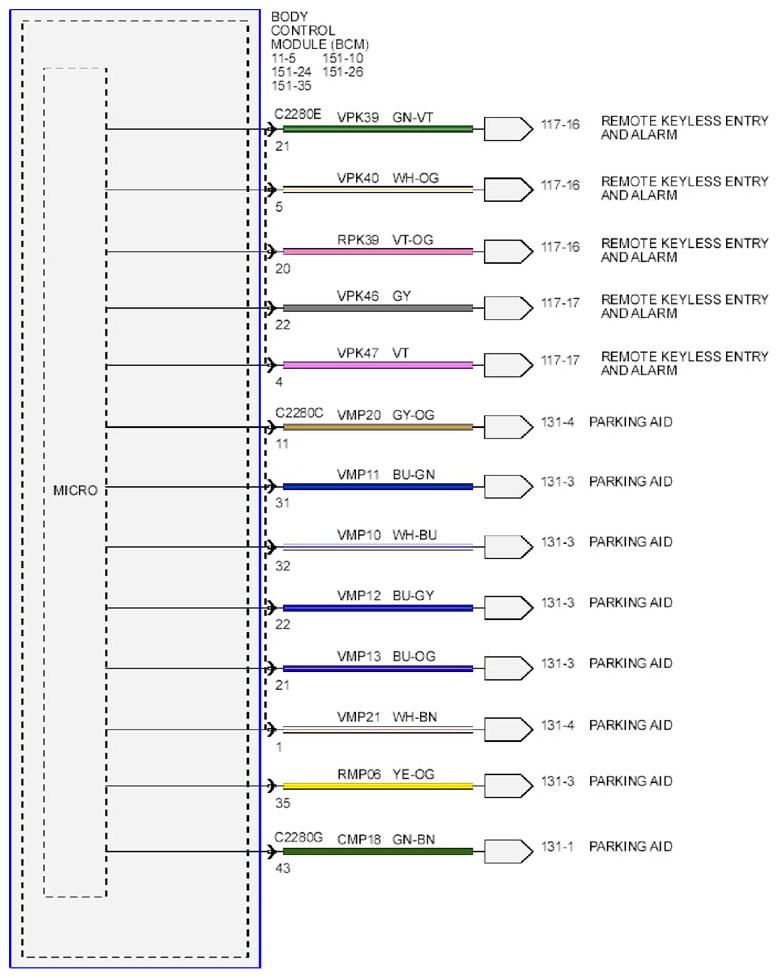

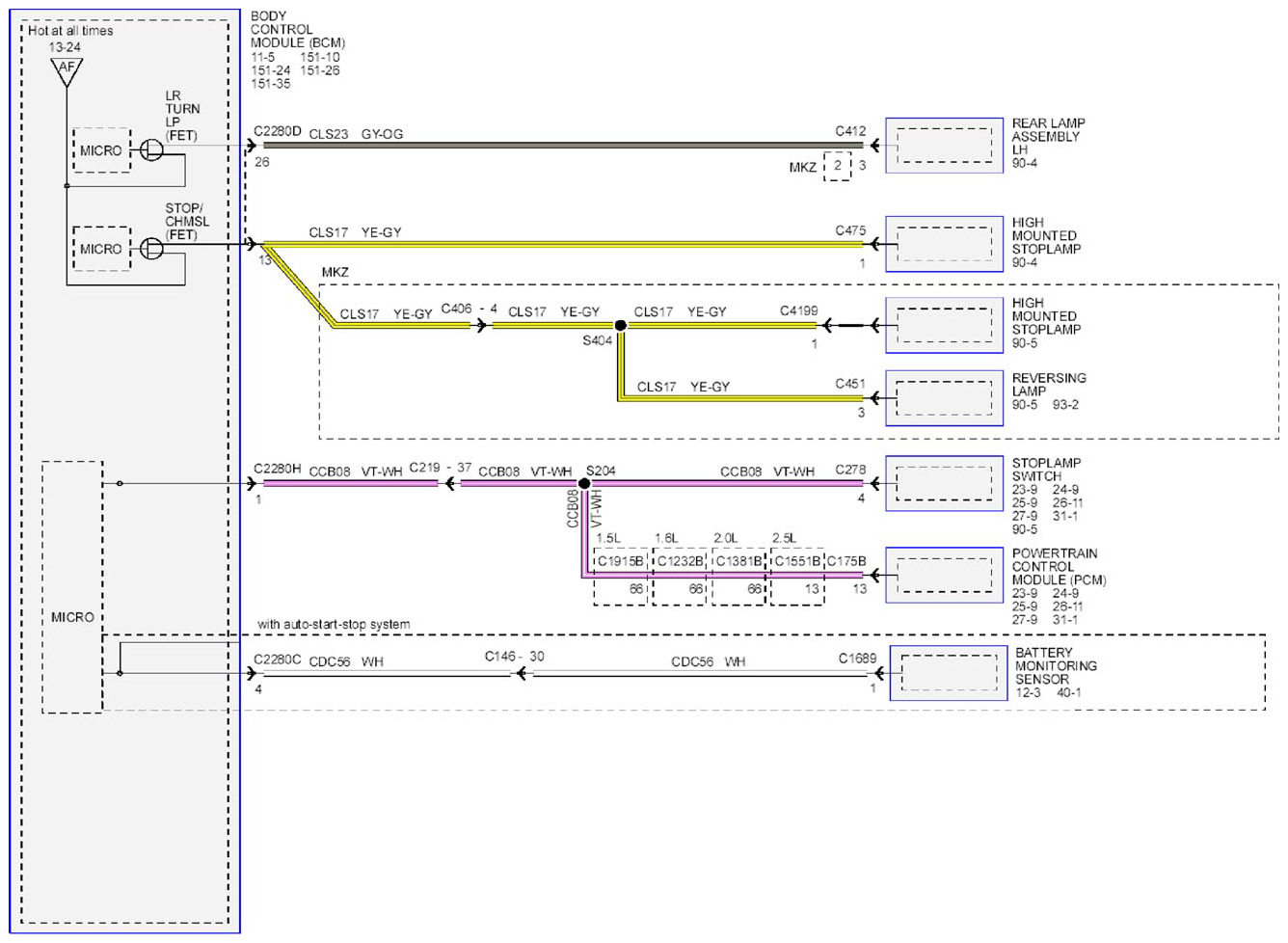

Fig 5: Power Distribution - Wiring Diagram (5 Of 18)

Courtesy of FORD MOTOR CO.

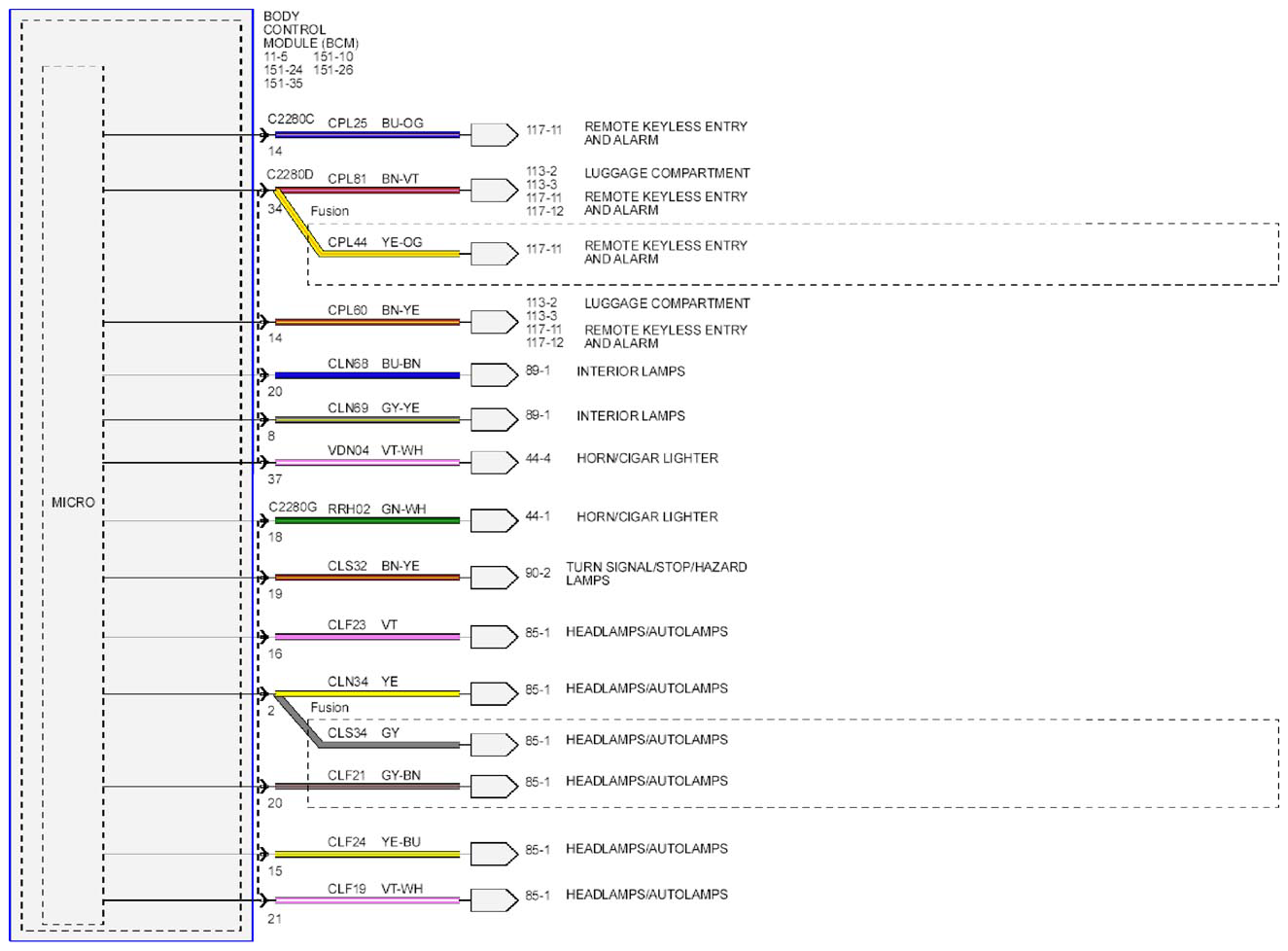

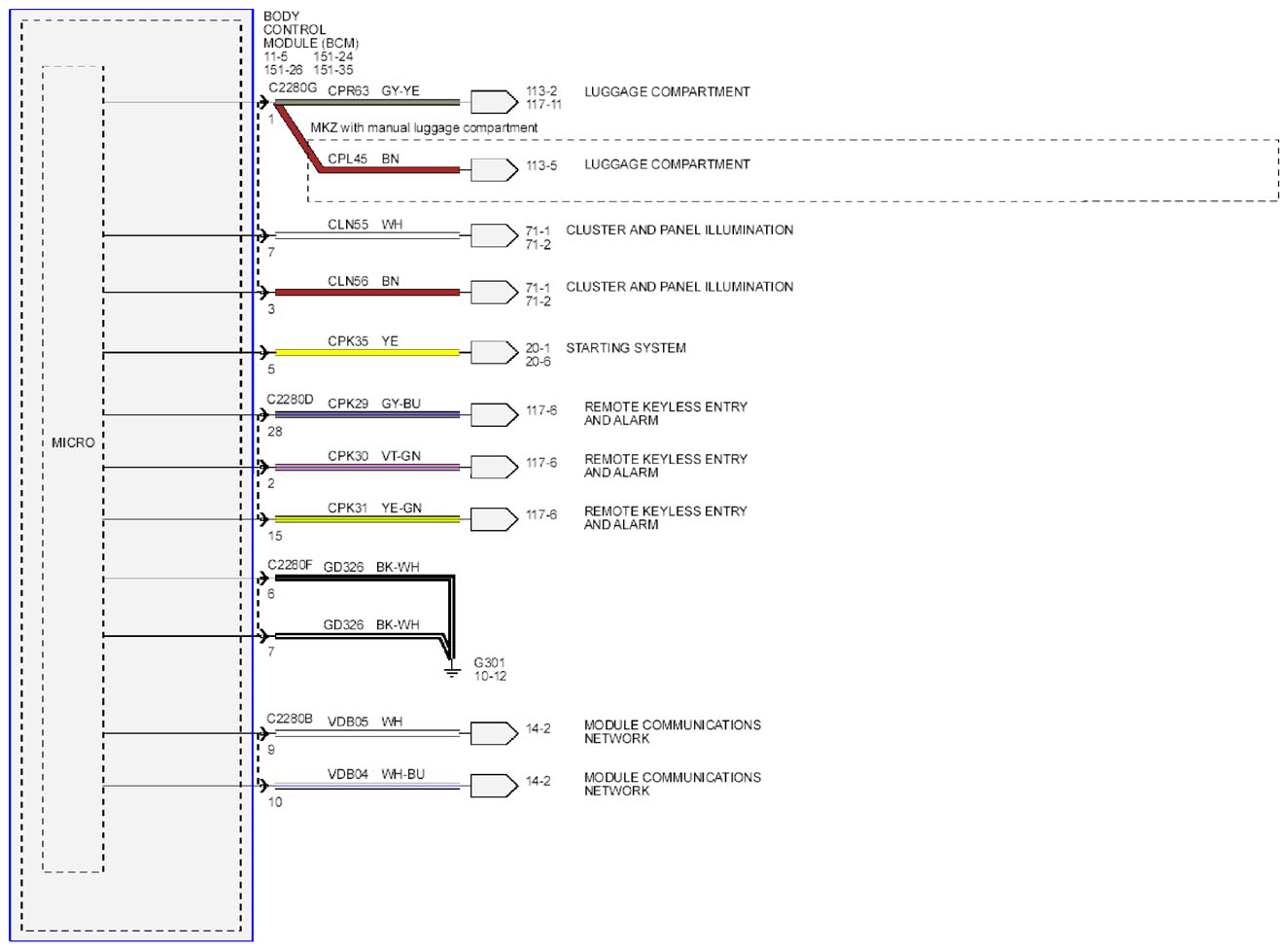

Fig 6: Power Distribution - Wiring Diagram (6 Of 18)

Courtesy of FORD MOTOR CO.

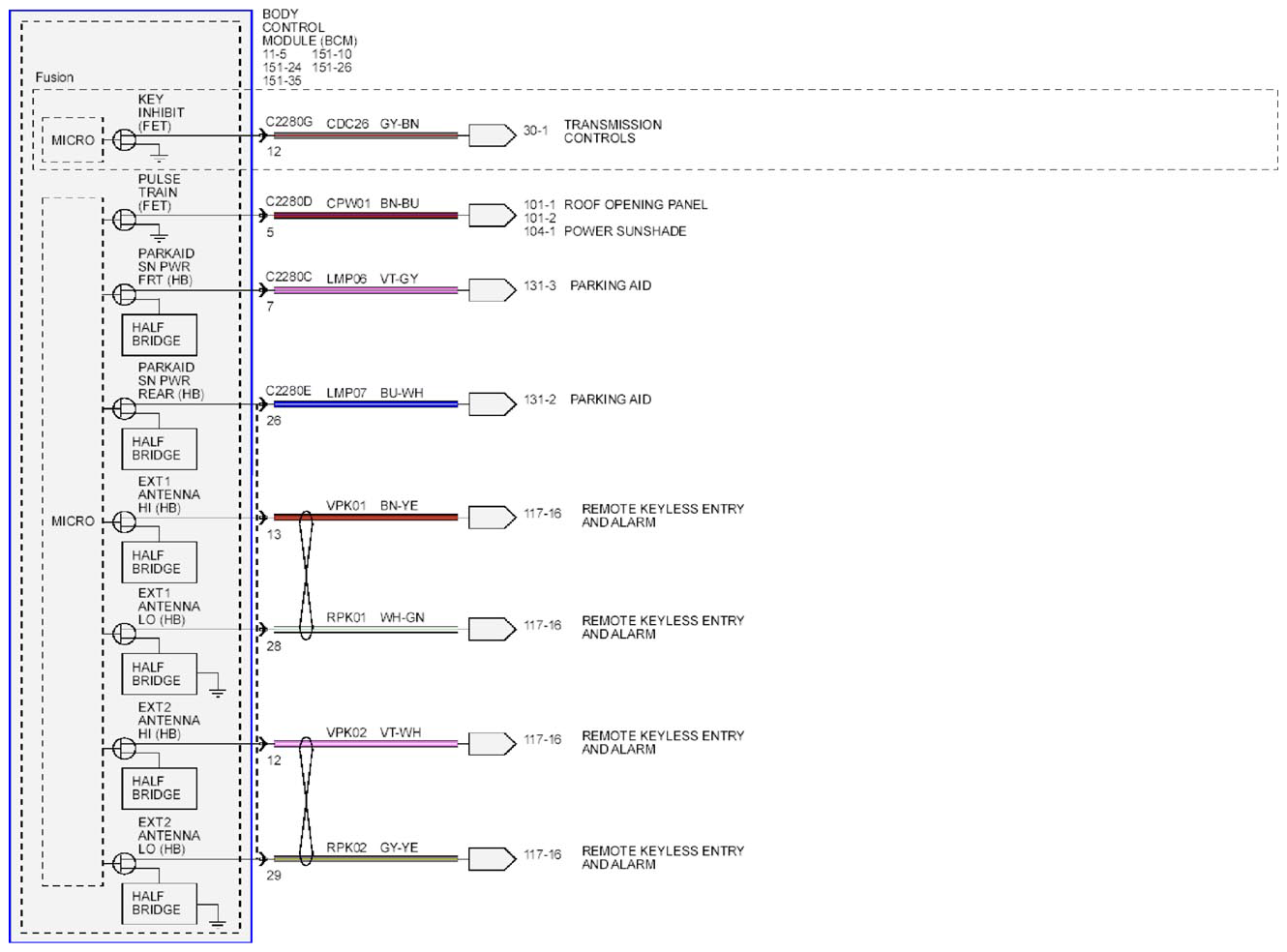

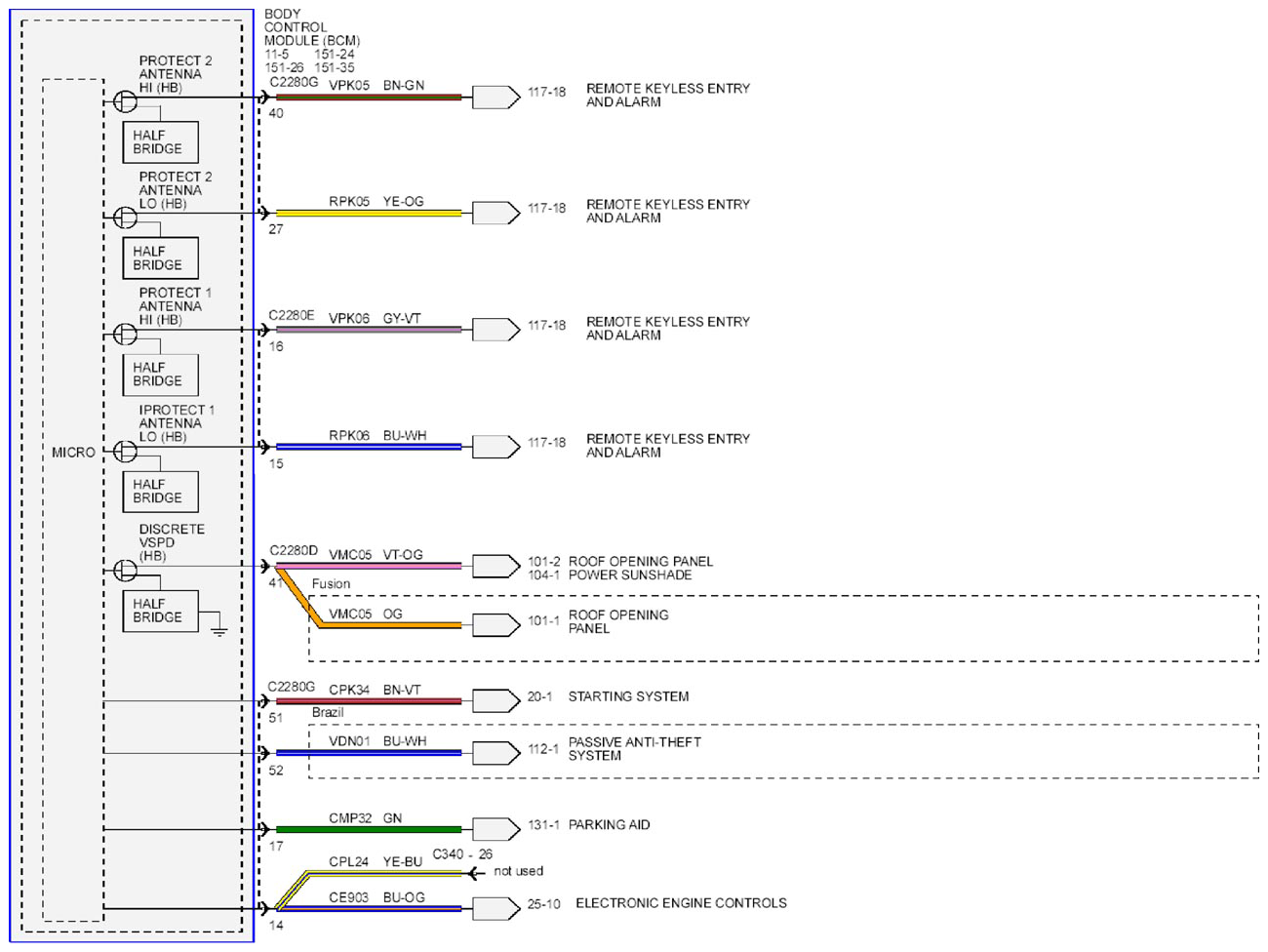

Fig 7: Power Distribution - Wiring Diagram (7 Of 18)

Courtesy of FORD MOTOR CO.

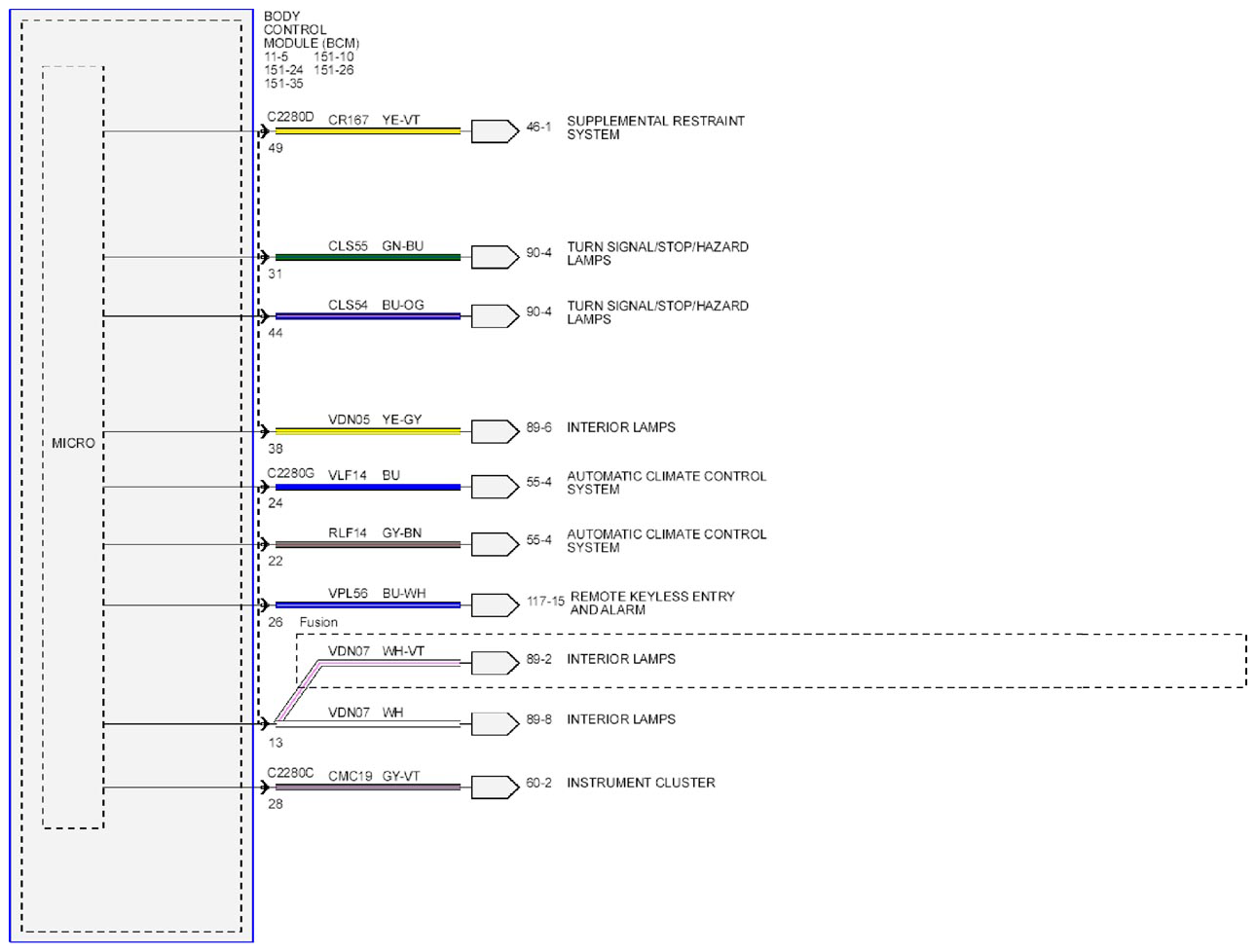

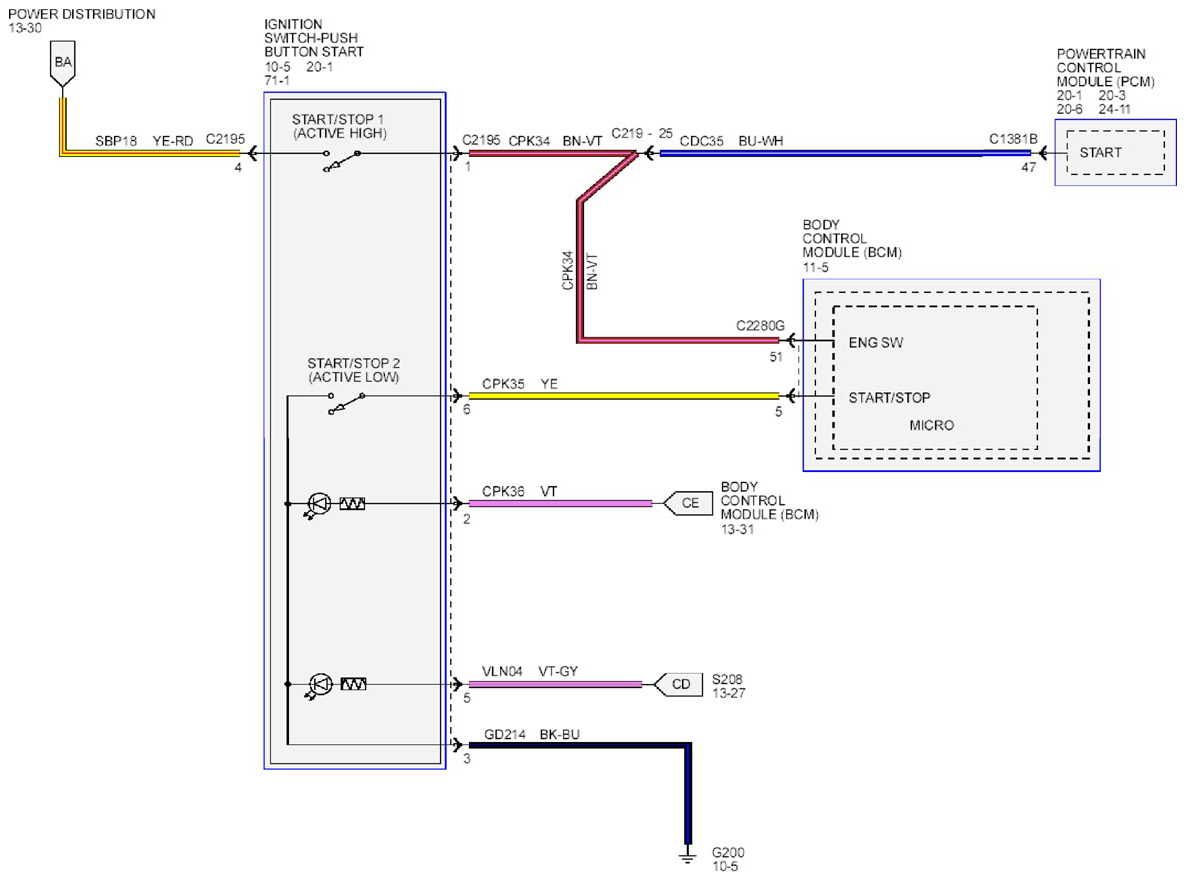

Fig 8: Power Distribution - Wiring Diagram (8 Of 18)

Courtesy of FORD MOTOR CO.

Fig 9: Power Distribution - Wiring Diagram (9 Of 18)

Courtesy of FORD MOTOR CO.

Fig 10: Power Distribution - Wiring Diagram (10 Of 18)

Courtesy of FORD MOTOR CO.

Fig 11: Power Distribution - Wiring Diagram (11 Of 18)

Courtesy of FORD MOTOR CO.

Fig 12: Power Distribution - Wiring Diagram (12 Of 18)

Courtesy of FORD MOTOR CO.

Fig 13: Power Distribution - Wiring Diagram (13 Of 18)

Courtesy of FORD MOTOR CO.

Fig 14: Power Distribution - Wiring Diagram (14 Of 18)

Courtesy of FORD MOTOR CO.

Fig 15: Power Distribution - Wiring Diagram (15 Of 18)

Courtesy of FORD MOTOR CO.

Fig 16: Power Distribution - Wiring Diagram (16 Of 18)

Courtesy of FORD MOTOR CO.

Fig 17: Power Distribution - Wiring Diagram (17 Of 18)

Courtesy of FORD MOTOR CO.

Fig 18: Power Distribution - Wiring Diagram (18 Of 18)

Courtesy of FORD MOTOR CO.
