Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
Mega Fuses F2, F3, F6, F8
Mega Fuses F2, F3, F6, F8

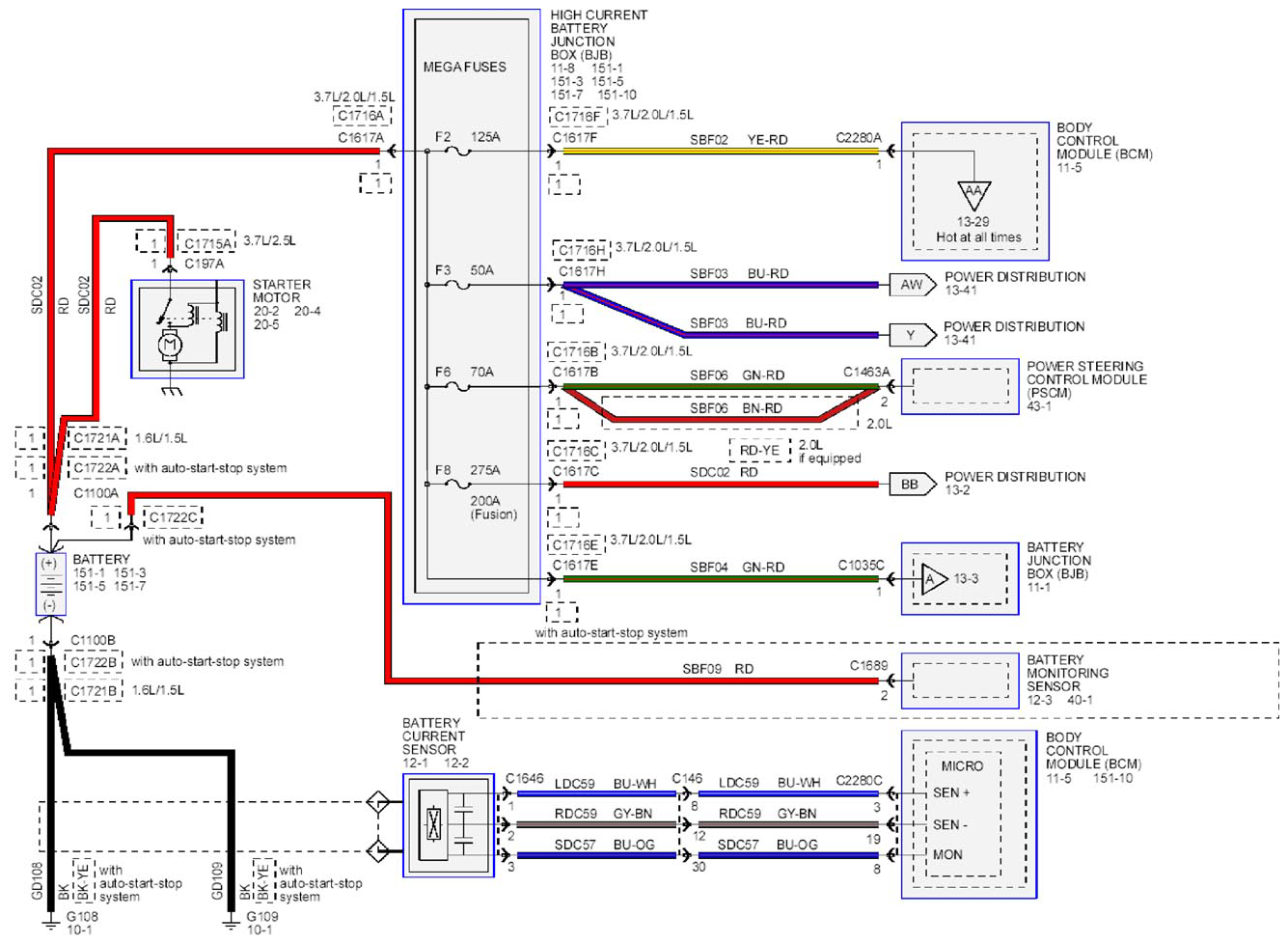

Fig 1: Power Distribution - Wiring Diagram - Mega Fuses F2, F3, F6, F8
Courtesy of FORD MOTOR CO.
