Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F65, F72, F73, F77, F80, F81, F85
F65, F72, F73, F77, F80, F81, F85

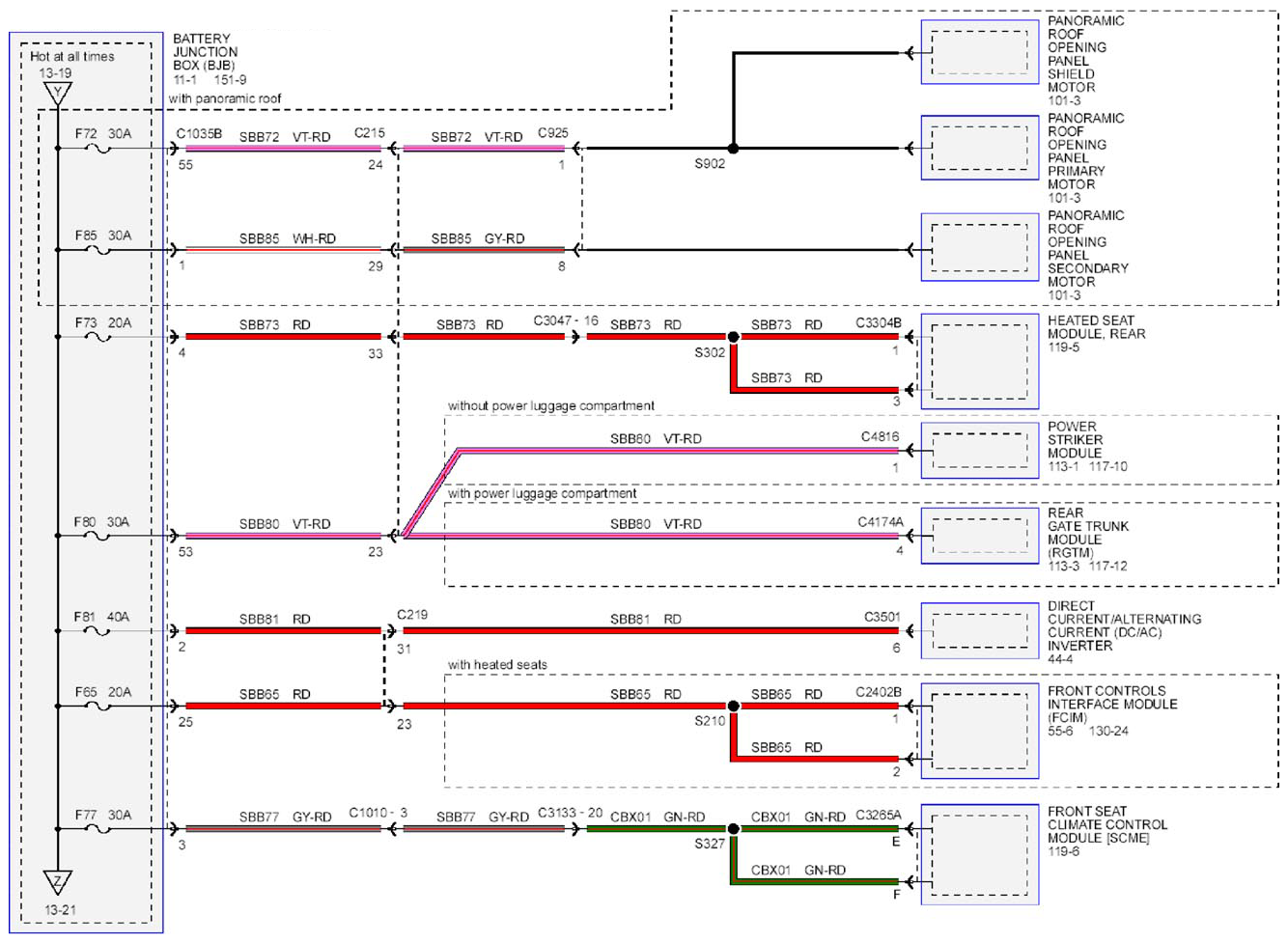

Fig 1: Power Distribution - Wiring Diagram - F65, F72, F73, F77, F80, F81, F85
Courtesy of FORD MOTOR CO.
