Home >> Ford >> 2014 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Power Distribution >> F5, F10, F16, F17

F5, F10, F16, F17

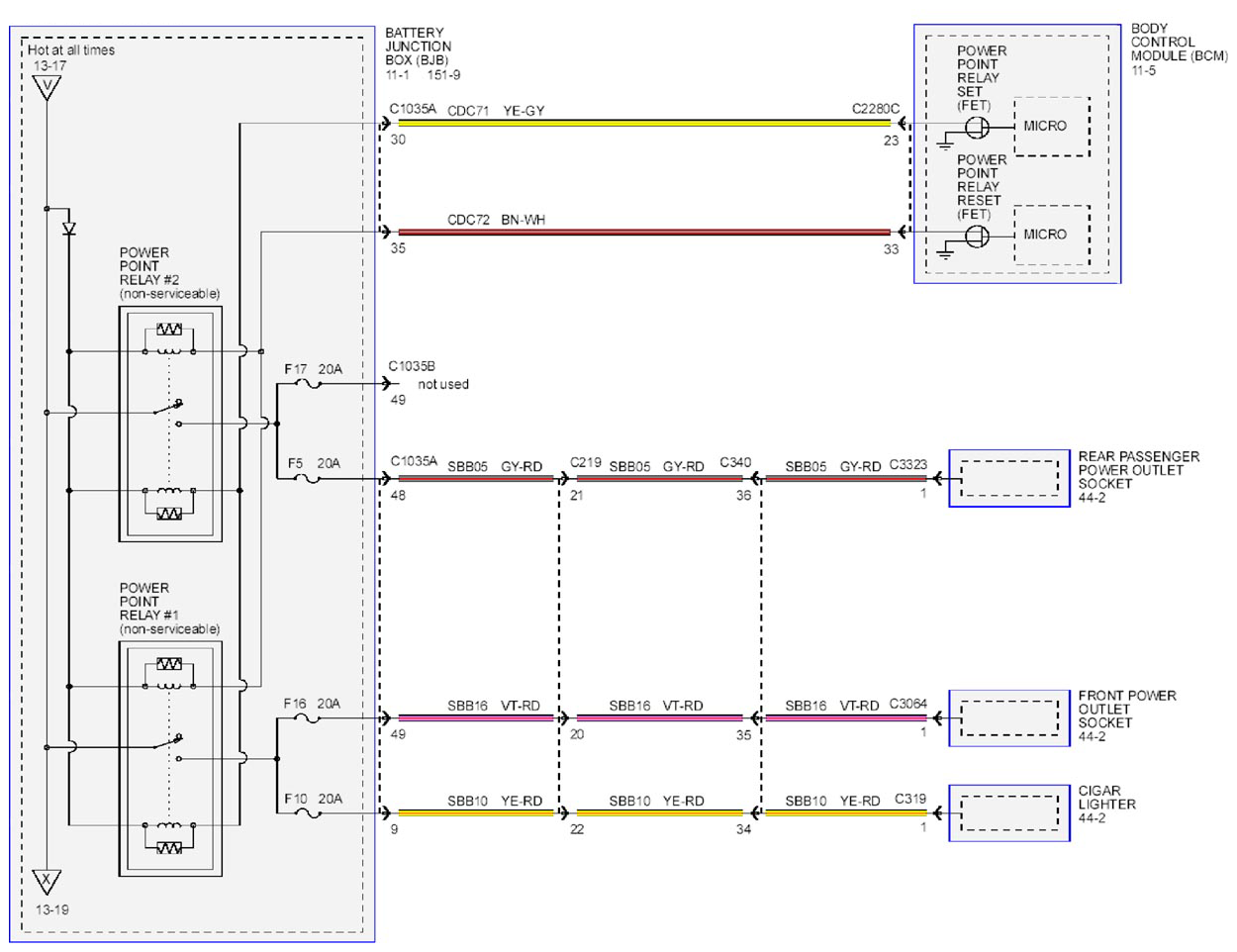

Fig 1: Power Distribution - Wiring Diagram - F5, F10, F16, F17

G09264632

Courtesy of FORD MOTOR CO.
