Ford
>>
2014
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F46, F47, F69, F70, F74, F82
F46, F47, F69, F70, F74, F82

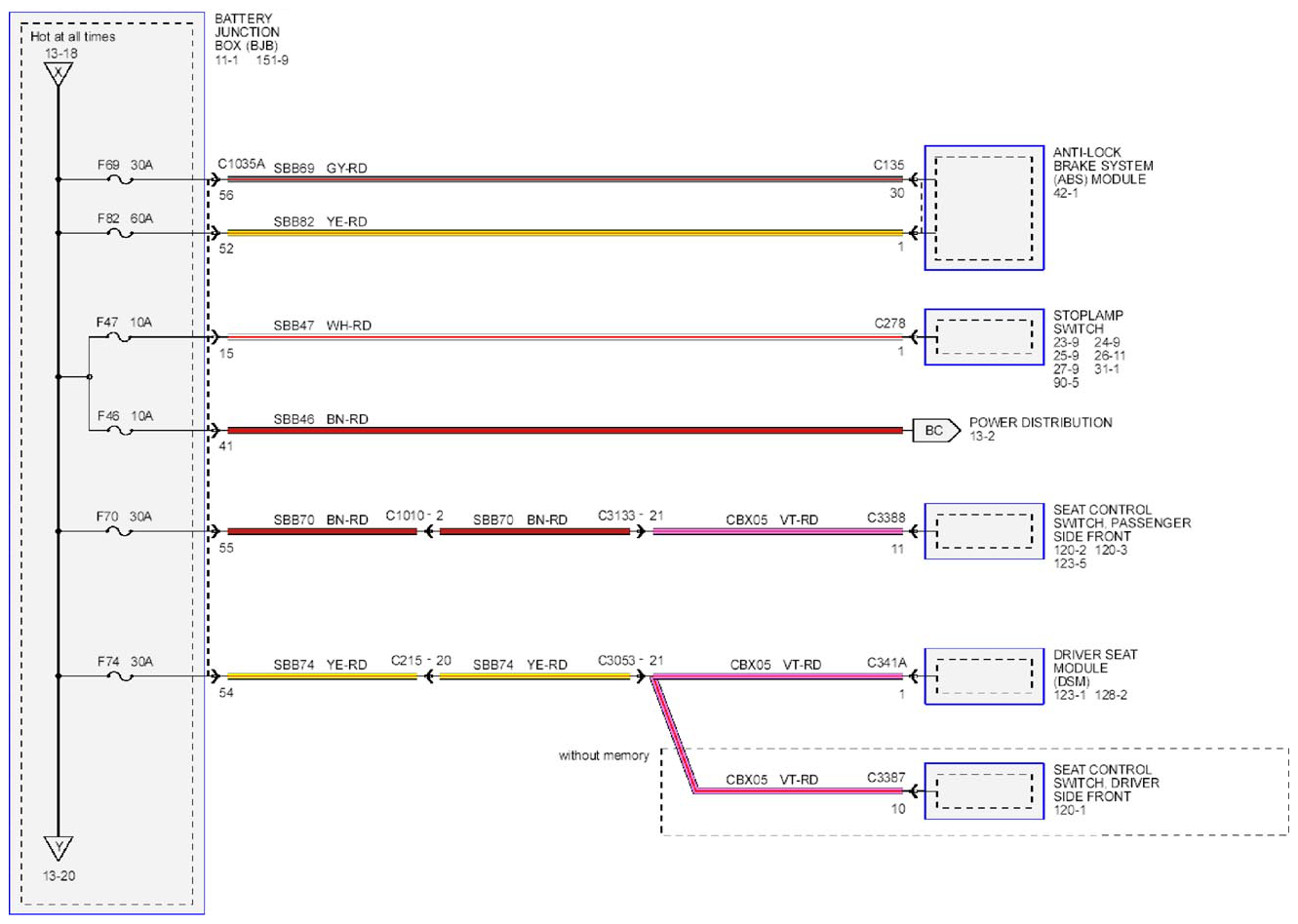

Fig 1: Power Distribution - Wiring Diagram - F46, F47, F69, F70, F74, F82
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
