Power Distribution: F24

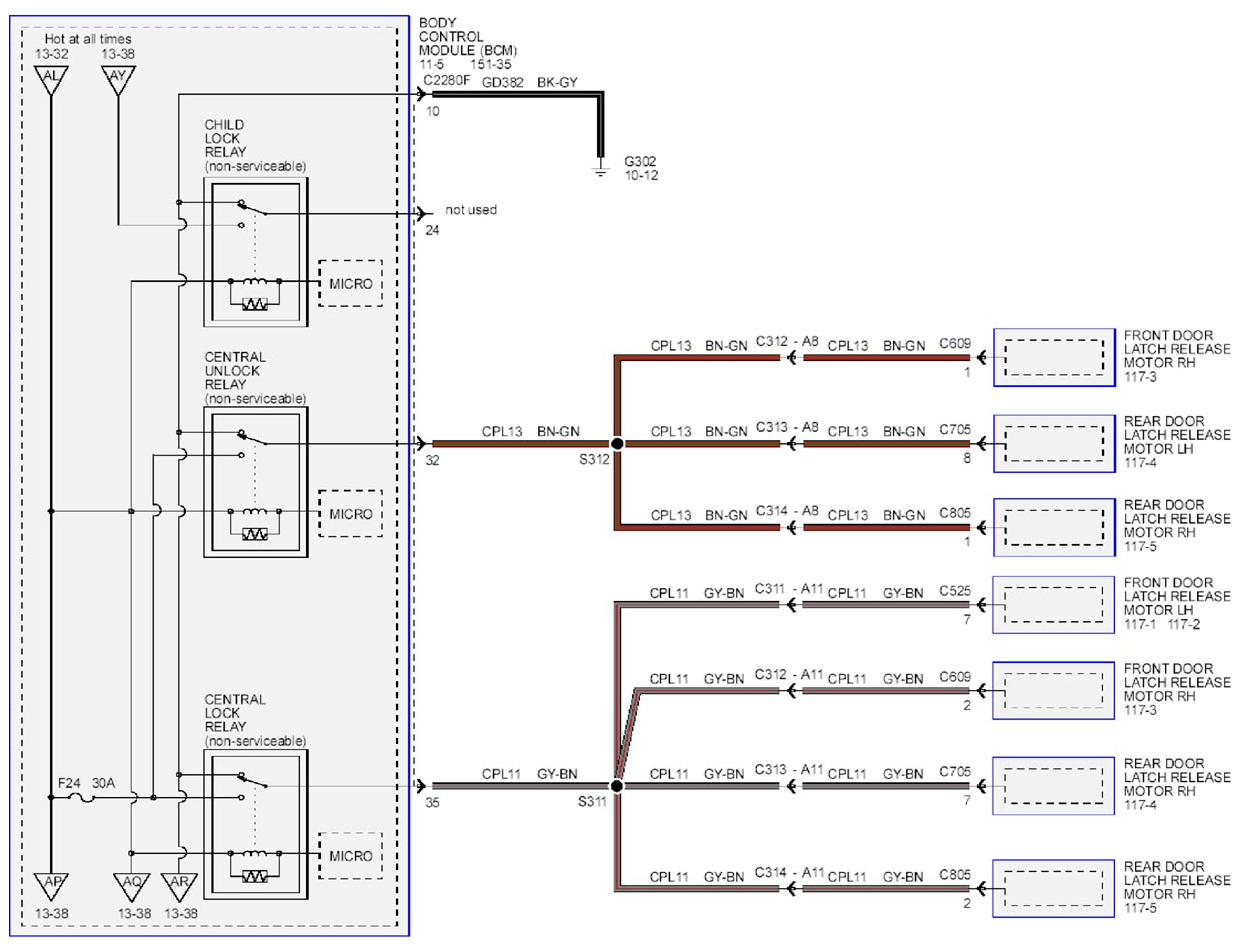

Fig 1: Power Distribution - Wiring Diagram - F24

G09264651

Courtesy of FORD MOTOR CO.
