OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F19, F22, F36, F37
F19, F22, F36, F37

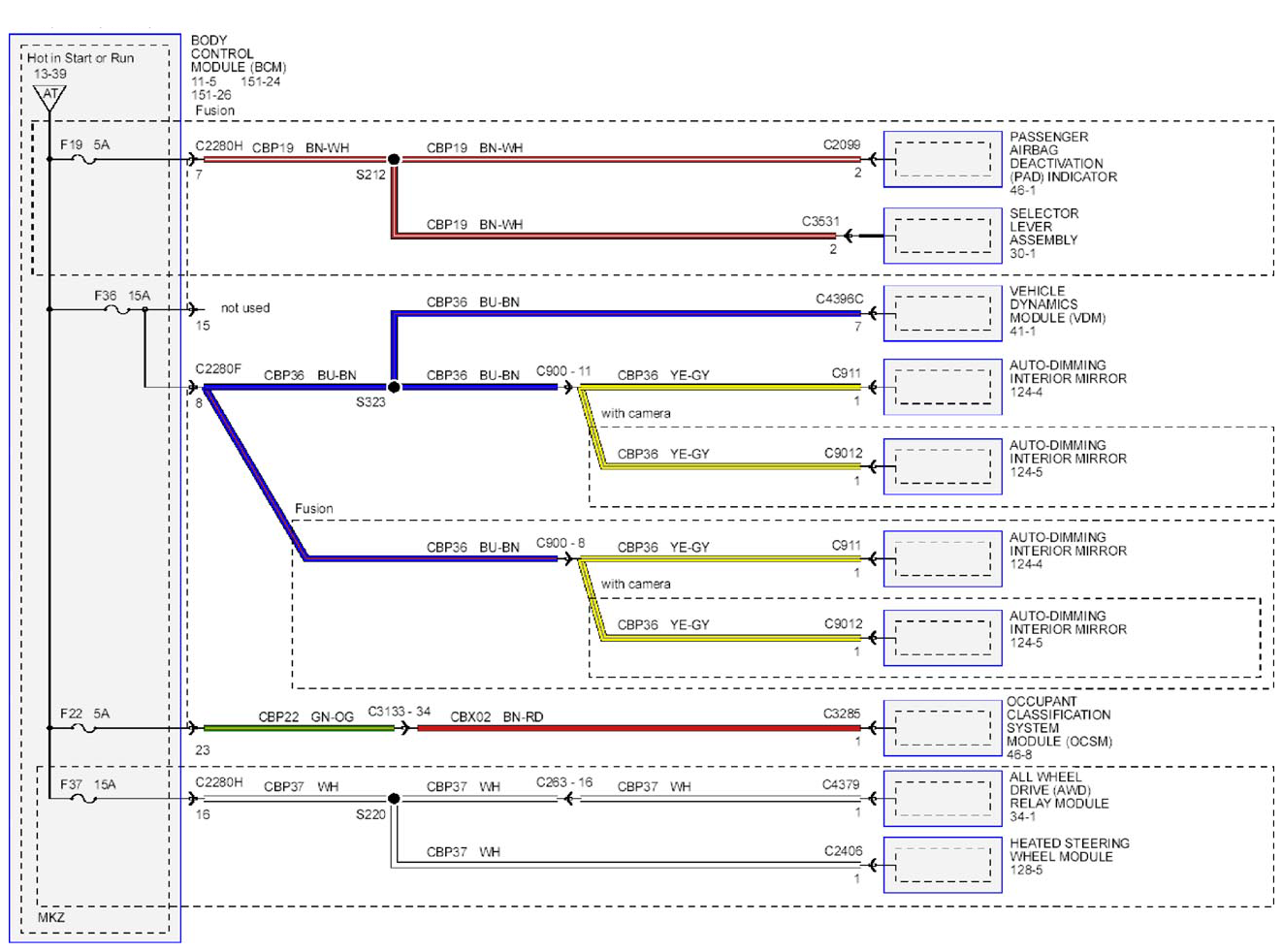

Fig 1: Power Distribution - Wiring Diagram - F19, F22, F36, F37
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
