Ford
>>
2014
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F19, F20, F21, F25, F26
F19, F20, F21, F25, F26

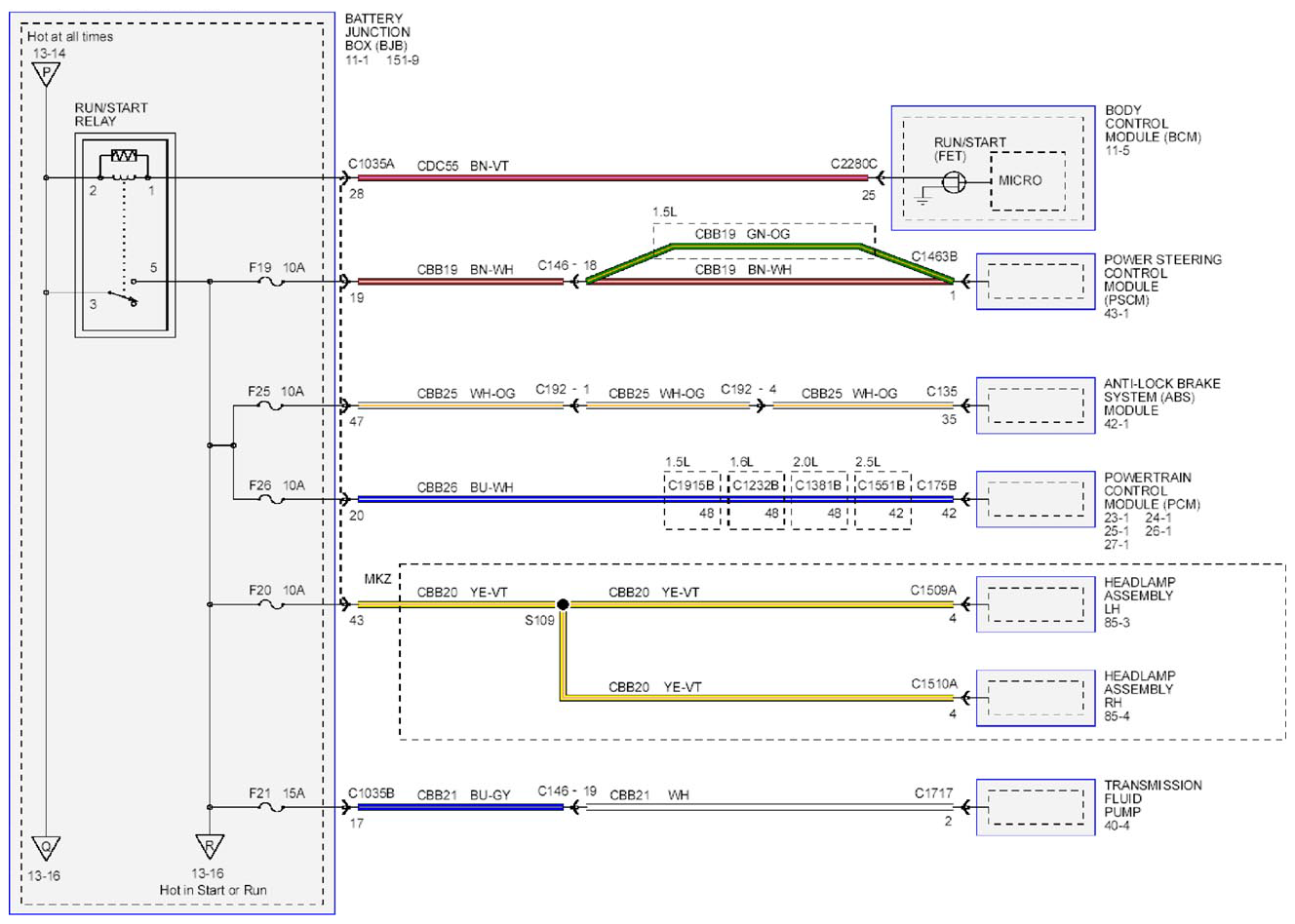

Fig 1: Power Distribution - Wiring Diagram - F19, F20, F21, F25, F26
