Power Distribution
>>
F18, F37, F62, F67, F84
F18, F37, F62, F67, F84

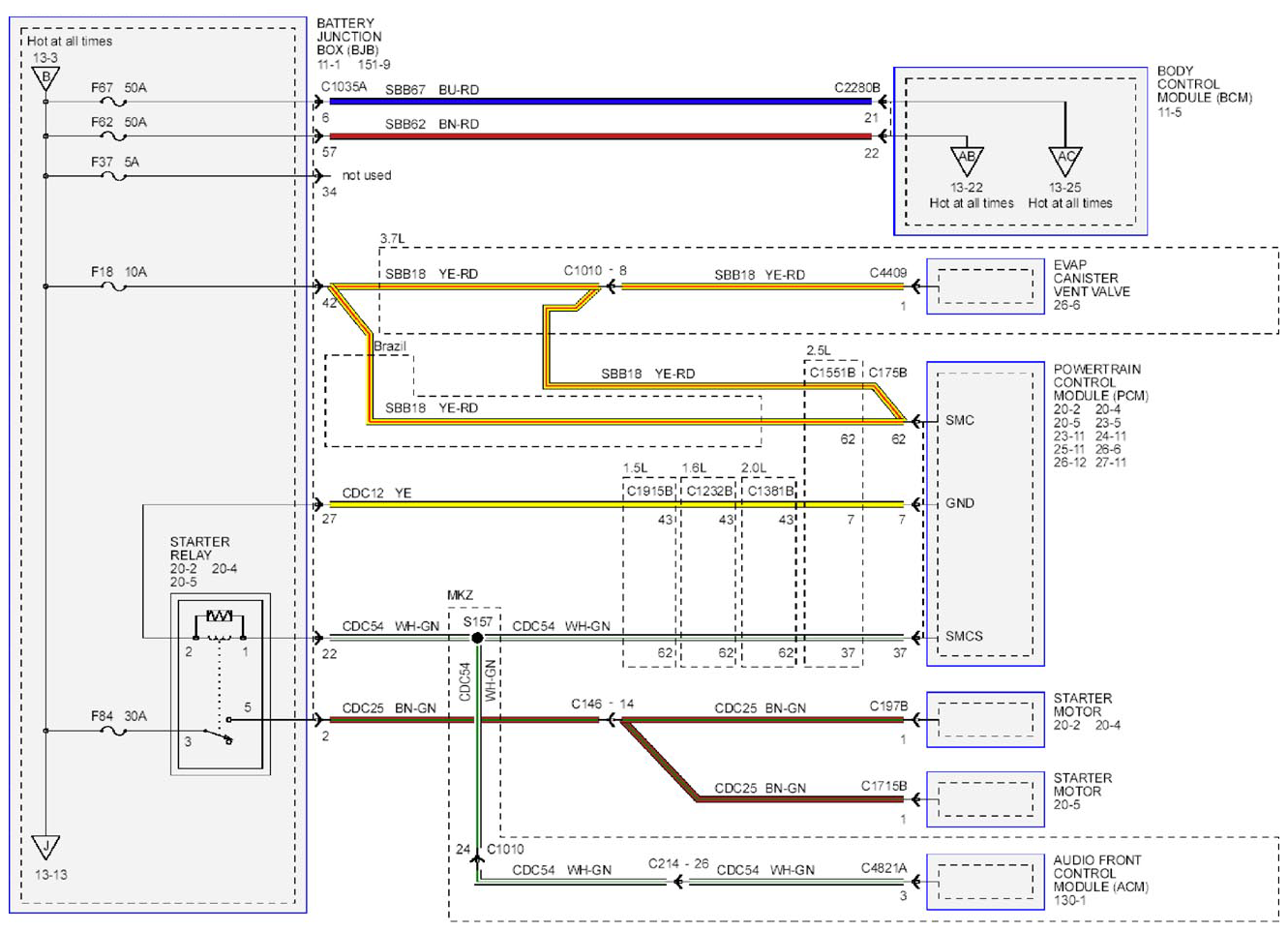

Fig 1: Power Distribution - Wiring Diagram - F18, F37, F62, F67, F84
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
