Power Distribution: F1

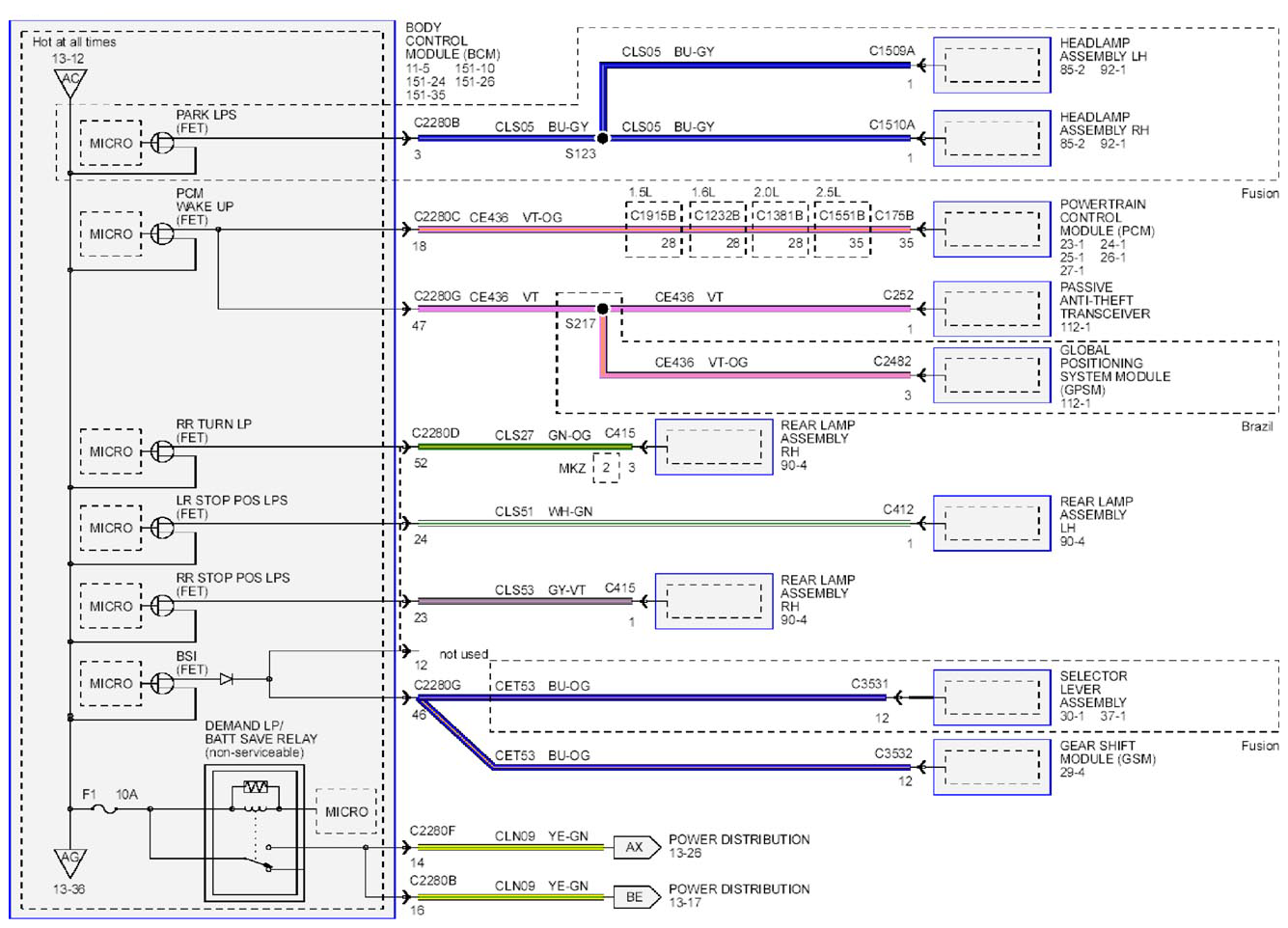

Fig 1: Power Distribution - Wiring Diagram - F1

G09264639

Courtesy of FORD MOTOR CO.
