Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F1, F3, F54, F55, F76, F83
F1, F3, F54, F55, F76, F83

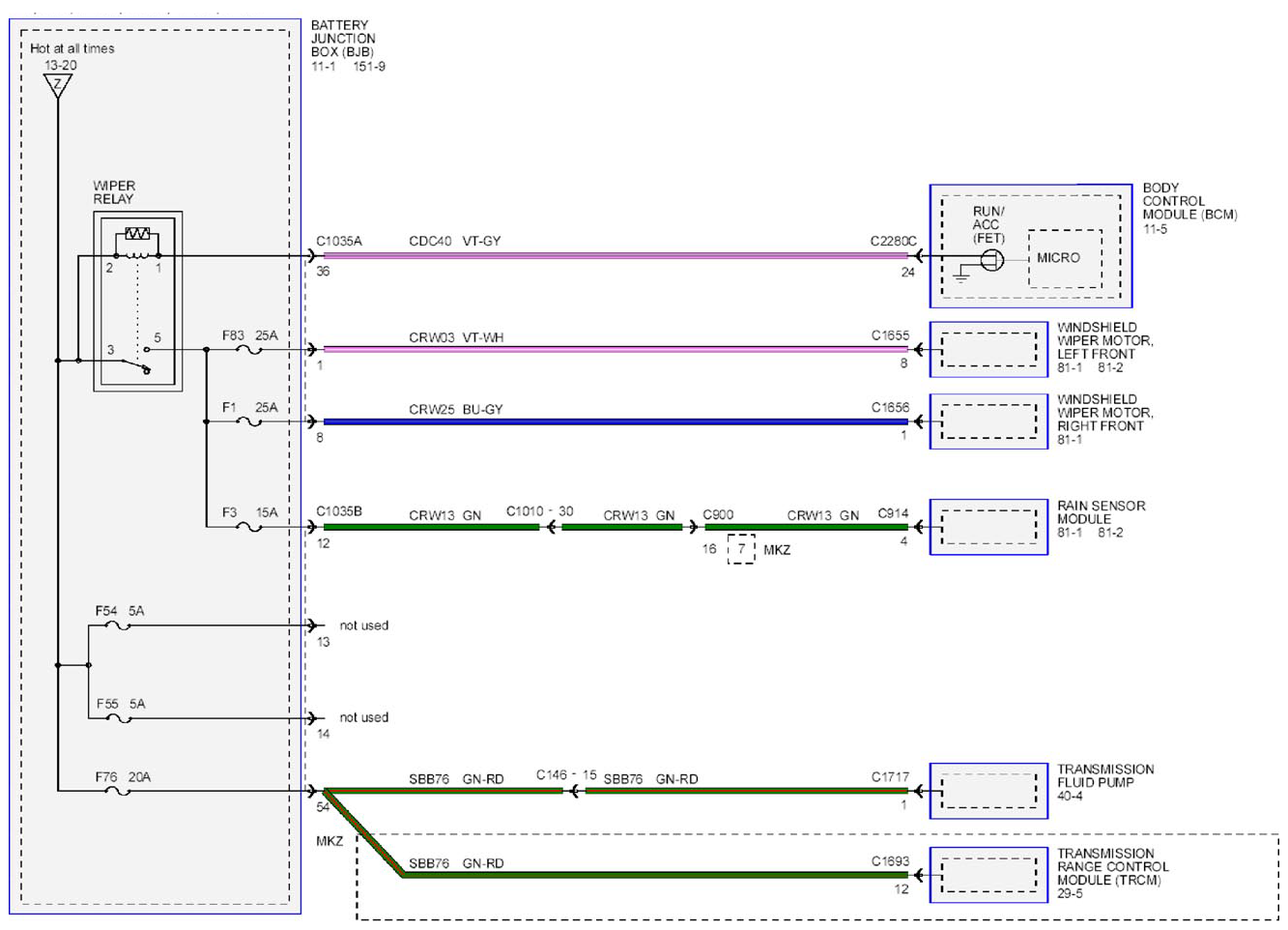

Fig 1: Power Distribution - Wiring Diagram - F1, F3, F54, F55, F76, F83
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
