1.5L, 1.6L, 2.0L

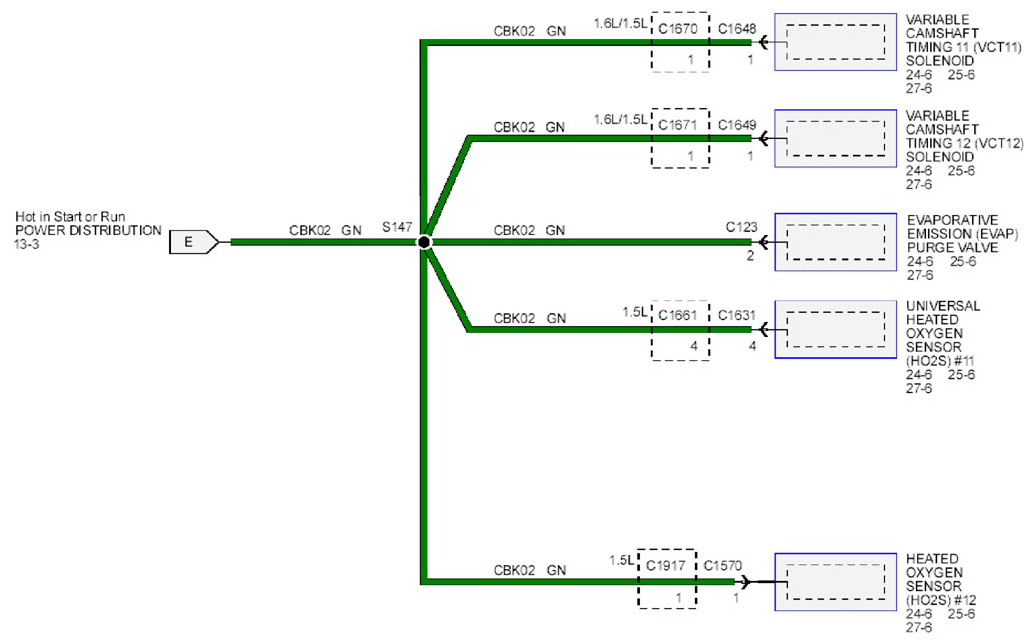

Fig 1: Power Distribution - Wiring Diagram (1.5L, 1.6L, 2.0L) (1 Of 2)
G09264618Courtesy of FORD MOTOR CO.

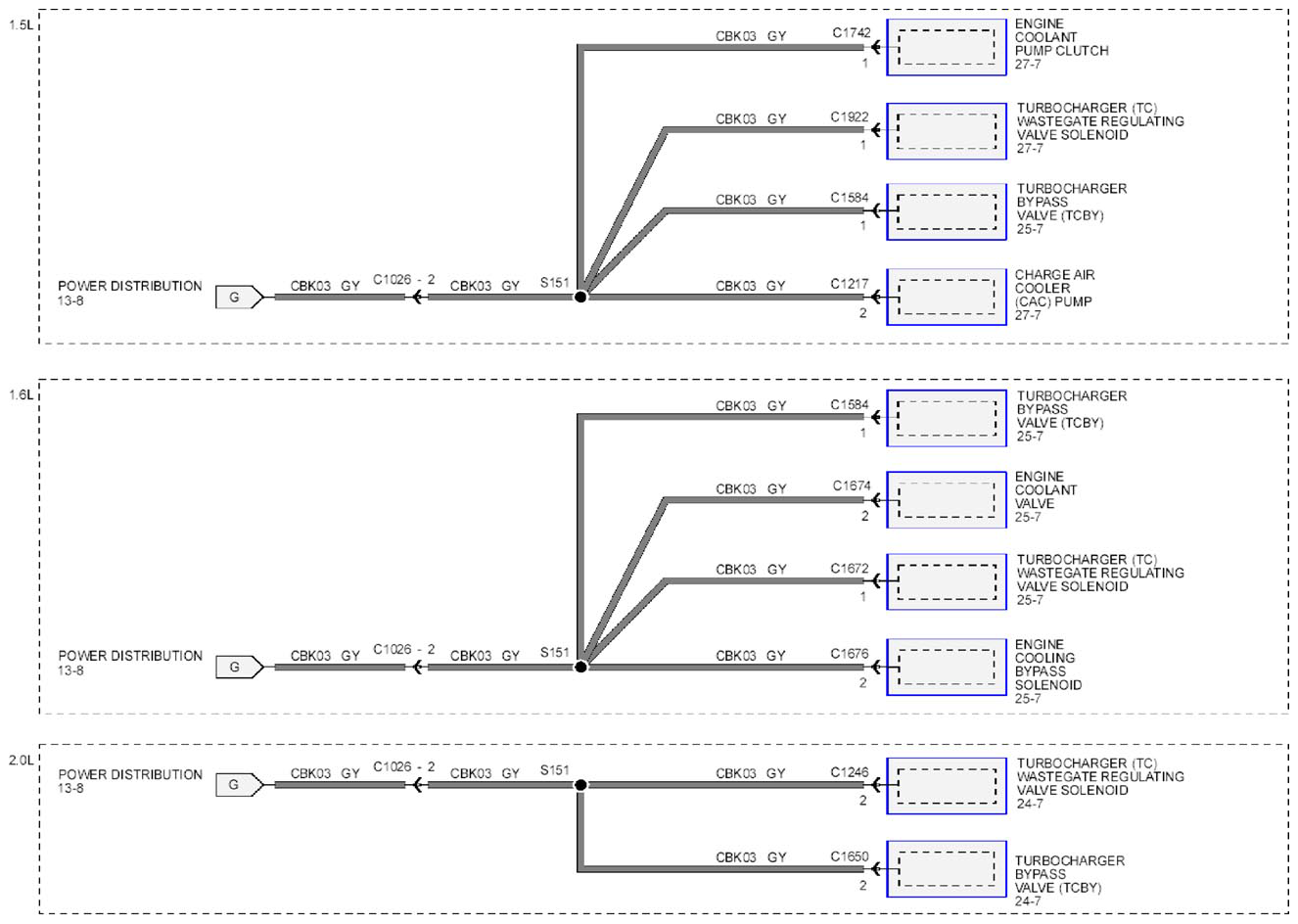

Fig 2: Power Distribution - Wiring Diagram (1.5L, 1.6L & 2.0L) (2 Of 2)
G09264625Courtesy of FORD MOTOR CO.
