Passive Anti-Theft System: Notes

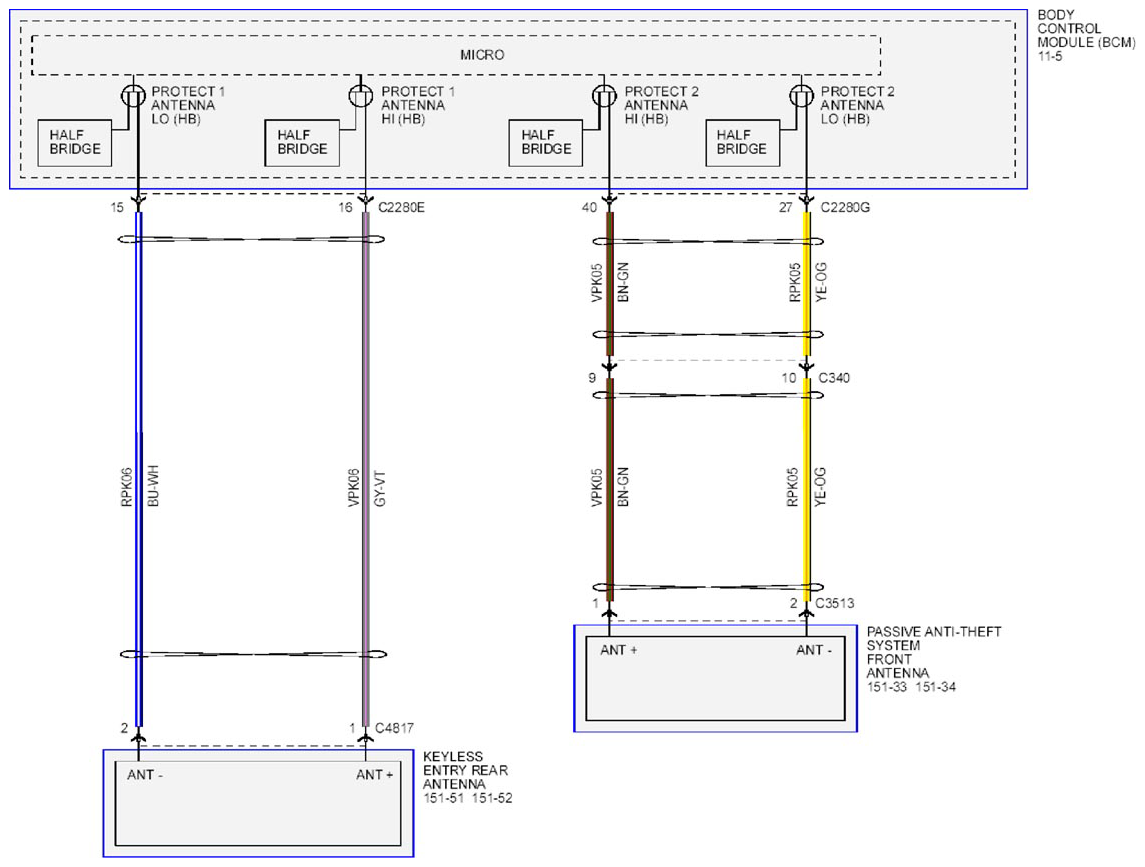

Fig 1: Passive Anti-Theft System - Wiring Diagram

G09264869

Courtesy of FORD MOTOR CO.
