Passive Anti-Theft System: Fusion

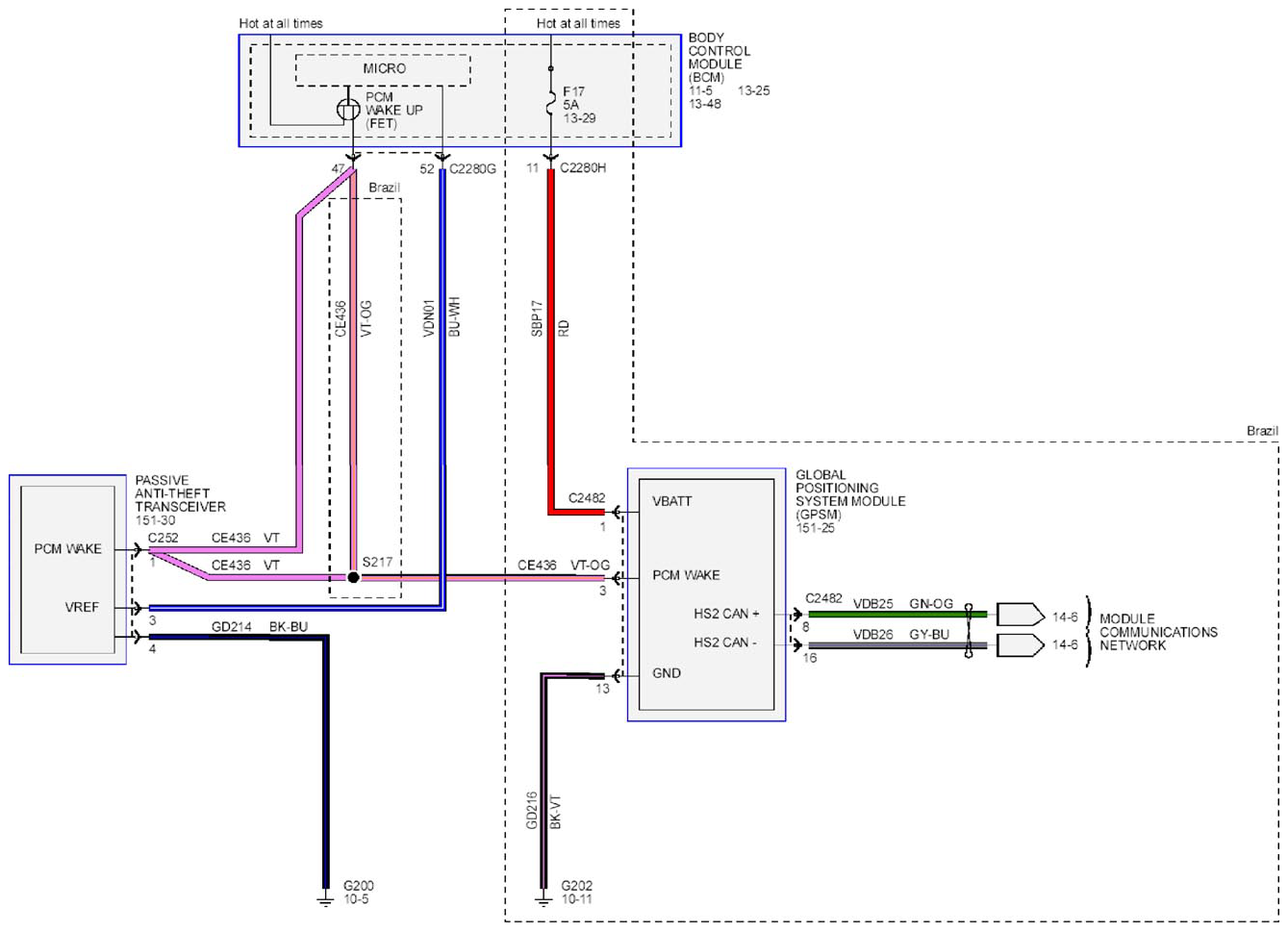

Fig 1: Passive Anti-Theft System - Wiring Diagram - Fusion

G09264868

Courtesy of FORD MOTOR CO.
