Parking, Rear And License Lamps: MKZ

Fig 1: Parking, Rear And License Lamps - MKZ - Wiring Diagram (1 Of 2)
G09264851Courtesy of FORD MOTOR CO.

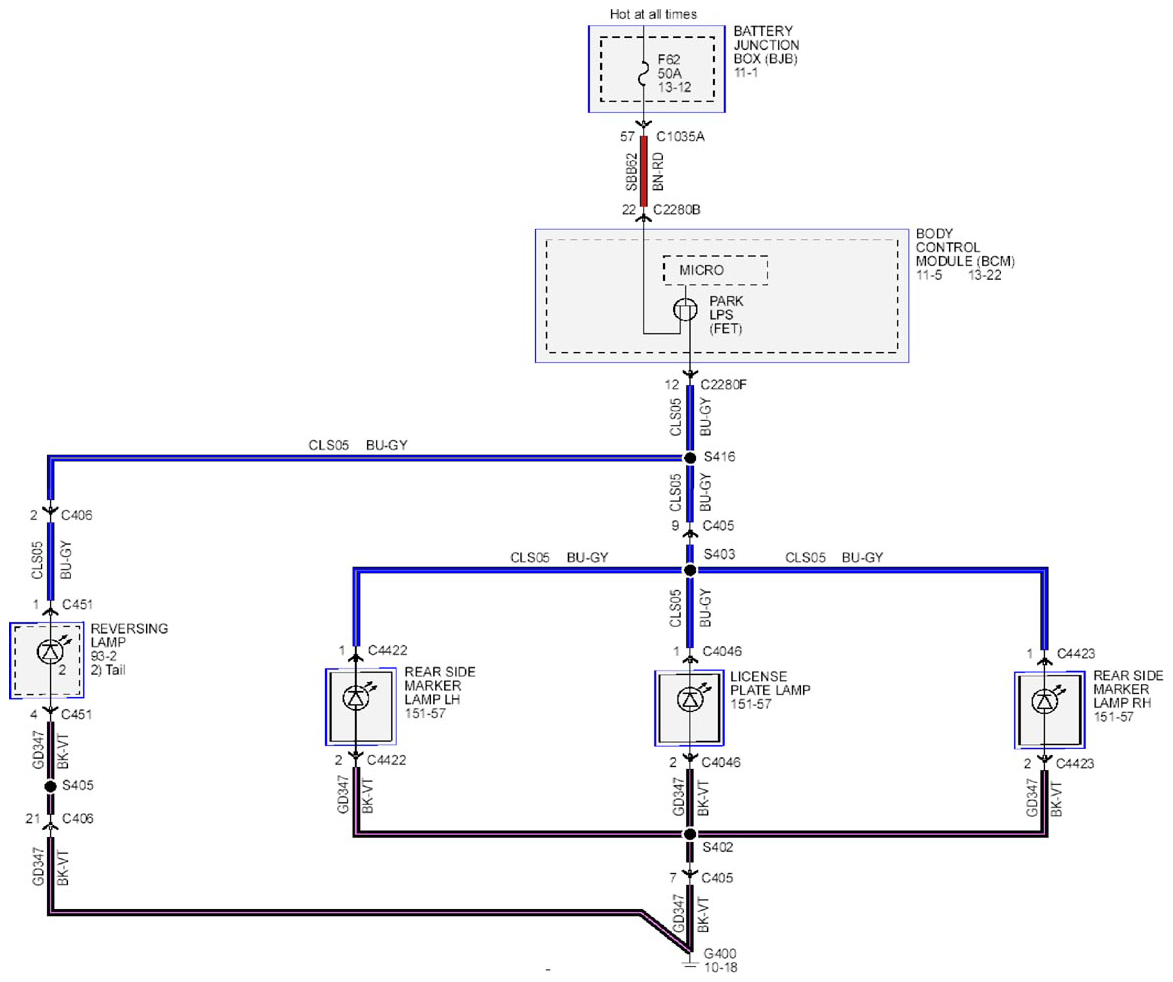

Fig 2: Parking, Rear And License Lamps - MKZ - Wiring Diagram (2 Of 2)
G09264853Courtesy of FORD MOTOR CO.
