Parking, Rear And License Lamps: Fusion

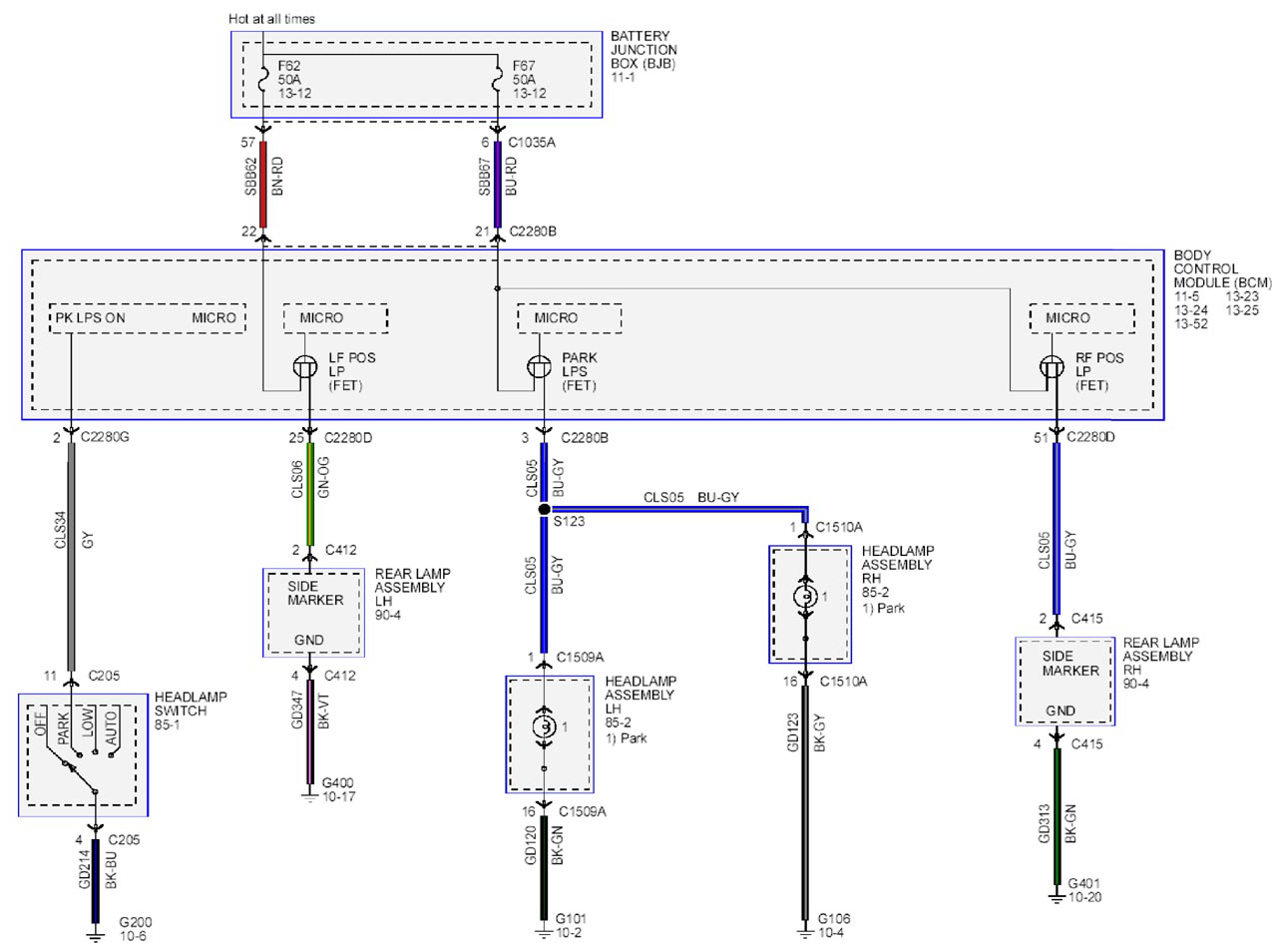

Fig 1: Parking, Rear And License Lamps - Fusion - Wiring Diagram (1 Of 2)
G09264850Courtesy of FORD MOTOR CO.

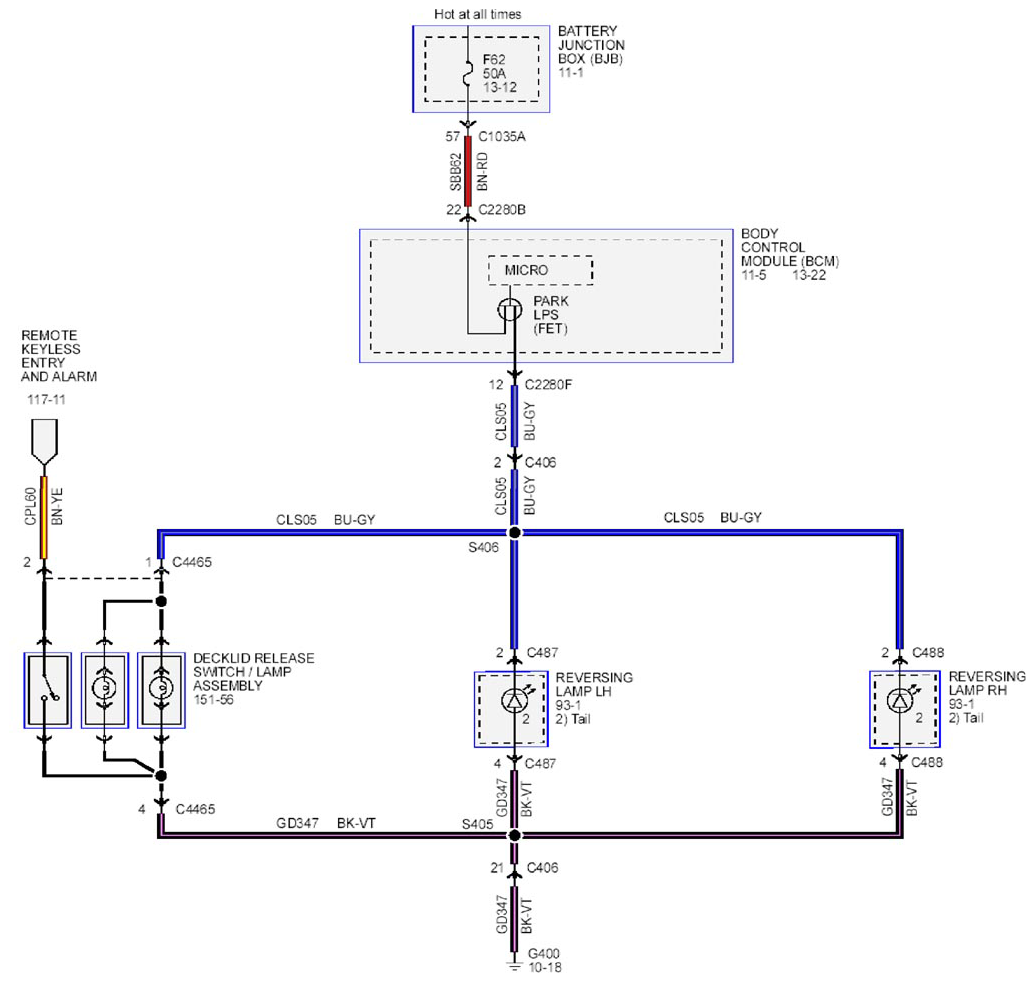

Fig 2: Parking, Rear And License Lamps - Fusion - Wiring Diagram (2 Of 2)
G09264852Courtesy of FORD MOTOR CO.
