Parking Aid
>>
With Rear Video Camera
With Rear Video Camera

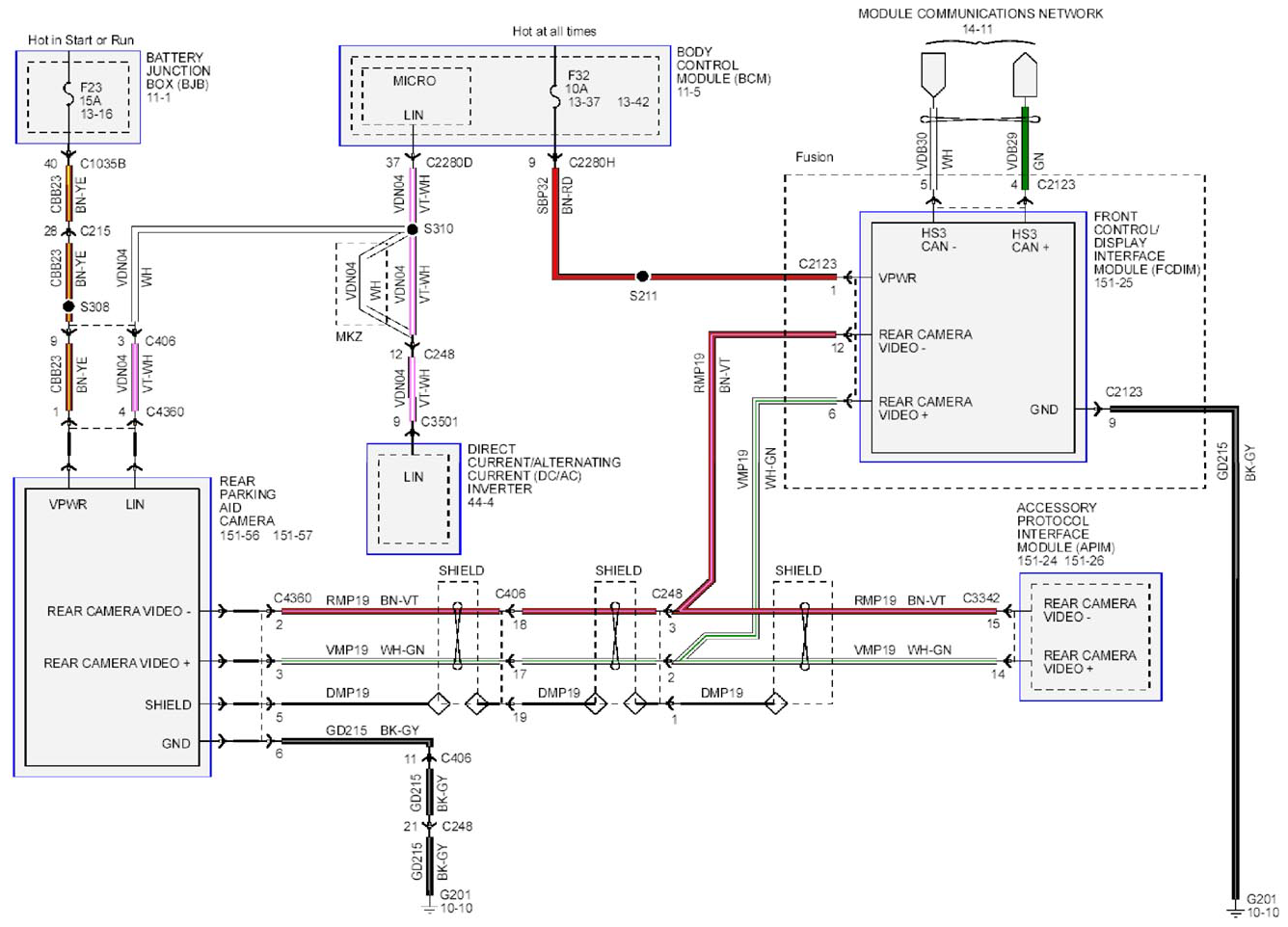

Fig 1: Parking Aid - With Rear Video Camera - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
