Ford
>>
2014
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Parking Aid
>>
With Rear Parking Aid And Active Park Assist
With Rear Parking Aid And Active Park Assist

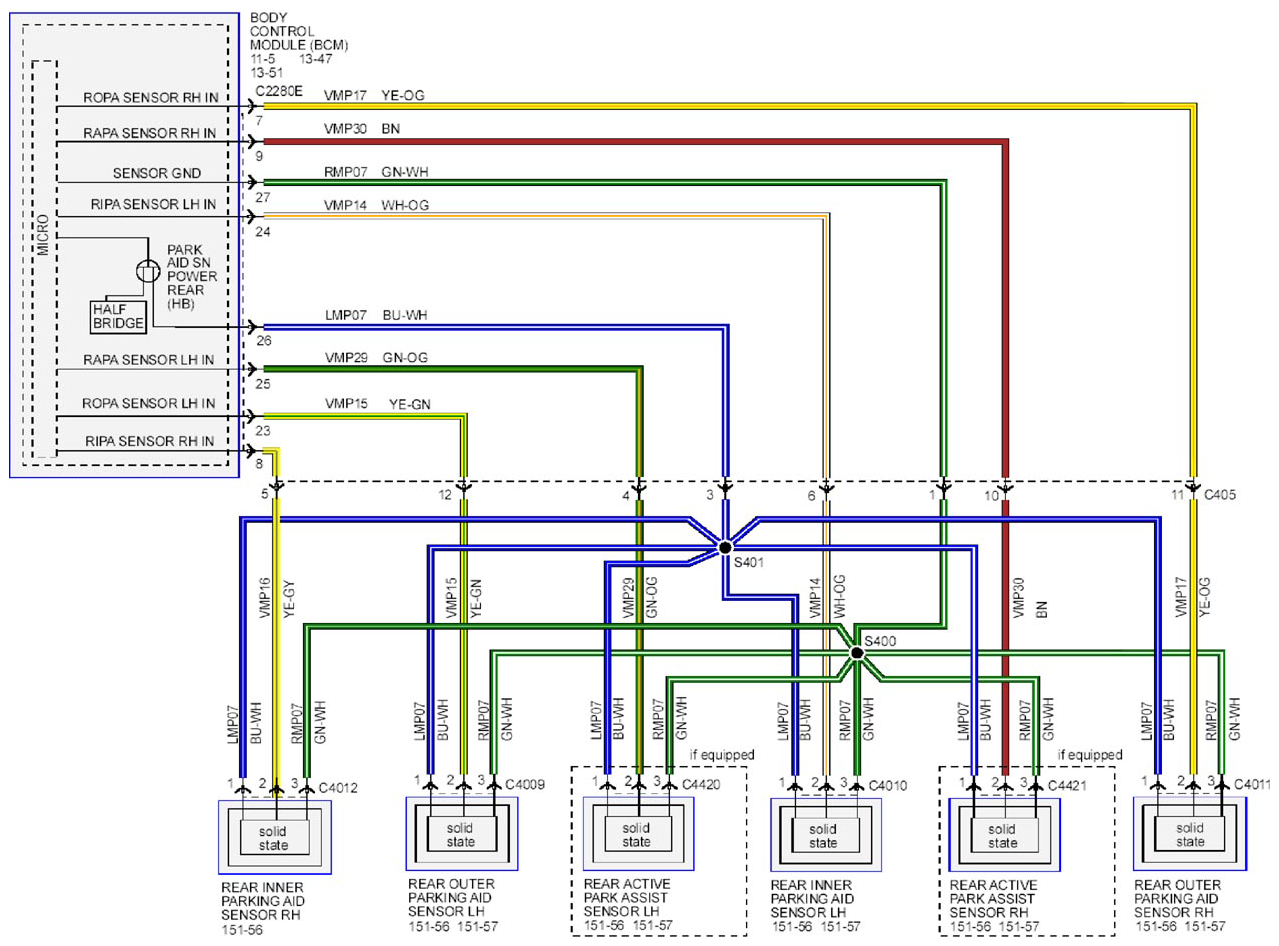

Fig 1: Parking Aid - With Rear Parking Aid And Active Park Assist - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
