With Front Parking And Active Park Assist

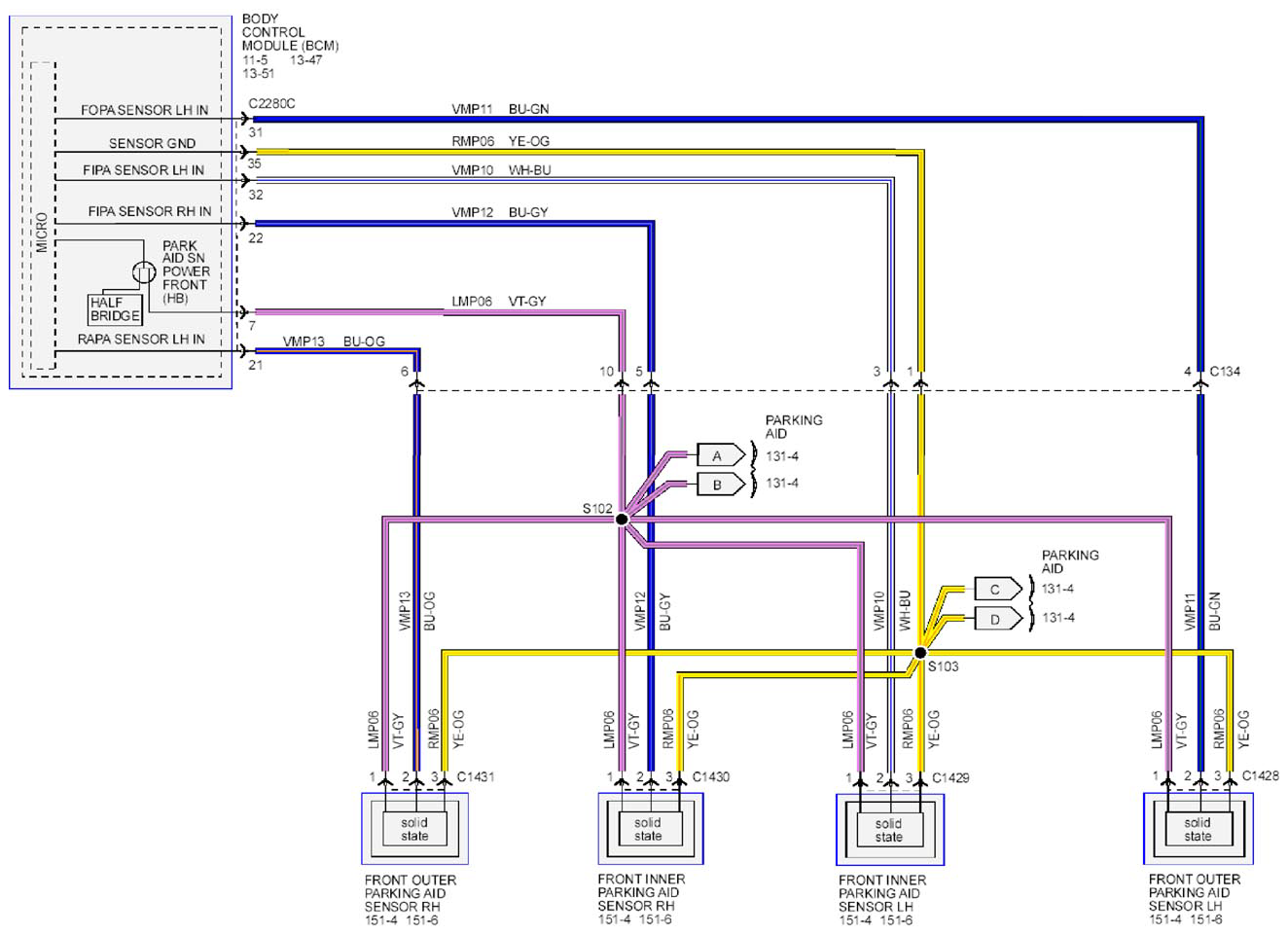

Fig 1: Parking Aid - With Front Parking Aid And Active Park Assist - Wiring Diagram (1 Of 2)
G09264954Courtesy of FORD MOTOR CO.

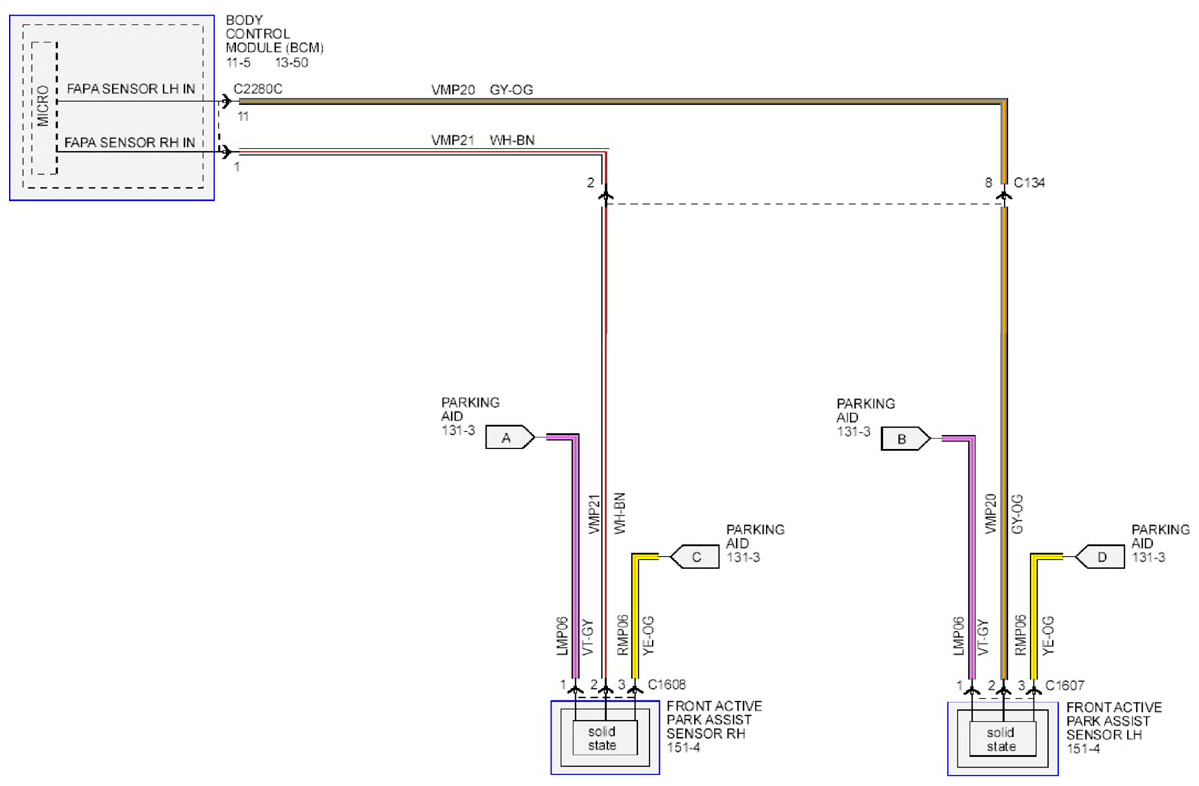

Fig 2: Parking Aid - With Front Parking Aid And Active Park Assist - Wiring Diagram (2 Of 2)
G09264955Courtesy of FORD MOTOR CO.
