Module Communications Network: Notes

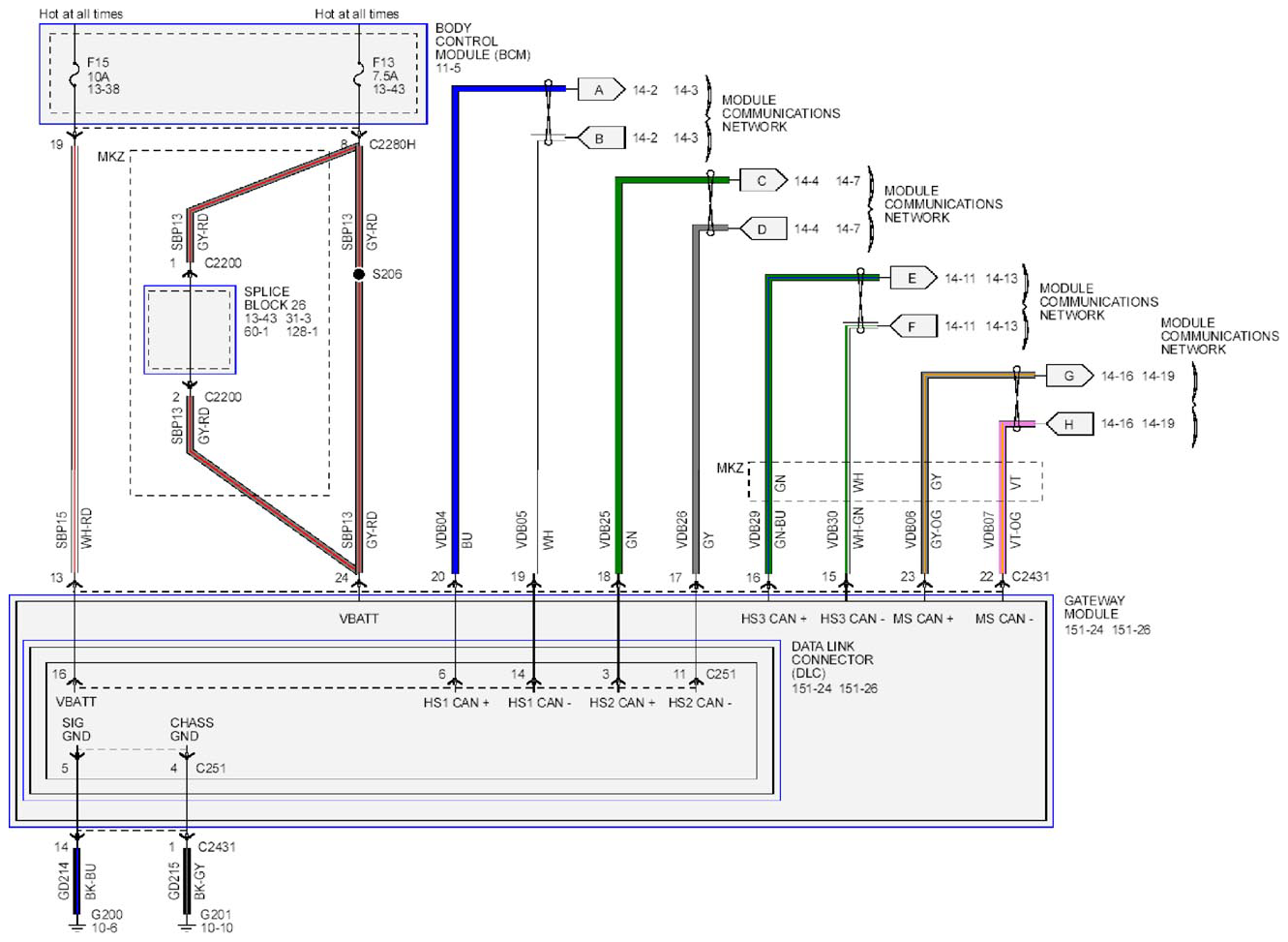

Fig 1: Module Communications Network - Wiring Diagram

G09264668

Courtesy of FORD MOTOR CO.
