MKZ 10-Way Power Seat - Passenger
MKZ 10-Way Power Seat - Passenger

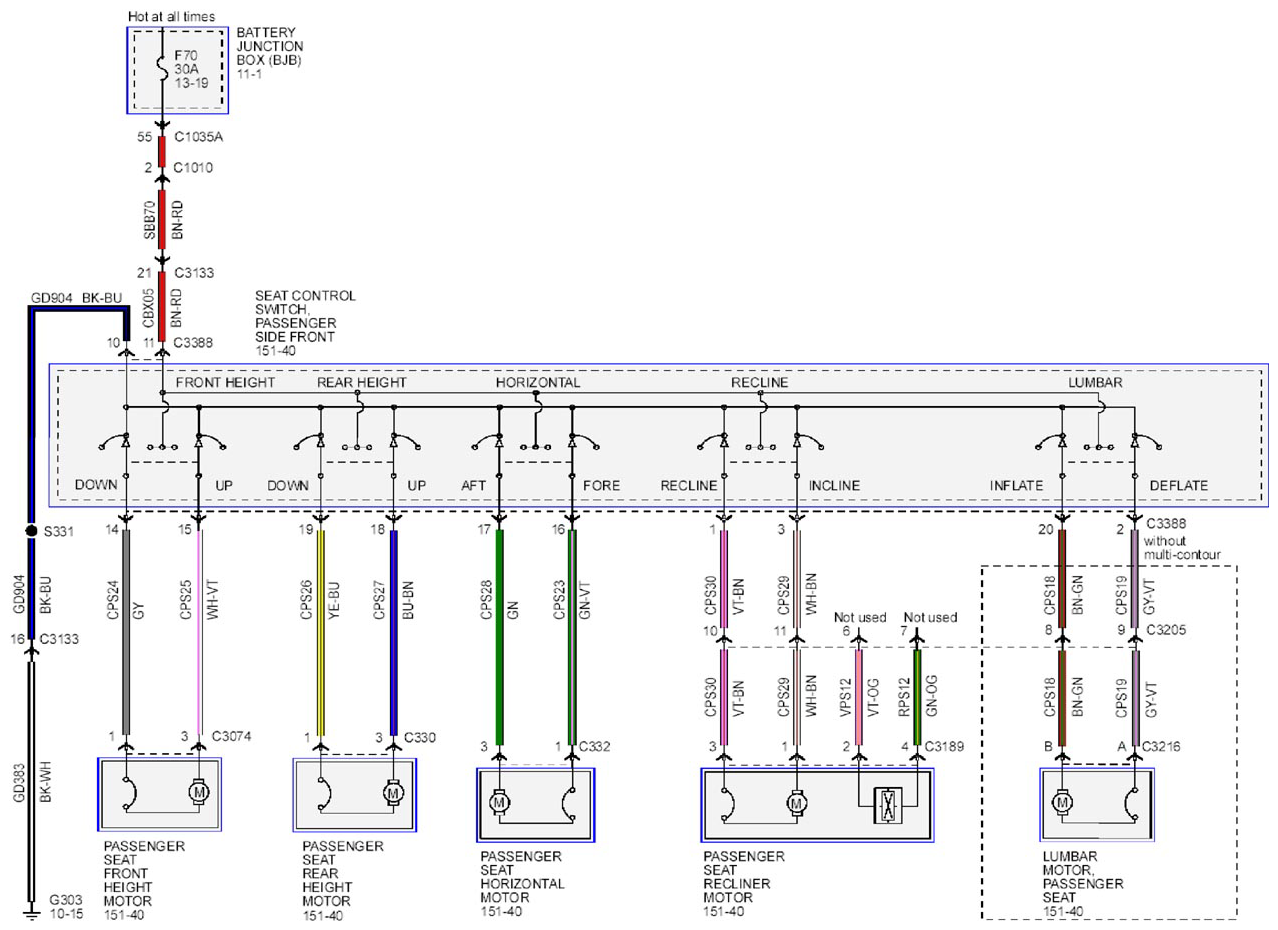

Fig 1: Memory Seats MKZ 10-Way Power Seat - Passenger - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
