10-Way Power Seat With Multi Contour - Passenger

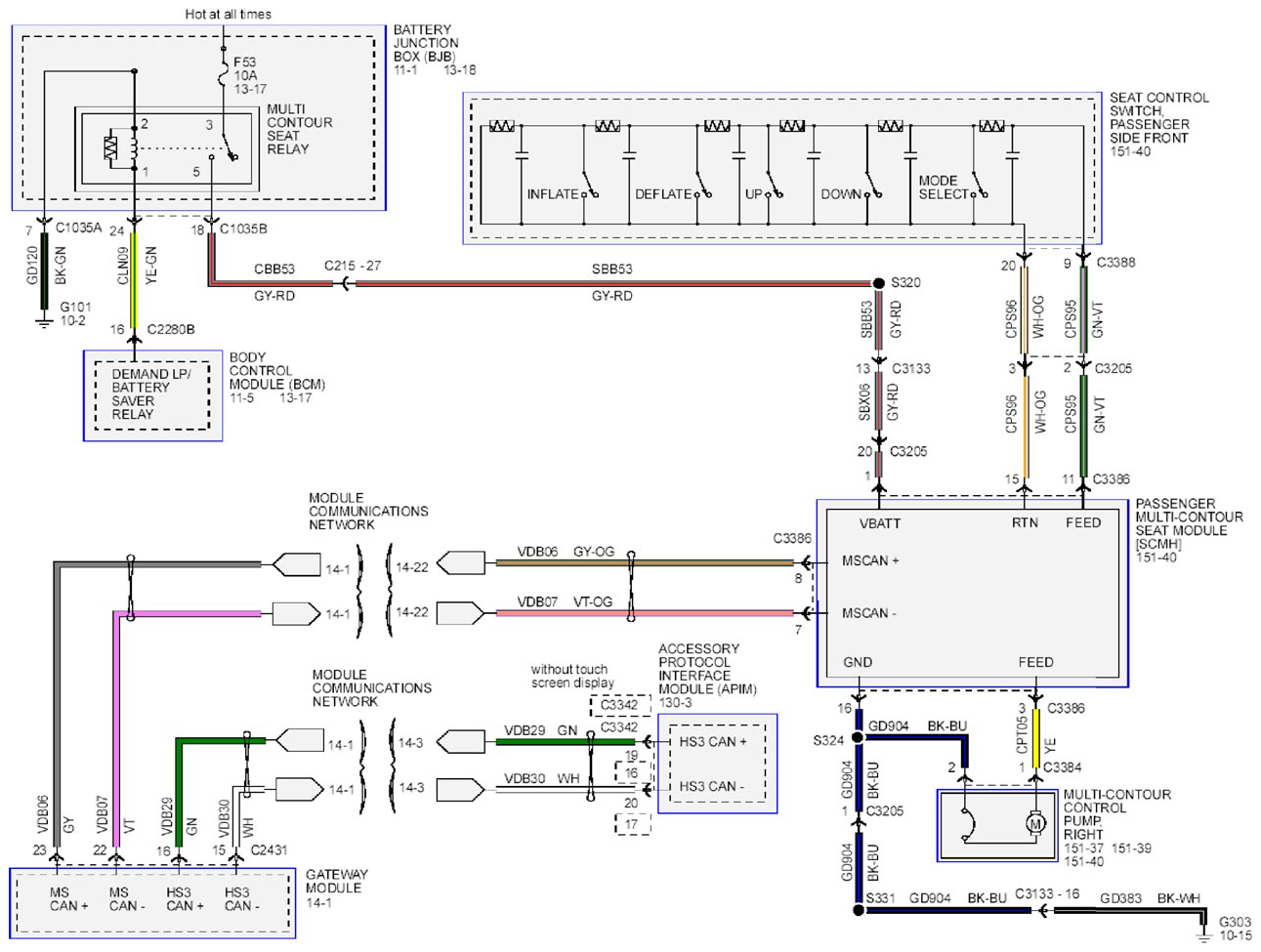

Fig 1: Memory Seats 10-Way Power Seat With Multi Contour - Passenger - Wiring Diagram

G09264912

Courtesy of FORD MOTOR CO.
