10-Way Power Seat With Memory - Driver

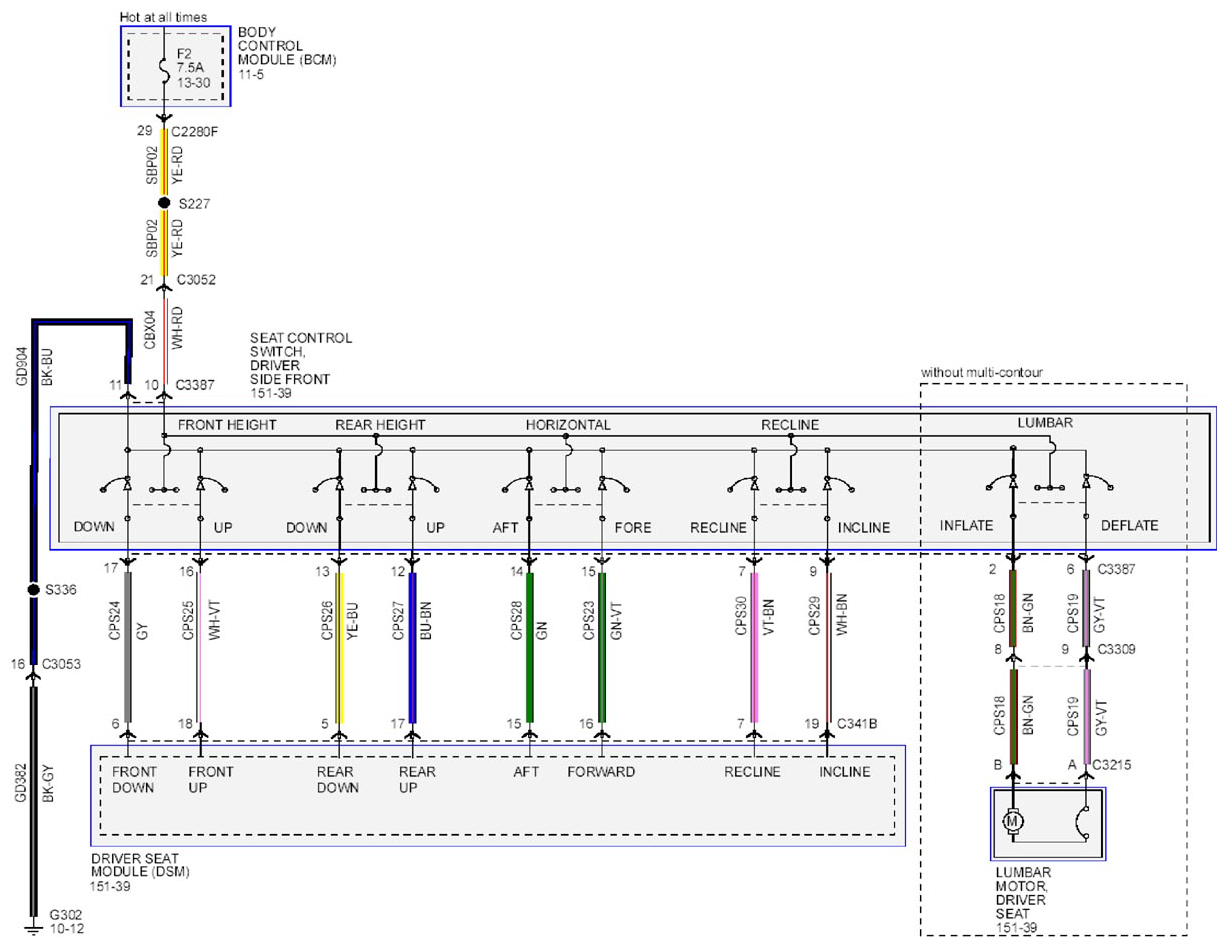

Fig 1: Memory Seats 10-Way Power Seat With Memory - Driver - Wiring Diagram

G09264908

Courtesy of FORD MOTOR CO.
