Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Luggage Compartment
>>
Power Luggage Compartment
Power Luggage Compartment

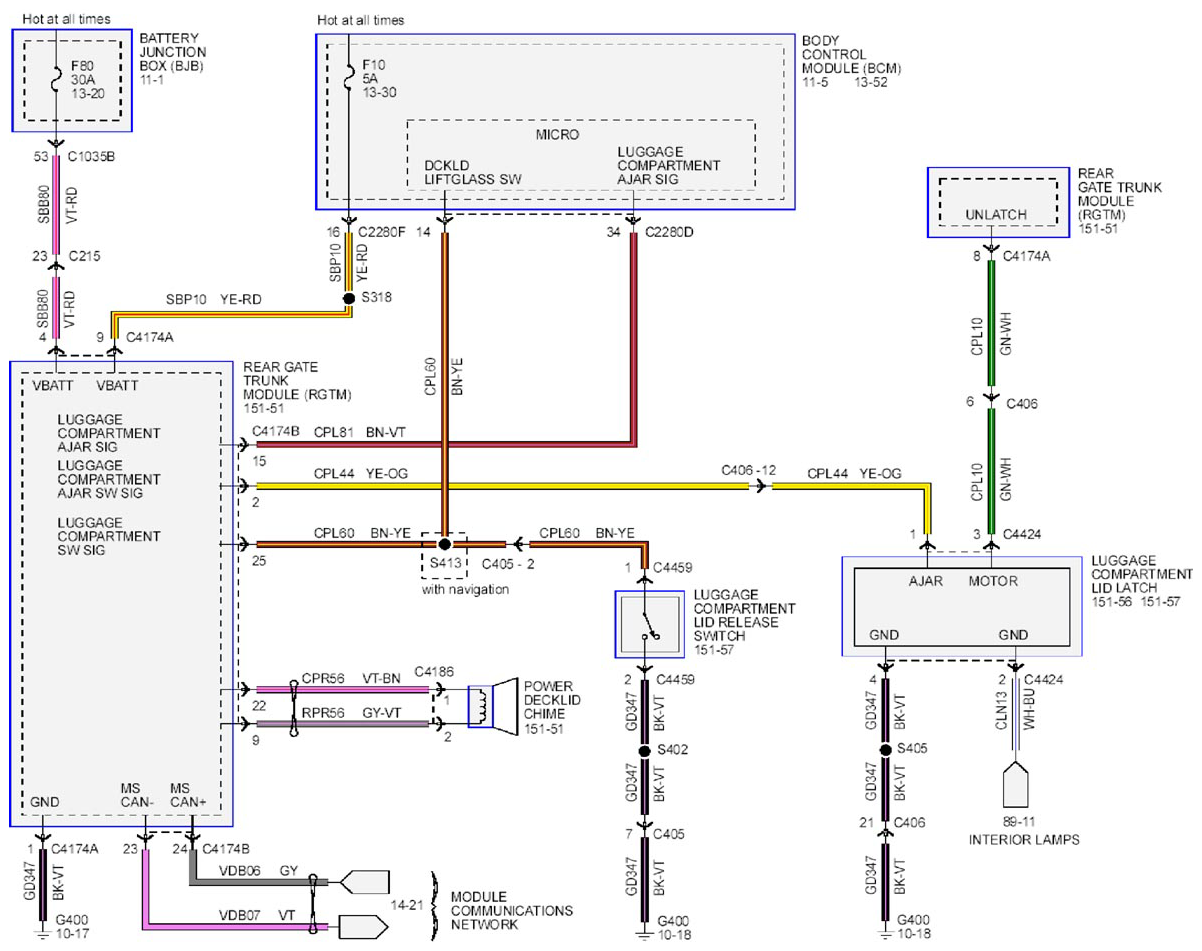

Fig 1: Power Luggage Compartment - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

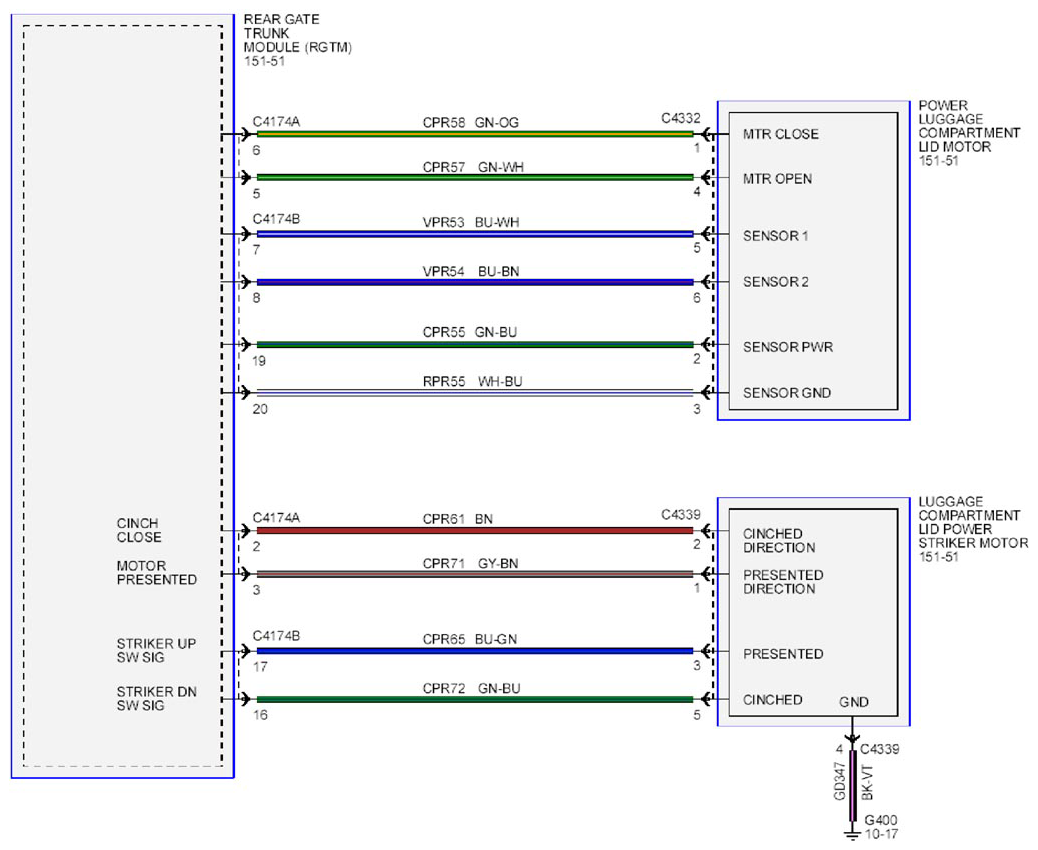

Fig 2: Power Luggage Compartment - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
