MKZ With Manual Luggage Compartment

Fig 1: MKZ With Manual Luggage Compartment - Wiring Diagram
G09264870Courtesy of FORD MOTOR CO.

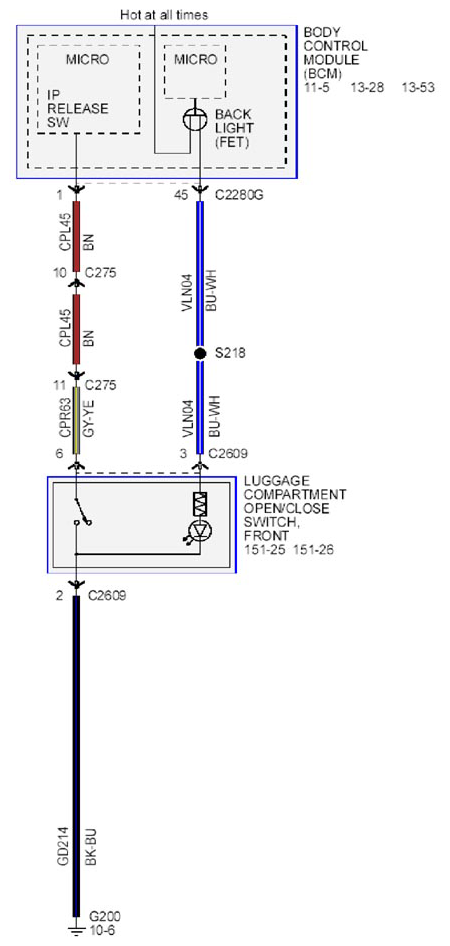

Fig 1: MKZ With Manual Luggage Compartment - Wiring Diagram
G09264875Courtesy of FORD MOTOR CO.
