Interior Lamps: Notes

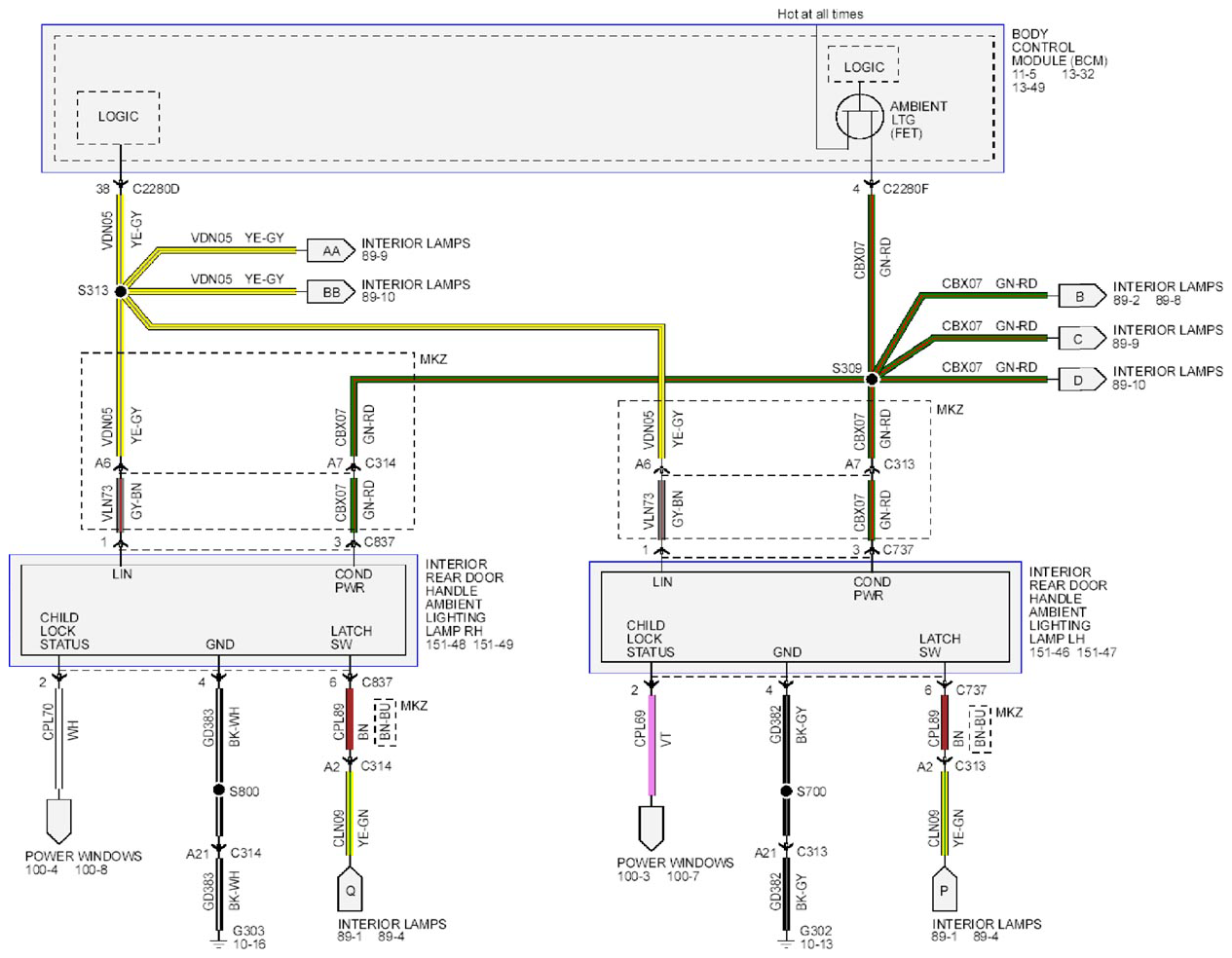

Fig 1: Interior Lamps - Wiring Diagram (1 Of 4)
G09264838Courtesy of FORD MOTOR CO.

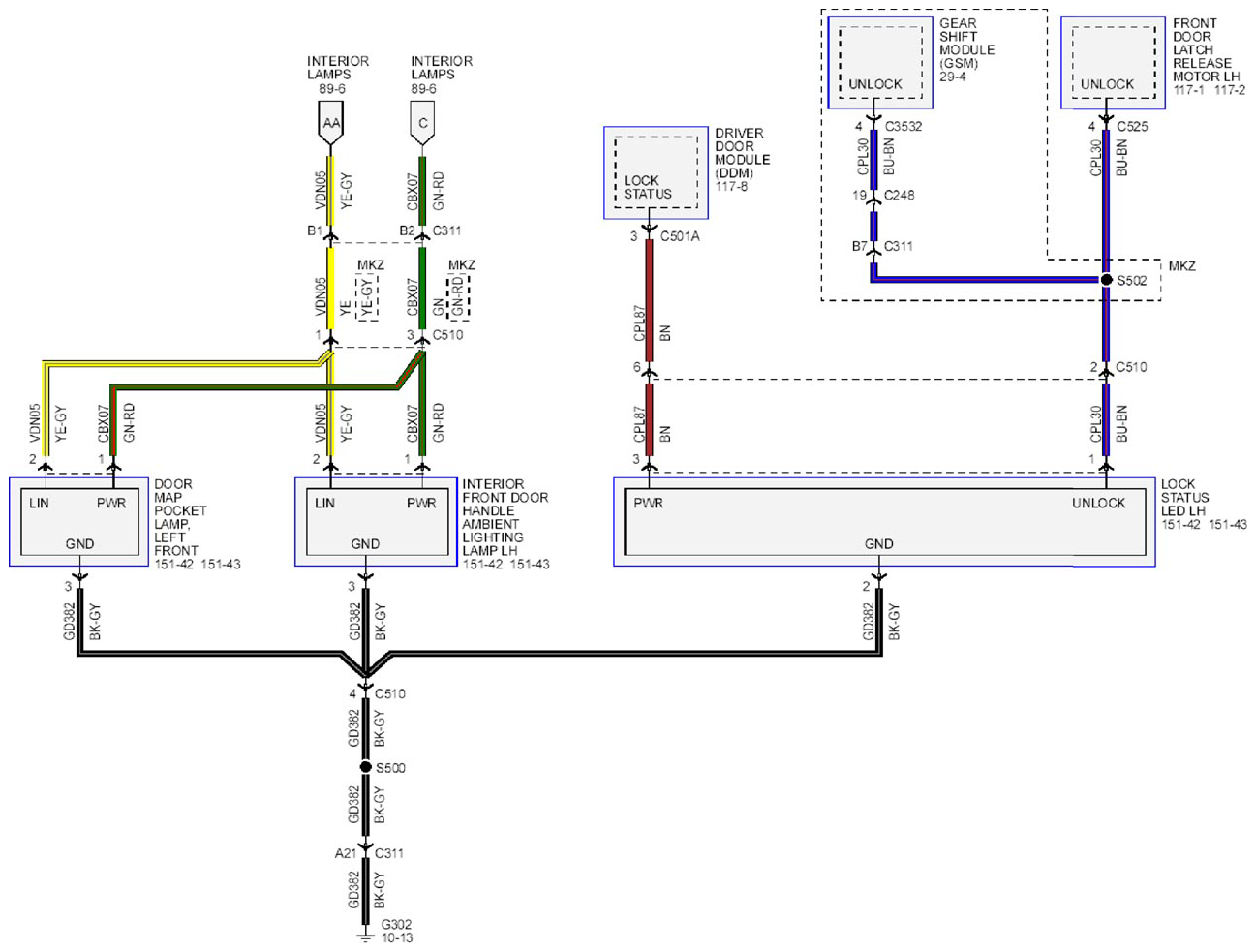

Fig 2: Interior Lamps - Wiring Diagram (2 Of 4)
G09264841Courtesy of FORD MOTOR CO.

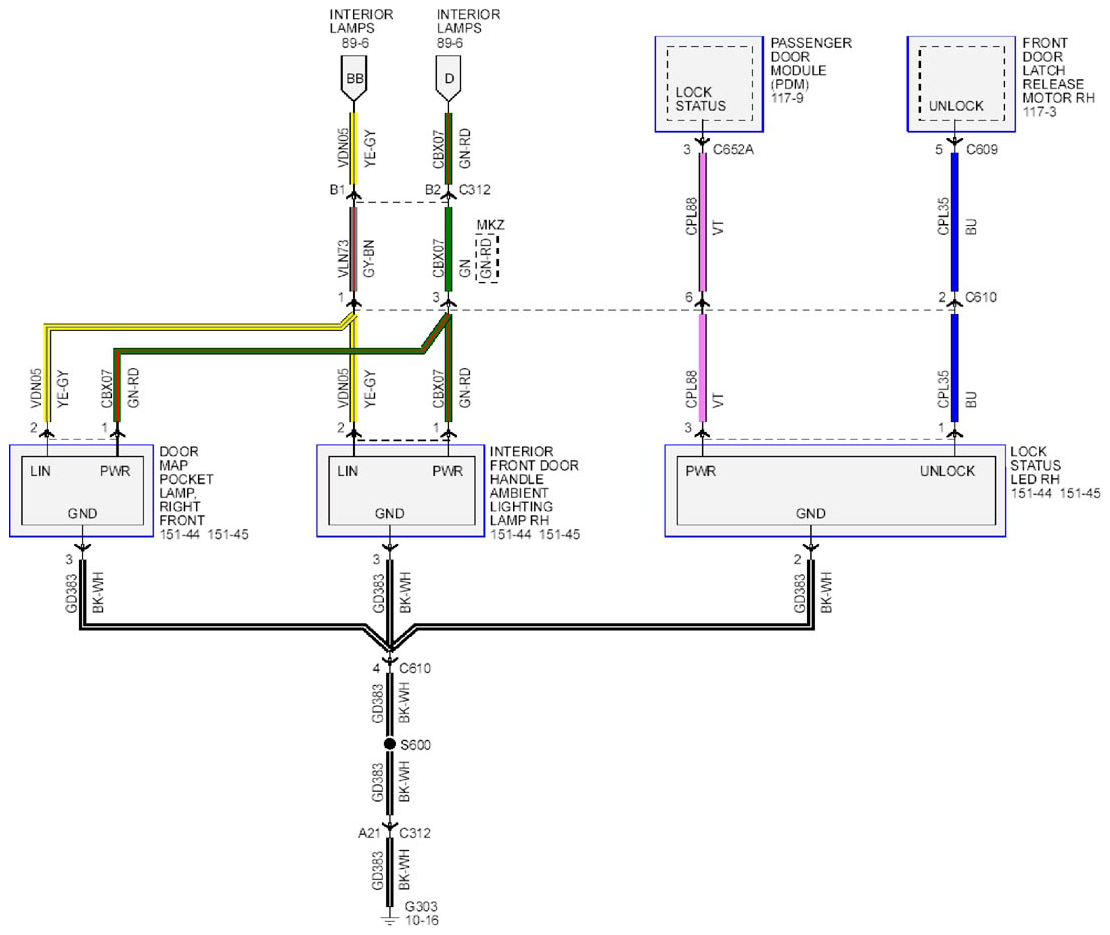

Fig 3: Interior Lamps - Wiring Diagram (3 Of 4)
G09264842Courtesy of FORD MOTOR CO.

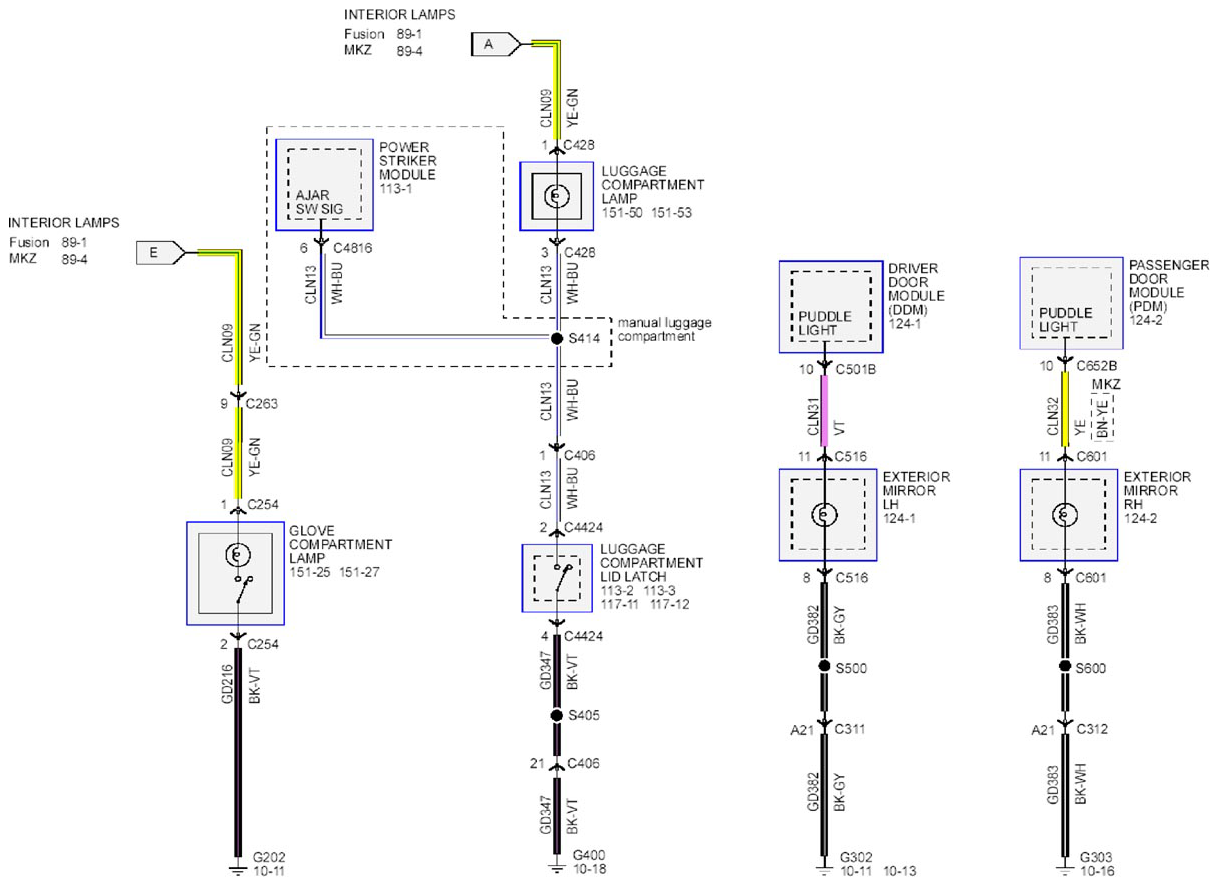

Fig 4: Interior Lamps - Wiring Diagram (4 Of 4)
G09264843Courtesy of FORD MOTOR CO.
